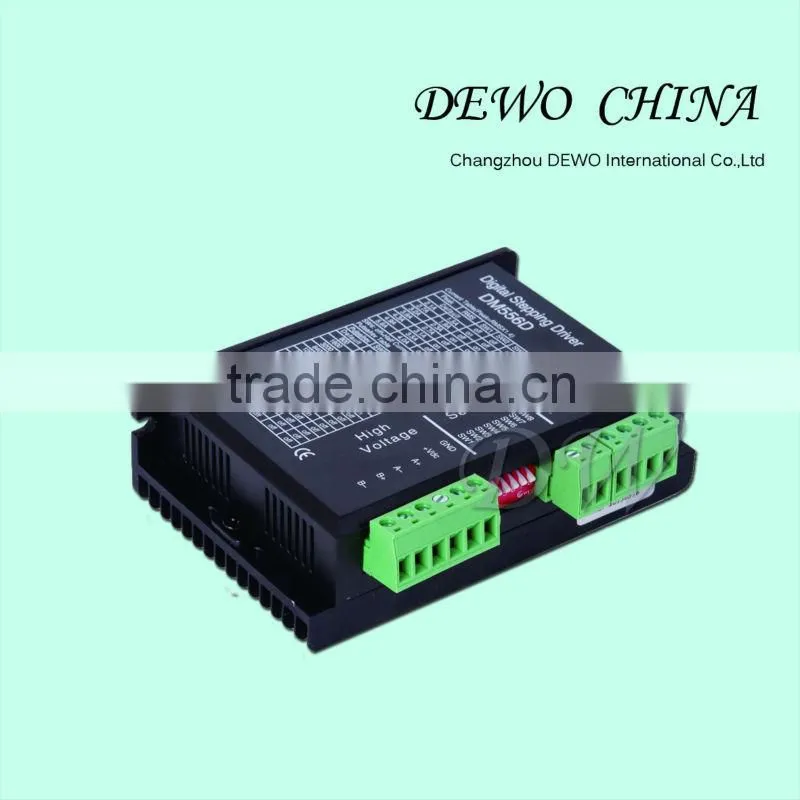

NEMA 23 Stepper Motor Driver

Peak

RMS

SW1

SW2

SW3

Default

OFF

OFF

OFF

2.1A

1.5A

ON

OFF

OFF

2.7A

1.9A

OFF

ON

OFF

3.2A

2.3A

ON

ON

OFF

3.8A

2.7A

OFF

OFF

ON

4.3A

31.A

ON

OFF

ON

4.9A

3.5A

OFF

ON

ON

5.6A

4.0A

ON

ON

ON

Pulse/Rev

SW5

SW6

SW7

SW8

Default

ON

ON

ON

ON

800

OFF

ON

ON

ON

1600

ON

OFF

ON

ON

3200

OFF

OFF

ON

ON

6400

ON

ON

OFF

ON

12800

OFF

ON

OFF

ON

25600

ON

OFF

OFF

ON

51200

OFF

OFF

OFF

ON

1000

ON

ON

ON

OFF

2000

OFF

ON

ON

OFF

4000

ON

OFF

ON

OFF

5000

OFF

OFF

ON

OFF

8000

ON

ON

OFF

OFF

10000

OF

ON

OFF

OFF

20000

ON

OFF

OFF

OFF

40000

OFF

OFF

OFF

OFF

Phenomenon

Reason

Solution

The red indicator is on.

1. A short circuit of motor wires.

Inspect or change wires

2. The external voltage is over or low than the driver’s working voltage.

Adjust the voltage to a reasonable rang

3. Unknown reason

Return the goods

Driver function

Operating instructions

Output

current

setting

Users can set the driver output current by SW1-SW3 three switches.

The setting of the specific output current, please refer to the instructions of the driver panel figure.

Microstep setting

Users can set the driver Microstep by the SW5-SW8 four switches. The setting of the specific Microstep subdivision, please refer to the instructions of the driver panel figure.

Automatic half

current function

Users can set the driver half flow function by SW4. "OFF" indicates the quiescent current is set to half of the dynamic current, that is to say, 0.5 seconds after the cessation of the pulse, current reduce to about half automatically. "ON" indicates the quiescent current and the dynamic current are the same. User can set SW4 to "OFF", in order to reduce motor and driver heating and improve reliability.

Signal interfaces

PUL+ and PUL- are the positive and negative side of control pulse signal; DIR+ and DIR- are the positive and negative side of direction signal; ENA+ and ENA- are the positive and negative side of enable signal.

Motor interfaces

A+ and A- are connected to a phase winding of motor; B+ and B- are connected to another phase winding of motor. If you need to backward, one of the phase windings can be reversed.

Power interfaces

It uses DC power supply. Recommended operating voltage is 24VDC-50VDC, and power consumption should be greater than 100W.

Indicator lights

There are two indicator lights. Power indicator is green. When the driver power on, the green light will always be lit. Fault indicator is red, when there is over-voltage or over-current fault, the red light will always be lit; after the driver fault is cleared, if re-power the red light will be off.

Installation

instructions

Driver dimensions:118×75×32mm, please refer to dimensions diagram. Please leave 10CM space for heat dissipation. During installation, it should be close to the metal cabinet for heat dissipation.
