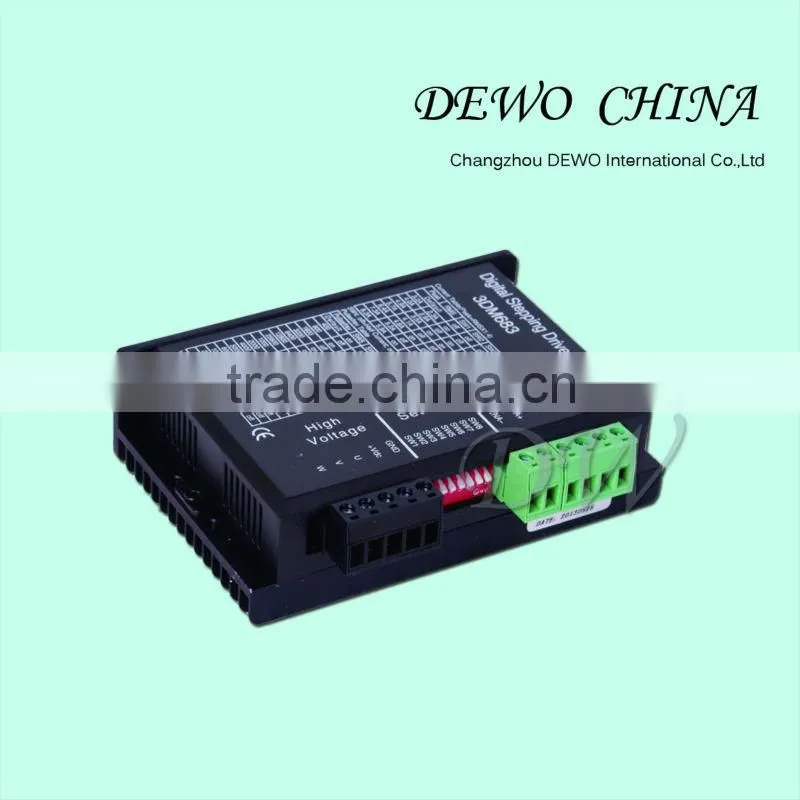

3DM683
Stepper Motor Driver Specification
Overview
The 3DM683 is a new generation high-performance digital stepper driver based on DSP with advanced control algorithm. The motors driven by 3DM683 can run with much smaller noise and much less vibration than other drivers in the market. The 3DM683 possess the feature of lower noise, lower vibration, and lower heating. The 3DM683’s voltage is DC 24V-60V. It is suitable for all the 3-phase hybrid stepper motor whose current is less than 5.6A.There are 16 kinds of microstep of 3DM683. The maximum step number of 3DM683 is 51200 steps/rev (microstep is 1/256 ). Its current range is 3.2A-8.3A, and its output current has 8 stalls. 3DM683 has automatic semi-flow, over-voltage, under voltage and over-current protection function.
Current selection
Peak |
RMS |
SW1 |
SW2 |
SW3 |
Default |
OFF |
OFF |
OFF |
|
3.2A |
2.3A |
ON |
OFF |
OFF |
4.0A |
2.9A |
OFF |
ON |
OFF |
4.9A |
3.5A |
ON |
ON |
OFF |
5.7A |
4.1A |
OFF |
OFF |
ON |
6.4A |
4.6A |
ON |
OFF |
ON |
7.3A |
5.2A |
OFF |
ON |
ON |
8.3A |
5.9A |
ON |
ON |
ON |
Microstep selection
Pulse/Rev |
SW5 |
SW6 |
SW7 |
SW8 |
Default |
ON |
ON |
ON |
ON |
800 |
OFF |
ON |
ON |
ON |
1600 |
ON |
OFF |
ON |
ON |
3200 |
OFF |
OFF |
ON |
ON |
6400 |
ON |
ON |
OFF |
ON |
12800 |
OFF |
ON |
OFF |
ON |
25600 |
ON |
OFF |
OFF |
ON |
51200 |
OFF |
OFF |
OFF |
ON |
1000 |
ON |
ON |
ON |
OFF |
2000 |
OFF |
ON |
ON |
OFF |
4000 |
ON |
OFF |
ON |
OFF |
5000 |
OFF |
OFF |
ON |
OFF |
8000 |
ON |
ON |
OFF |
OFF |
10000 |
OF |
ON |
OFF |
OFF |
20000 |
ON |
OFF |
OFF |
OFF |
40000 |
OFF |
OFF |
OFF |
OFF |
Default: The pulse can be customized according to customers’ requirements
