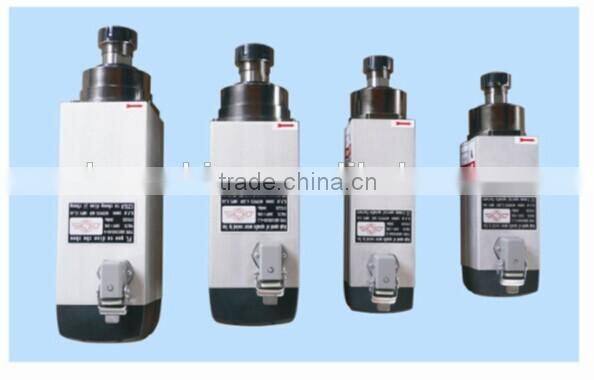

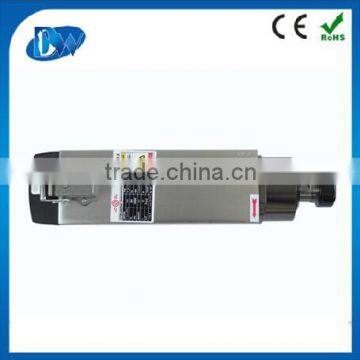

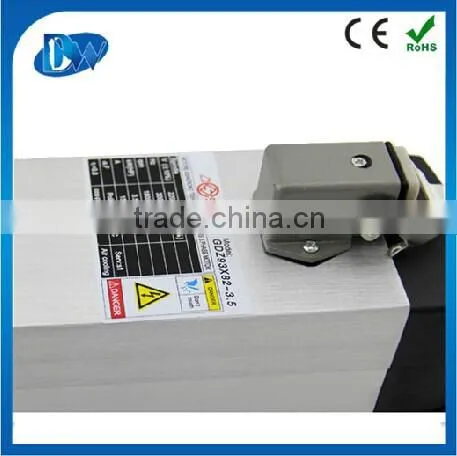

3.5kw Air Cooling Spindle Motor for Woodworking Cnc Router Cnc Spindle Motor
US$ 480 - 565
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
GDZ
Model Number:
GDZ93x82-3.5
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.5kw Water Cooled Spindle Motor for Cnc ,high Speed Spindle Motor 1500wUS$ 110 - 140MOQ: 1 Piece -
Sculpture Machine 2.2 kw Air Cooling Spindle Motor for Woodworking Cnc RouterUS$ 322 - 467MOQ: 1 Piece
-
Sculpture Machine 2.2 kw Air Bearing Spindle for Woodworking Cnc Router Quality ChoiceUS$ 322 - 467MOQ: 1 Piece
-
5.5kw Water Cooled Spindle Motor Water Cooled Cnc Router Spindle Motor Multi Spindle Drill Head Quality ChoiceUS$ 225 - 274MOQ: 1 Piece
-
3kw Water Cooled Cnc Router Spindle Motor Cheap PriceUS$ 225 - 274MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
GDZ
Model Number
GDZ93x82-3.5
Application
Milling
Maximum Torque
3.5kw
Drive
Motor
Operating Speed
18000r/min
1. Imported bearings; bearings with dust cover, more secure
2. Using grinding process, can improve motor concentricity and prolong life
3. Air-cooled motor, sculpture forceful, high precision, long life
The dimension of air spindle motor
Technical date and models:
| spindle type | speed | rated power | voltage | current | frequency | Demensions(mm) | Joint of nose | cool way | ||||||||||||||
| (r/min) | (kw) | (V) | (A) | (Hz) | L | L1 | L2 | L3 | L4 | L5 | L6 | H | H1 | X-M | collect | |||||||
| GDZ75x80-700 | 20000 | 0.7 | 220 | 4 | 333 | 206 | 27 | 40 | 40 | 22 | 32 | 80 | 95 | 41 | 6-M6 | ER11 | air | |||||
| GDZ93x82-2.2 | 18000 | 2.2 | 380 220 | 5.5 10 | 300 | 285 | 37 | 90 | |
30 | 76 | 82 | 120 | 42 | 4-M6 | ER25 | air | |||||
| GDZ93x82-3.5 | 18000 | 3.5 | 380 220 | 8.8 15 | 300 | 327 | 37 | 90 | |
30 | 76 | 82 | 120 | 42 | 4-M6 | ER25 | air | |||||
| GDZ120x103-4.5 | 18000 | 4.5 | 380 | 9.5 | 300 | 328 | 25 | 60 | 60 | 36 | 91 | 103 | 146 | 60 | 6-M8 | ER32 | air | |||||
| GDZ120x103-6 | 18000 | 6 | 380 | 12.6 | 300 | 371 | 40 | 60 | 60 | 36 | 91 | 103 | 146 | 60 | 6-M8 | ER32 | air | |||||
Suitful VFD (220VAC or 380VAC)
Suitful collet (ER serise)
Water pump
Bracket holder:
