Home > Products > spindle motor > sculpture machine 2.2 kw air bearing spindle for woodworking cnc router Quality Choice

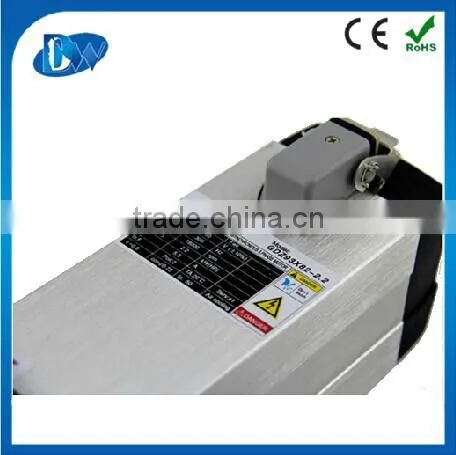

sculpture machine 2.2 kw air bearing spindle for woodworking cnc router Quality Choice
USD $322 - $467
/ Piece
1 Piece(Min.Order)
- 50000 Piece / Pieces per Month
- shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
High precision spindle repaire, We are factory : offer High precision spindle repaire service
-
High precision spindle repaire, We are factory : offer High precision spindle repaire service
-
Ready to ship cnc ac servo drive TAR475CH-10-A66 frame spindle motor fan fanuc
-
new type Engraving machine accessories Changsheng brand air-cooled square spindle motor output power spindle motor
-
Engraving machine accessories Changsheng brand air-cooled square spindle motor 4.5kw/er32
-
Engraving machine accessories Changsheng 80mm circular air-cooled spindle motor 2.2kW Changsheng spindle ER20 / 220V
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | GDZ | Model Number: | GDZ93x82-2.2 |
| Application: | Grinding | Maximum Torque: | 2.2kw | Drive: | Motor |
| Operating Speed: | 18000r/min |
Product Description
1. Imported bearings; bearings with dust cover, more secure
2. Using grinding process, can improve motor concentricity and prolong life
3. Air-cooled motor, sculpture forceful, high precision, long life
The dimension of air spindle motor
Technical date and models:
| spindle type | speed | rated power | voltage | current | frequency | Demensions(mm) | Joint of nose | cool way | ||||||||||||||
| (r/min) | (kw) | (V) | (A) | (Hz) | L | L1 | L2 | L3 | L4 | L5 | L6 | H | H1 | X-M | collect | |||||||
| GDZ75x80-700 | 20000 | 0.7 | 220 | 4 | 333 | 206 | 27 | 40 | 40 | 22 | 32 | 80 | 95 | 41 | 6-M6 | ER11 | air | |||||
| GDZ93x82-2.2 | 18000 | 2.2 | 380 220 | 5.5 10 | 300 | 285 | 37 | 90 | | 30 | 76 | 82 | 120 | 42 | 4-M6 | ER25 | air | |||||
| GDZ93x82-3.5 | 18000 | 3.5 | 380 220 | 8.8 15 | 300 | 327 | 37 | 90 | | 30 | 76 | 82 | 120 | 42 | 4-M6 | ER25 | air | |||||
| GDZ120x103-4.5 | 18000 | 4.5 | 380 | 9.5 | 300 | 328 | 25 | 60 | 60 | 36 | 91 | 103 | 146 | 60 | 6-M8 | ER32 | air | |||||
| GDZ120x103-6 | 18000 | 6 | 380 | 12.6 | 300 | 371 | 40 | 60 | 60 | 36 | 91 | 103 | 146 | 60 | 6-M8 | ER32 | air | |||||
Suitful VFD (220VAC or 380VAC)
Suitful collet (ER serise)
Water pump
Bracket holder:
