Hexagon Shape Sharp Corner Radius Seamless Steel Pipes & Tubes
- 2000 Ton / Tons per Month
- FOB Tianjin
- T/T Credit Card
Product Details
Thickness: | 1, 10 | ||||
Section Shape: | Round | Outer Diameter: | 15 - 80 mm | Place of Origin: | Hebei, China |
Secondary Or Not: | Non-secondary | Application: | Structure Pipe | Technique: | Cold Rolled |
Certification: | Other, ISO9001:2008 | Surface Treatment: | Other, oil protected | Special Pipe: | Thick Wall Pipe |
Alloy Or Not: | Non-alloy |
Product Description

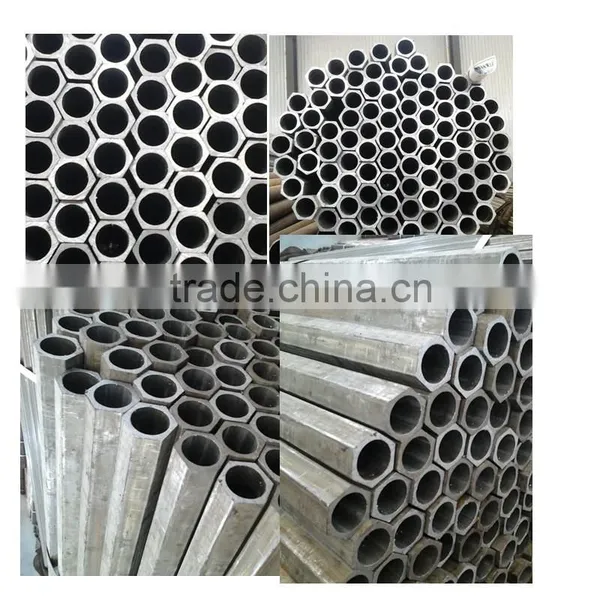

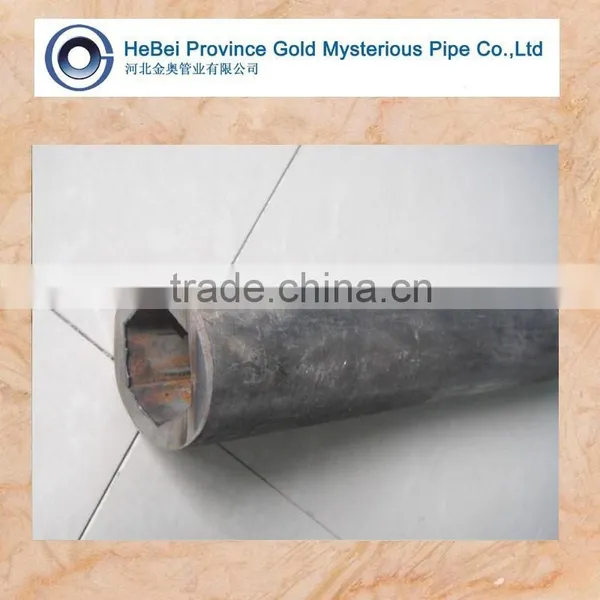

Hexagon Shape Sharp Corner /Radius "R"Seamless Steel Pipes & Tubes
NOTE THE RADIUS "R" CORNER.
Shape: The tubes shall be furnished in the following shapes, as specified by the purchaser: round, square,HEXAGON,rectangular and special sections.
Chemical Composition& Mechanical Properties(Type: Cold Drawn Seamless Mechanical/CDS)
Steel grade | Chemical composition, as a percentage by mass | |||||
Symbol | Material number | C max. | Si max. | Mn | P max. | S max. |
St 35 | 1.0308 | 0.17 | 0.35 | <=0.40 | 0.025 | 0.025 |
St 45 | 1.0408 | 0.21 | 0.35 | <=0.40 | 0.025 | 0.025 |
St 52 | 1.0580 | 0.22 | 0.55 | <=1.60 | 0.025 | 0.025 |
The following alloying elements may be added: Nb: <=0,03%; Ti: <=0,03%; V: <=0,05%; Nb + Ti + V: <=0,05%. |
Final supply conditions
Designation | Symbol | Description |
Cold finished (hard) | BK | Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation. |
Cold finished (soft) | BKW | The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding). |
Cold finished and stress-relieved | BKS | Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree. |
Annealed | GBK | The last cold forming process is followed by annealing in a controlled atmosphere. |
Normalized | NBK | The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere. |
other shape :
CORNER/R-ANGLE 2degree/0.079"
CORNER/R-ANGLE 1degree/0.039'
Normal PACKING: steel trip +woven bag
It is within 30days for the purchasing and production time with container order and 10days for the sample.
Usually 5 ton for each size, please contact us when you are trying to purchase less than container load
FOB Tianjin, CIF and CNF Your destination
** What is your payment term?
Payment is 30% deposit, 70% before shipment
The samples are free if they are common sizes, You need to pay for the freight .
** How do you guarantee the quality of the products?
All of our procedures are strictly operated under the ISO 9001:2008, and there are as many as 6 times of test during the production of each product to ensure the quality.
** How do you to package the product?
Wrapped with polywoven bags, we use steel belt to pack the outside, polywooden cases or wooden boxes for thin wall thickness can be offered if required
**How about the Third Party Inspection ?
We have been working with DNV,TUV,SGS,BV,CO,Lloyd's etc;
