Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Pipe & Tube > High Precision Tube, Seamless Precision Steel Tube

High Precision Tube, Seamless Precision Steel Tube

High Precision Tube, Seamless Precision Steel Tube thumbnail-3

High Precision Tube, Seamless Precision Steel Tube thumbnail-4

High Precision Tube, Seamless Precision Steel Tube photo-1

High Precision Tube, Seamless Precision Steel Tube photo-2

High Precision Tube, Seamless Precision Steel Tube photo-3

High Precision Tube, Seamless Precision Steel Tube photo-4

US$ 700 - 1,100 MOQ: 5 Tons

Key Specifications

Get Latest Price

Standard:

Grade:

Thickness:

1, 12

Contact Supplier Request Quote Chat Now

Hebei Province Gold Mysterious Pipe Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Thickness 1, 12

Section Shape Round

Outer Diameter 15 - 80 mm

Place of Origin Hebei, China

Secondary Or Not Non-secondary

Application Structure Pipe

Technique Cold Drawn

Certification Other, ISO9001

Surface Treatment Other, oiled

Special Pipe Thick Wall Pipe

Alloy Or Not Non-alloy

High Precision Tube, Seamless Precision Steel Tube

Product Description

1.1 Functional & specifications

ANALYSIS

Carbon (C)	Manganese (Mn)	Silicon (Si)	Chromium (Cr)	Molybdenum (Mo)	Phosphorus (P) Max	Sulfur (S) Max
0.38-0.43	0.75-1	0.15-0.35	0.8-1.1	0.15-0.25	0.035	0.04

Name	Cold Rolled Precision Steel Tube/Seamless Steel Pipe
Standard	Meet or exceed ASTM,ASME,API,ANSI and DIN standards. ASTM A106/A179/A192/A210/A213/A519 etc. DIN2391/DIN17175/EN10305 etc GB8162/GB8163/GB3639 etc
Material	St35,St45,St52,E215,E235,E355,10,20, A106,A179,A192,A210,T11,T22,T12 etc
Size	Outer diameter:15-120mm Wall thickness:1-12mm Length:max13400mm,generally 6000mm or so,can be cut shorter as per your need
Application	1045 can be used for as wide variety of applications where greater toughness and wear resistance is needed over lower carbon grades. Typical applications include strippers, holder blocks, mold bases, ejectors, back up and support tooling, fixtures, jigs, molds, cams, drill collars, bolts, stubs, couplings, reamer bodies, axles, shafting, piston rods, rams, hydraulic machinery shafts, gears, sprockets, gear racks, valves, chain links, spindles, tool bodies, tool holders, tie rods, boring bars, guides, tracks, ways, slides, wear strips or parts, forming dies, brake dies, trim dies, bolsters, machinery parts and components, etc. This material roll threads, knurls, and may be plated.
Packing	Woven bag in bundles/ Seaworthy wooden cases/steel framed plywood cases, or as customer’s request
Certificate	ISO9001
Supply ability	3000tons/month
Advantages	Advanced production and inspection equipment Good quality control system and service system Full experienced in export business in stainless steel Convenient location for transport Flexible payment Huge Supply Capacity Advantage, Timely and Effective Delivery

cold drawn seamless steel tube steel pipe and tube
Standard:ASME SA106/53B ASTM A106/53B

DIN2391 JIS S20C S45C GB/T8162 GB/T8163
Grade: 10#
Size: 15-120mm
Processing technique: cold rolled/cold drawn
Length: 6-12m
Surface: oiled for the seamless pipe

Standard	BS EN10296/GB/T8162,GB/T8163 and DIN/JIS/ASTM/API standard
	DIN	10#(ST37-2,ST35-8),20#(ST42,ST45-4/8), 45#(DIN CK45),16mn(ST52.4) etc.
	JIS	10#(STPG38,STS38,STB30,STB33,Stb35), 20#(STPG42,STB42,STS42, JIS S20C),45#(JIS S45C), 16mn(STS49,STPT49) etc.
	ASTM	10#(ASTM a106/53 Gr.B,A192,A179-C), 20#(ASTM A106/53 Gr.B, A178-C,A210-A-1,A315-B,AISI1020), 45#(AISI1045), 16mn(ASTM A210-C) etc.

1.2 Product feature

1.Durability
2.Longer life
3.Dimensional accuracy
4.High strength
5.Regularly test tubes on various 6.parameters
7.Abrasion resistance
8.Corrosion resistance

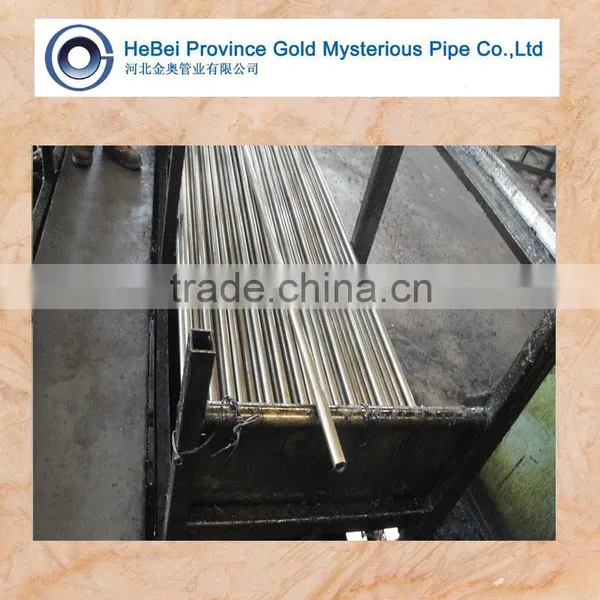

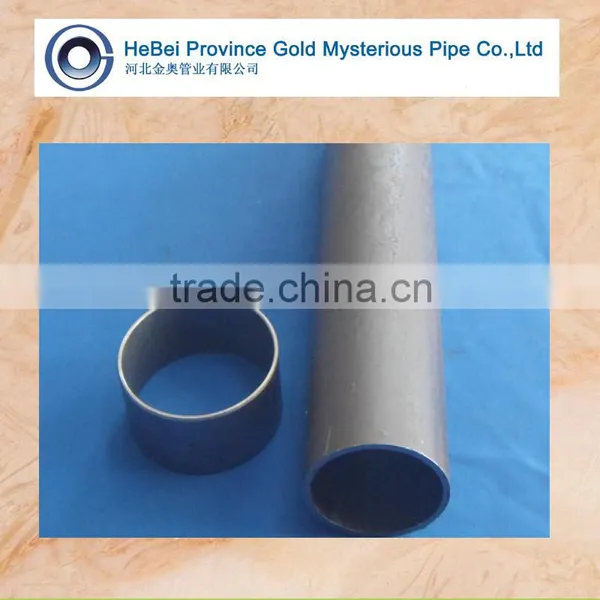

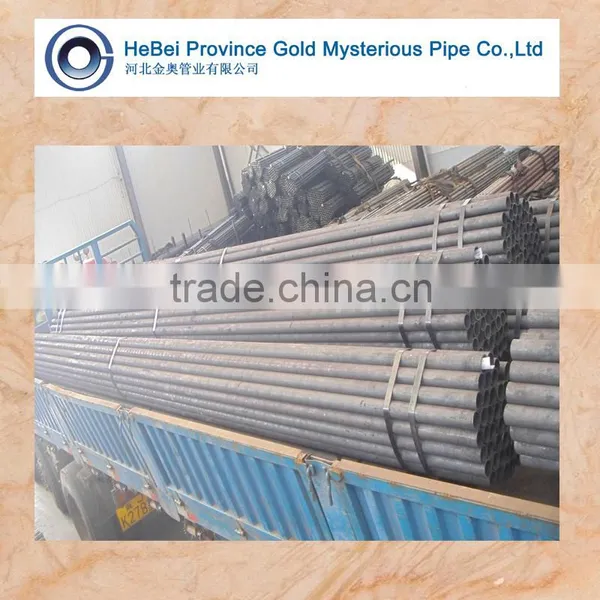

1.3 Picture for the steel pipe

Packing & Shipping

2.1 Packing

20 feet container load 20-25tons pipe and length is under 5.8m

40 feet container load 20-25tons pipe and length is under 11.8m

We will consider bulk cargo when the goods is more than 200 tons to save freight fee for our customers

Our Services

3.1 Sample Service:

1. ODM/OEM service is provided. Your design ideas can come true on products.

2. We would supply the samples for customers. If you feel it good, and order to us. We will pay back the shipping cost of sample.

3.2 Certification:ISO 9001:2008 :

FAQ

Why choose us?

1>>We are the manufacturer, cost-effective

2>>More than 5 years of experience in production and development of sales
3>>And well-known Chinese enterprises have established trade relations
4>>With advanced technology and rich professional quality, hardworking staff
5>>We have a complete production system
6>>Your designs are welcome
