24" Multi Touch Screen Panel

24" Multi Touch Screen Panel thumbnail-1
24" Multi Touch Screen Panel thumbnail-2
24" Multi Touch Screen Panel thumbnail-3
24" Multi Touch Screen Panel thumbnail-4
24" Multi Touch Screen Panel thumbnail-5
24" Multi Touch Screen Panel photo-1

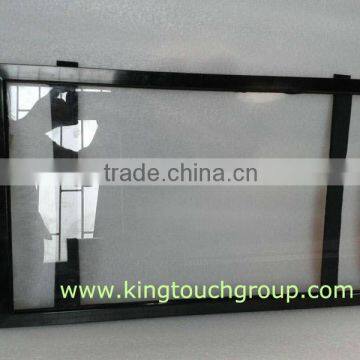

24" Multi Touch Screen Panel photo-2

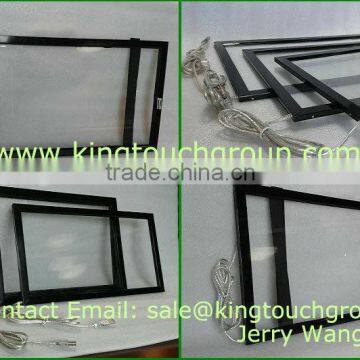

24" Multi Touch Screen Panel photo-3
24" Multi Touch Screen Panel photo-4

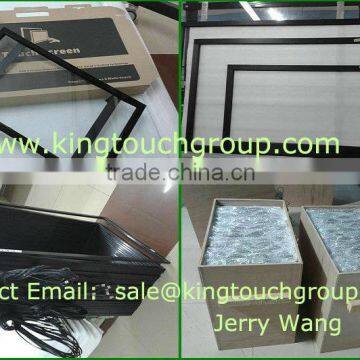

24" Multi Touch Screen Panel photo-5
US$ 50 - 800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock, Stock
Screen Size:
Other, 24 inch, 24 inch
Type:
Other, Infrared, Infrared
Contact Supplier Request Quote Chat Now
Xiamen Kingtouch Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock, Stock
Screen Size Other, 24 inch, 24 inch
Type Other, Infrared, Infrared
Interface Type Serial, USB
Resolution Other, 32767*32767
Brand Name KingTouchGroup
Model Number KTT-IR24KMM
Place of Origin Guangdong, China

Specifications

Multi Touch Screen
1. True Multi touch
2. Fast response and touch stability;
3. Supports Windows 7 and TUIO Protocol;

24" Multi touch screen panel24" Multi touch screen panel24" Multi touch screen panel





KingTouch Technology Group Limited (Who including Xiamen KingTouch Technology Co., Ltd) founded in 2003 and located in Shenzhen, China is a touch technology-leading Group company which focus on developing, manufacturing touch products and touch solutions of human machine user interface, Such as: infrared(IR) Single-touch, Dual-touch and Multi touch Overlay, 4 Wire and 5 Wire Resistive touch screen,Surface Acoustic Wave (SAW) touch screen, Interactive touch foil film through glass, Projected and Surface Capacitive touch screen, Optical touch screen, Touch LCD Monitor, Touch Kiosk, and Multi-touch LCD Monitor and Advertisement POS, Etc. So KingTouchGroup’s touch products had been widely used in Office Computor, Industrial equipment, Game Machine, Kiosk, POS, Automotive system, Medical equipments, Handheld GPS, Tablet PC, 4S Shop, Bus station, Metro, Digital signage AD, Hotels, Museums Library and Entertainment KTV, Etc.



IR Multi Touch Screen:

1. 4, 6, 10, 16 and 32 touch points simultaneously;
2. Available Sizes: 18.5", 19" 22'', 24'',27'',32'',40'',42'',46'',47'',50'',52'',55'',60'',65'', up to 120".

3. Fast response and touch stability;

4. Supports Windows 7 and TUIO Protocol;

 24" Multi touch screen panel 24" Multi touch screen panel



IR Multi Touch Screen Major Features:

  • True Multi touch)
  • IP65 Available
  • Support zoom in/out, display rotation
  • Withstands severe environments
  • Steble, No-drift, Calibration performence
  • Single USB to PCS, work perfectly with Laptops under battery mode
  • Cost effective

Applications:

  • Large Size Information Kiosks
  • Gaming Machine, Lottery , POS, ATM and Museum Library,
  • Government projects and 4S Shop
  • Electronic catalogs
  • Computer-based traning
  • Eductioin and Hospital Healthcare
  • Digital Signage Advertisement
  • Industrial Control System
  • AV Equip & Rental business
  • Simulation Application
  • 3D Visualisation /360 Deg Walkthrough
  • Interactive touch table
  • Large Corporates

Specification:



Multi-touch Screen Size:

General Size

18.5 inch to 120 inch

Fit in with

Panel display device

Performance:

Touch Mode

Single-touch,Dual-touch, Multi-touch, drag, draw-line, rotate, zoom in/out

Resolution(Interpolation)

4096*4096

Linearity Error

<1.5mm

Response Speed

<15ms

Mechanical:

Input Method

Finger or gloved hand (rubber ,cloth or leather)

Touch Times

Unlimited

Touch Activation Force

No minimum touch activation force is required

Minimum Touch Object

2.5 mm X 2.5 mm

Vandal-proof

No break by 1-pound steel ball dropping from 130 cm high

Surface Durability

Surface durability is that of glass, Mohs' hardness rating of 7

Optical:

Glass:

Without glass, 4mm glare, AG (anti-glare), or AR (anti-reflective) glass optional

Light Transmission

92%

Gloss

Antiglare surface (curved or flat): 95 ± 15 gloss units or 65 ± 15 gloss units

Environmental:

Temperature

Operating Range: -20°C ~ 70°C;

Storage Range: -40°C ~ 85°C

Relative Humidity

Operating Range: 0%~90% RH (no dew falls)

Storage Range: 0% to 95% RH (no dew falls)

Altitude

Up to 3,000m

Ambient Light

Direct sunlight 90°to ±30° to the display surface Touch detection operational

Direct sunlight all angles to display surface Free of false touch reports

Electrical:

Operation Voltage

Typical +DC 5V, +4.75V to +5.25V

Power Supply

Size under 52”(include 52”)USB or PS/2 Interface, power ripple max.200mV rms

Size above 52”(52” not included): external AC-DC power adaptor

Interface

Full Duplex USB 2.0 (Full Speed) Plug and play compatible

Serial RS-232. Baud Rate: 9600, 8 Data Bits, 1 Stop Bit, No Parity

Current

Typical 150MA@+5VDC; 350mA, maximum

Power

<1.5W, operating current<300mA

Electrostatic Protection

15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4)

Controller

Integration inside touch panel

Agency Approvals

CE, FCC, Rohs

Operating System:

Operation System :          Windows 7
