13.3 Inch Projected Capacitive Touch Screen Capacitive Multitouch Screen 10 Touch Points

13.3 Inch Projected Capacitive Touch Screen Capacitive Multitouch Screen 10 Touch Points thumbnail-1
13.3 Inch Projected Capacitive Touch Screen Capacitive Multitouch Screen 10 Touch Points thumbnail-2
13.3 Inch Projected Capacitive Touch Screen Capacitive Multitouch Screen 10 Touch Points thumbnail-3
13.3 Inch Projected Capacitive Touch Screen Capacitive Multitouch Screen 10 Touch Points thumbnail-4
13.3 Inch Projected Capacitive Touch Screen Capacitive Multitouch Screen 10 Touch Points photo-1
13.3 Inch Projected Capacitive Touch Screen Capacitive Multitouch Screen 10 Touch Points photo-2
13.3 Inch Projected Capacitive Touch Screen Capacitive Multitouch Screen 10 Touch Points photo-3

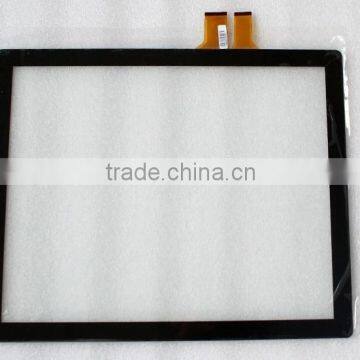

13.3 Inch Projected Capacitive Touch Screen Capacitive Multitouch Screen 10 Touch Points photo-4
US$ 10 - 120 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Screen Size:
Other, 13.3 inch, 10.1 Inch To 42 Inch
Type:
Other, Capacitive, Projected Capacitive Touch Screen
Contact Supplier Request Quote Chat Now
Xiamen Kingtouch Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Screen Size Other, 13.3 inch, 10.1 Inch To 42 Inch
Type Other, Capacitive, Projected Capacitive Touch Screen
Interface Type Serial, USB, USB, Other, Serial, USB, USB,I2C,RS232
Resolution Other, 4096 * 4096
Brand Name KingTouchGroup
Model Number KTT-PCT13.3
Place of Origin Guangdong, China

                                                             KingTouch Technology Group Limited



                                                     Projected Capacitive Touch Screen(10 touch points)





Specification:

KingTouch's projected capacitive touch screen is developed by American expert,used high quality raw material imported from Japan,and the quality control is under the super vision of Taiwanese esperienced technical stuff.The item has long life,high stability,high transmittance,large size,maintenance free features,and is idea for smart phone,trblet PC,Gps





Advantage:



-Capacitive touch technology.

-Highest resolution, sensitive and fast response

-Easy to install with LCD monitor

-Dustproof and Waterproof maintenance free.

-Touch screens can be built in specific dimensions requested by clients in custom orders

 -Flexible interaction; waterproof presentation, Gloves touch,10mm glass, replaceable cover glass and anti-interference  presentation.

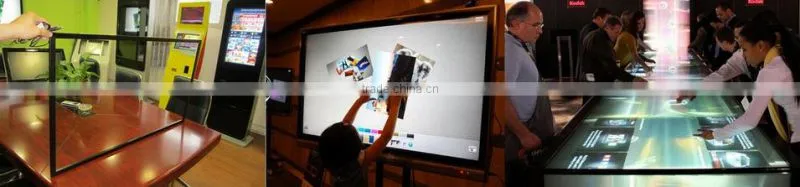

Application:



-Point-of-information kiosks

-Vending and ticket sales

-Electronic catalogs

-Gaming, lottery, and amusement

-Public pay phones

-Multimedia marketing

-Banking/financial transactions

-Industrial control rooms

-Computer-based training





Touch Panel Controller



OSVersionInterfaces
WindowsWindows 8(Need logo submission)
Windows 7
Windows Vista, XP/2000
Windows /5.0/6.0/7.0
Windows Embedded
Windows XP Tablet PC edition		USB/RS232
LinuxDistribution based on Kernel 2.6.24 and
later.
(Ubuntu/Linux Mint
Debian
Fedora
Red Hat/CentOS
Magaie/Mandriva/Mandrake
SUSE/openSUSE		USB/RS232
Android 2.3 ~ 4.4USB/RS232
MacMac OS, Mac OS X (PowerPC, Intel CPU)USB
QNXQNX RTOS v6.3USB/RS232



Projected Capacitive Touch Panel Specification



Product model

KTT-PCT15K

Dimensions

15"

Structural

GG

Drive form

COB

Rati

4:3

Lens OD

452.8mm*281.4mm*1.1mm

Lens VA

412.8mm*233.4mm

Sensor OD

438.8mm*267.4mm*1.1mm

Thickness

2.4mm

Surface hardness

6H

Transparency

>90%

Operating temperature

-30 °C -- +75 °C

Storage temperature

-40 °C -- +85 °C

Relative Humidity

90% at 60°C

Linearity

1PT:+/-1mm,10PT:+/-2.5mm

Touch life

>300,000,000 times

Max. Resolution

4096 x 4096 (Automatic matching )

Max. Support Points

Max,10 points

Control Type

PCBA control board

Connector Type

USB

Interface to Host/Master

USB, 4 wire, 2.0 Full speed

Supply Voltage

USB 5VDC

Power Consumption

Active Mode:<30mA,Idle Mode:5mA

Oscillator Frequency

12MHz

Response Time

<10ms

Min. Report Rate

10PT: 80Hz

Max. operating frequency

100 MHz

ESD.Air discharge

8KV

ESD.Contact discharge

4KV

Operating system

Windows7/Windows8/Windows XP linux,Android Mac

Adapter ripple

Vpp<50mv

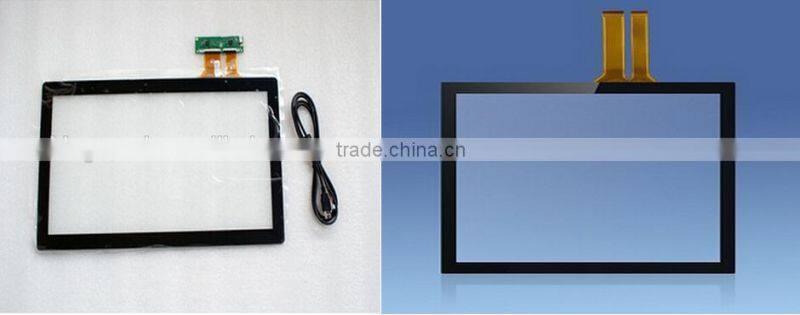

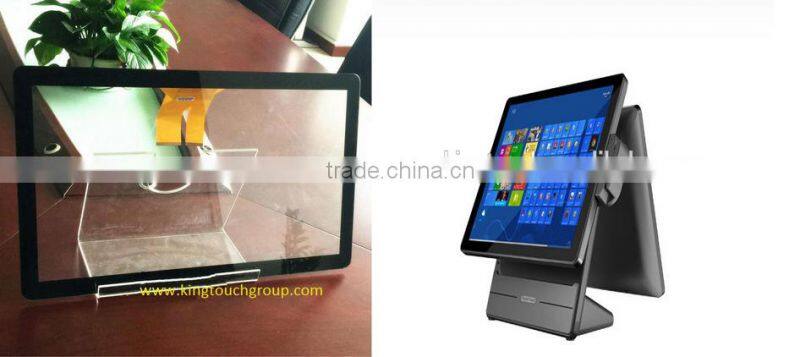

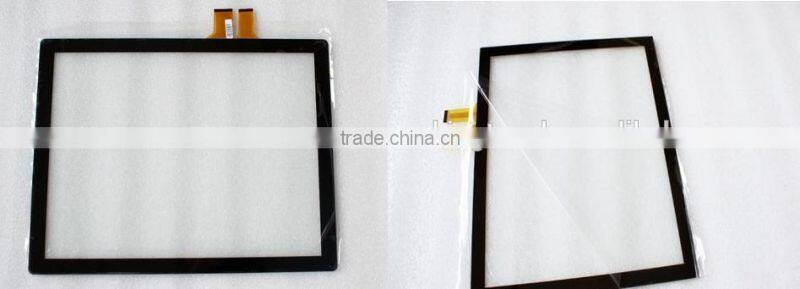

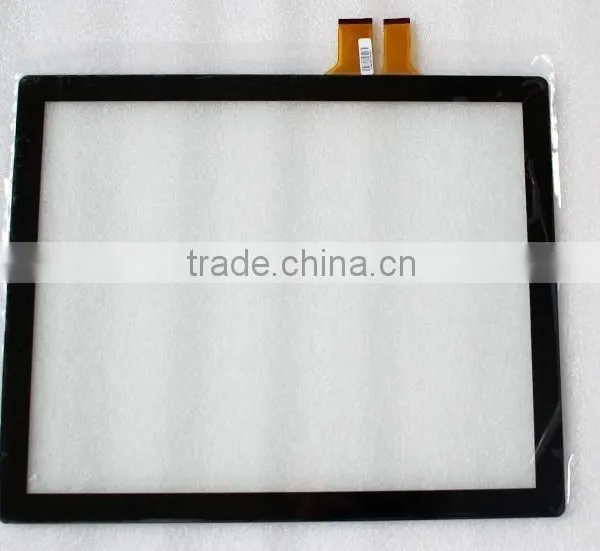

Product Picture



13.3 Inch projected capacitive touch screen capacitive multitouch screen 10 touch points

13.3 Inch projected capacitive touch screen capacitive multitouch screen 10 touch points

13.3 Inch projected capacitive touch screen capacitive multitouch screen 10 touch points13.3 Inch projected capacitive touch screen capacitive multitouch screen 10 touch points



The KingTouch products are available in following categories:
      -IR Touch Screen/IR touch frame     15"~500"  with 2 ,6 ,10, 16, 32 touches can be choose
       -Capacitive Touch Foil,Interactive Touch Foil     17"~110"  with 2,6,10,20 touches can be choose.

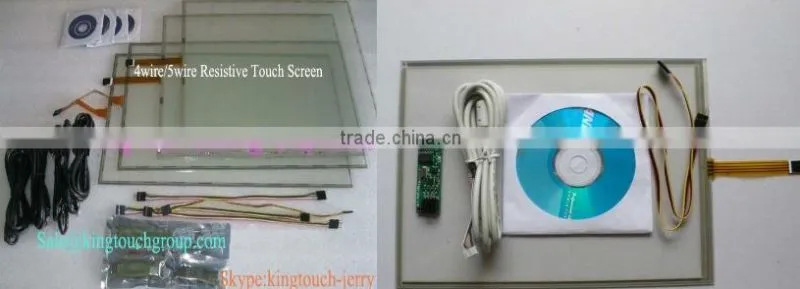

       -4 wire 5 wire Resistive touch screen,resistive touch film    7"~22"  Single Touch
       -SAW touch screen/panel     7"~ 42"  Single Touch
       -Projected Capacitive Multi touch screen (PCTP)   10..4"~42"   10 touches
       -Surface Capacitive Touch Panel(SCTP)   5.8"~22"  Single Touch
       -OEM Touch monitor/open frame touch screen monitoe assembly service.





1.Transparent Capacitive Touch Foil 2,6,10,20,40 touch points can be choose

2.Infrared Touch frame 2,6,10,16 32 40  touch points can be choose

3.SAW Touch Scree(welcome to your inquiry)



4.4 wire 5 wire Resistive touch screen / panel(welcome to your inquiry)


13.3 Inch projected capacitive touch screen capacitive multitouch screen 10 touch points
