Products Status Stock
Screen Size Other, 21.5 inch
Type Other, Capacitive, Capacitive Touch Screen
Interface Type USB, Other, USB, I2C RS232
Resolution Other, 4096 * 4096
Brand Name KingTouchGroup
Model Number KTT-PCT21.5
Place of Origin Guangdong, China

                                                             KingTouch Technology Group Limited



                                                     Projected Capacitive Touch Screen(10 touch points)





(PCAP)Capacitive Multi Touch Screen Specification:

KingTouch's projected capacitive touch screen is developed by American expert,used high quality raw material imported from Japan,and the quality control is under the super vision of Taiwanese esperienced technical stuff.The item has long life,high stability,high transmittance,large size,maintenance free features,and is idea for smart phone,trblet PC,Gps





Advantage:



-Capacitive touch technology.

-Highest resolution, sensitive and fast response

-Easy to install with LCD monitor

-Dustproof and Waterproof maintenance free.

-Touch screens can be built in specific dimensions requested by clients in custom orders

 -Flexible interaction; waterproof presentation, Gloves touch,10mm glass, replaceable cover glass and anti-interference  presentation.





Application:



-Point-of-information kiosks

-Vending and ticket sales

-Electronic catalogs

-Gaming, lottery, and amusement

-Public pay phones

-Multimedia marketing

-Banking/financial transactions

-Industrial control rooms

-Computer-based training

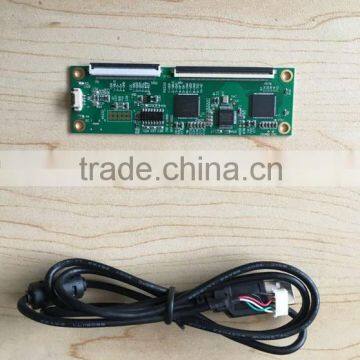

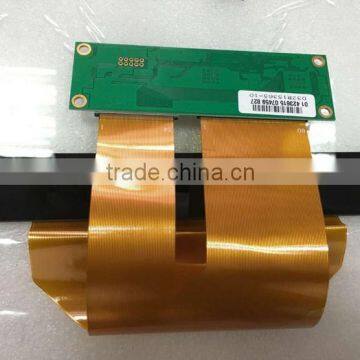

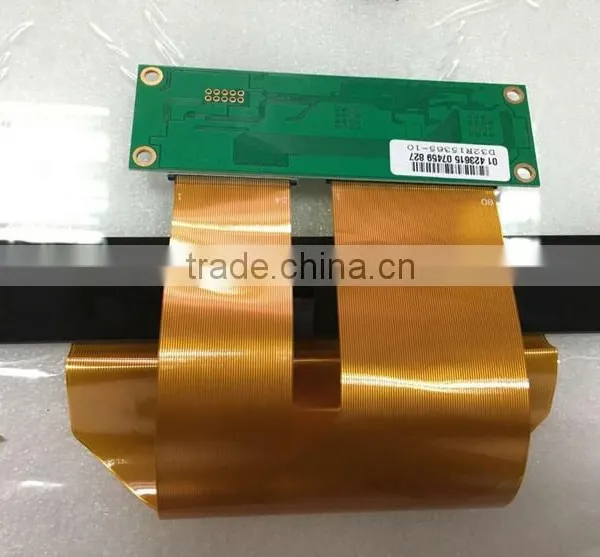

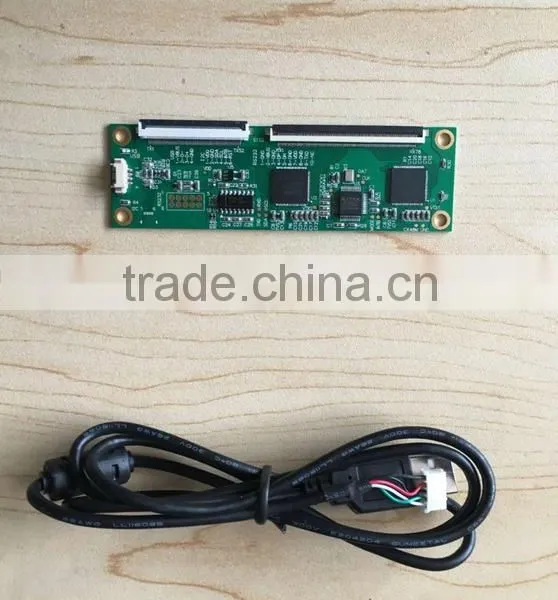

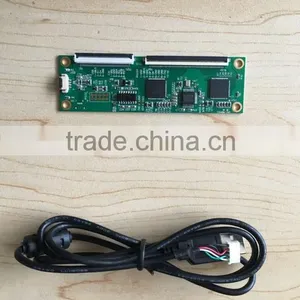

Capacitive Multi Touch Screen Controller Picture




OS Version Interfaces
Windows Windows 8(Need logo submission)
Windows 7
Windows Vista, XP/2000
Windows /5.0/6.0/7.0
Windows Embedded
Windows XP Tablet PC edition		 USB/RS232
Linux Distribution based on Kernel 2.6.24 and
later.
(Ubuntu/Linux Mint
Debian
Fedora
Red Hat/CentOS
Magaie/Mandriva/Mandrake
SUSE/openSUSE		 USB/RS232
Android 2.3 ~ 4.4 USB/RS232
Mac Mac OS, Mac OS X (PowerPC, Intel CPU) USB
QNX QNX RTOS v6.3 USB/RS232



Projected Capacitive Touch Panel Specification



---The specification of 21.5 inch touch screen---
Specification
Size 21.5 inch
Product name

21.5 inch capacitive touch screen
Model number KTT-PCT21.5
Type Capacitive touch screen
Struture CTP(Glass+Glass)
Outline Dimension 524x321.8x1.8mm
Active area 478x269.80 mm
Thickness of cover glass 1.1 mm
Touch screen solution COB(Chip on the board)
Touch controller EETI
Operating system Win 7,win8,win ce,android,Linux,Mac
Interface of CTP I2C/USB/RS232
Surface Hardness 6H
Transparency 90%min
Touch Points 10 points
Operating temp -20 to 70 degree
General Business Clauses
MOQ 1 piece
Lead time Samples in stocks,2~4 weeks for mass production
Trade Terms EXW or FOB
Payment 100% Paypal or T/T or Western union in advanc for samples ,
50% T/T in advance and 50% before delivery for mass production
Warranty 12 months
Package Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton

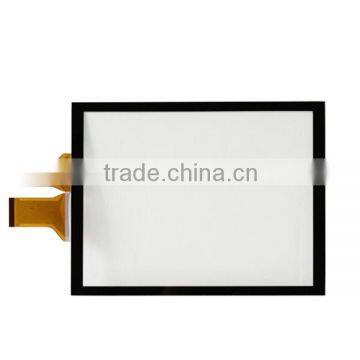

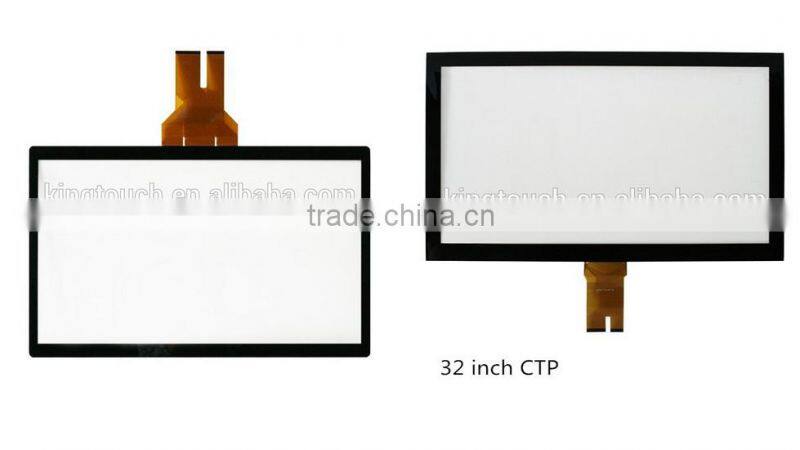

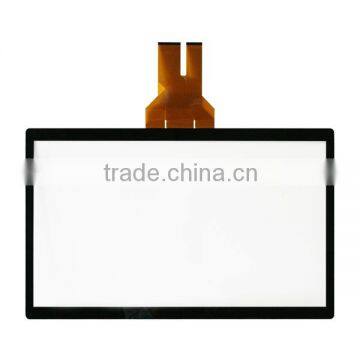

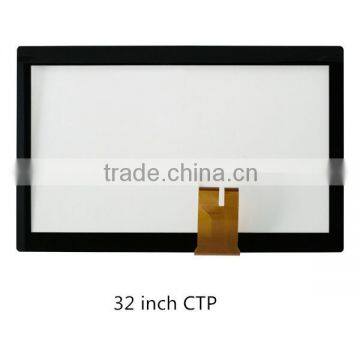

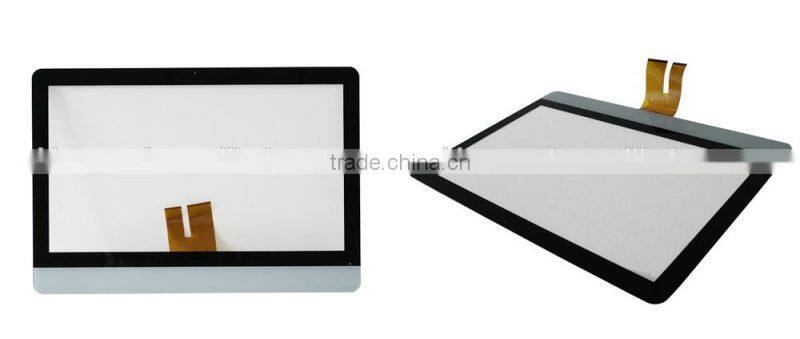

Product Picture
