Home > Products > bag making machine > Non Woven Fabric Box Bag Making Machine

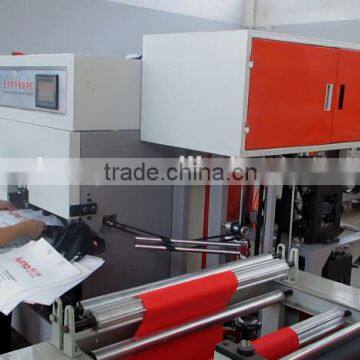

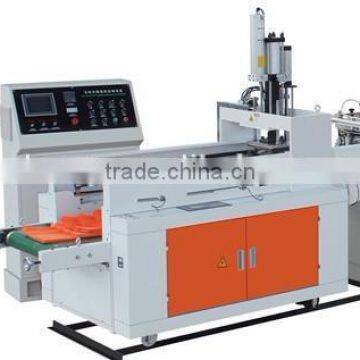

Non Woven Fabric Box Bag Making Machine
- 10000 Set / Sets per Month
- Guanghzou
- Credit Card
Product Details
Condition: | New | Machine Type: | Bag Forming Machine | Bag Type: | Other |
Material: | Other | Computerized: | Other | Place of Origin: | Guangdong, China |
Model Number: | DY-86-FA | Voltage: | 220V/380V | Power(W): | 18kw |
Dimension(L*W*H): | 13500*2300*2000mm | Weight: | 4000kg | Certification: | ISO |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Non woven fabric bag making machine
Non woven fabric shopping bag making machine
non woven bag making machine
Automatic Non Woven Flat Bag Making Machine
Non Woven Bag Making Machine with auto handle sealing
Non Woven Carry Bag Making Machine/Automatic Shopping Bag Making Machine/Non Woven Bag Machine
Product Description
This machine is our newest design special for non-woven fabric box bag making with both side-gusset and bottom-gusset, also can make different kinds of common bag suck as the D cut bag, handle bag, gift bag, box bag and draw string bag.
Product Introduction:
The machine is suitable for non woven fabric materials, it is the most advanced machinery. The Machine Speed can reach 120 PCS bags per minutes, It can fully automatic make non woven bag products with different bag type and size,t-shirt bag(vest bag), box bag,flat bags,drawstring bag and so on.
Those main use for packing cloth,footwear, wine,gifts etc . now this type non woven bag making machine as handle sealing is very popular in worldwide.
Features:
1.This machine adopts Taiwan touch screen computer display , PLC computer program which can be edited.
2.Automatic meter counting & stopping, could freely setting number.
3.Computer fixed-length,printing color mark track orientation, automatic stop when it finished.
4.High voltage static processor, automatic constant temperature heating controller.
5.Machine has the D-cut punch and W-cut punch as machine,for make D-cut flat bag and Box Bag. high speed and quality pneumatic punch.
6.Unwinding magnetic powder tension control with manual, automatic side correction control.
7.Machine adopt ultrasonic welding,including bag pocket folding sealing, side sealing. we choice very high quality and famous ultrasonic supplier.
Non Woven Bag Making Machine Type | DY-86-FA |
Bag Making Speed | 20-120pcs/min |
Handle Bag Speed | 20-75pcs/min |
Bag Width | 100-800mm |
Bag Length | 200-680mm |
Bag-Making Thickness | 30-120g |
Power Supply | 380V/220V |
Total Power | 20KW |
Overall Dimension (L*W*H) | 12m*2.2m*2.3m |
Machine Weight | 4000KG |
Details
1) Main motor with frequency conversion(made in Shanghai), speed can be adjusted
2) Micro-computer controlled stepping motor
3) Pneumatic shaft axis
4) EPC(edge position control) controls material running
5) Side-folding, heating with electrical temperature-controlled
6) Material half-fold, with EPC control
7) Tachometer shows as the material runs
8) Adjusted lever with air cylinder tension control
9) Ultrasonic made in Jiangsu, Japan Chip, YDN Brand
10) Photocell tracks the printing material
Guarantee period and maintenance:
Seller guarantees that the equipment is accordance with the function and requirement without manufacturing defects. The guarantee period is one year after the installation and adjustment.
Buyer is responsible for the costs including maintenance and spare parts if the equipment damage is caused by the buyer's improper use, not caused by the seller's design and manufacturing.
If the buyer needs seller to send an engineer the installation and training. The buyer should cover the all of expense for the seller's engineers, such as, air-tickets, visa, accommodation and local traffic charges, salary(USD 80/day) in Buyer's side. And the buyer should do his best to cooperate the engineers of sales party in installation, supply the enough labor and tools, necessary accessory with them.
