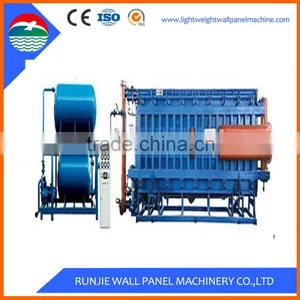

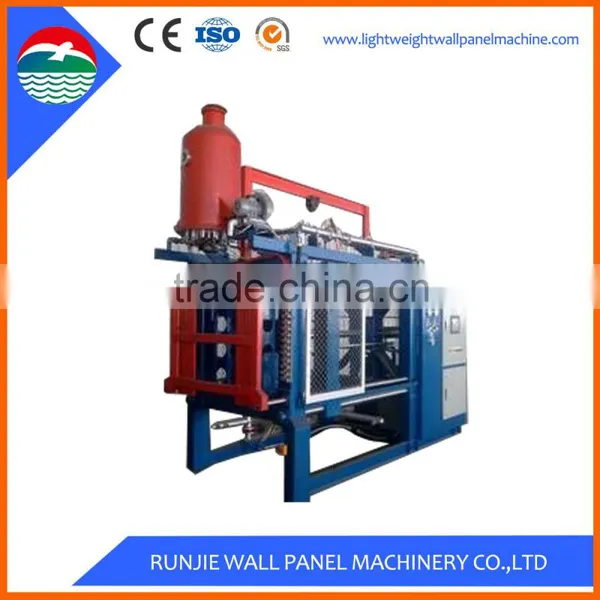

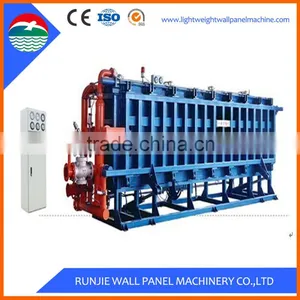

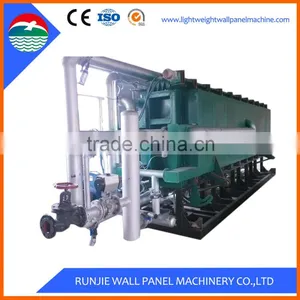

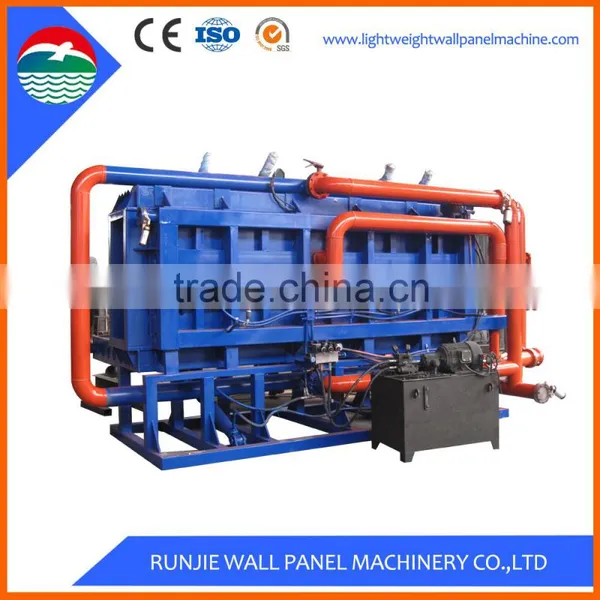

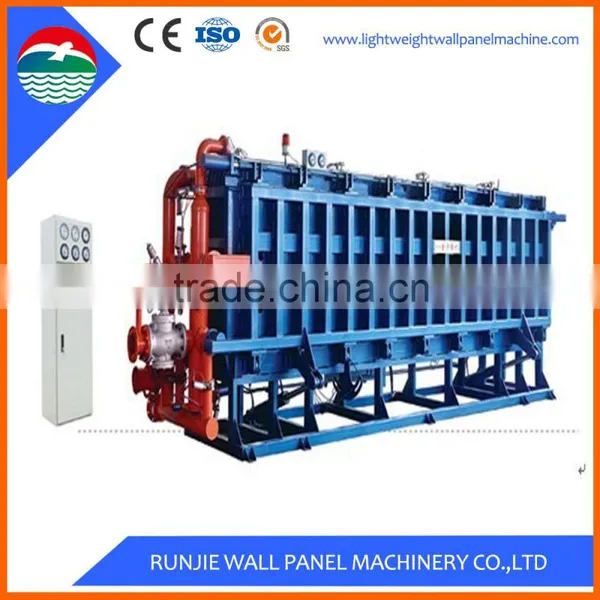

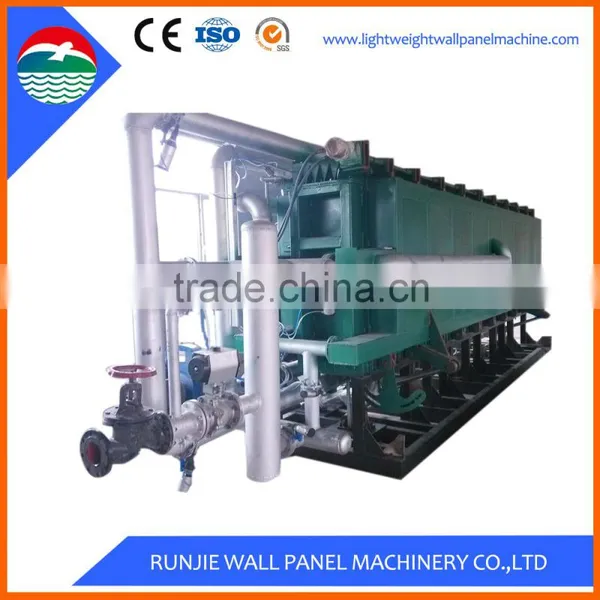

Eps Shape/Block Moulding Machine
Mould size | 5080x1240x1030mm |
Block size | 5000x1200x1000mm |
Density range | 4.5-30kg/m3 |
Capacity | 10kg/m3: about 9 blocks/hour |
15kg/m3: about 7 blocks/hour | |
20kg/m3: about 5 blocks/hour | |
Steam pressure | 0.6-0.8mpa |
Steam consumption: | 10-15kg/m3 |
Steam inlet DN | 100mm |
Compressed air inlet DN | 40mm |
Compressed air consumption | 1.8-2.2m3/cycle |
Electricity | 380V |
Frenquency | 50HZ |
Power consumption | 25KW |
Overall weight | 12000KG |
Overall size | 66000mmx2150x2950mm |
♦ The machine is welded by high-quality profile steel with age heating treatment which can bring a high strength, non-deformation and high resistance to the expansive force from high-density products.
♦ The machine is controlled by LC full computer touch screen displayer which can realize a full automatic cycle operation of mould opening, mould closing, material feeding, heating, heat preserving, vacuum cooling, de-molding and extruding-out of finished products.
♦ The surface of the mould is made of special aluminum alloy panel which can realize a high efficiency of heat conduction, favorable tensile strength and long service life.
♦ The machine is integrated with overseas advanced and special penetrating and heating techniques for shaping, and a high pressure suction fan for material feeding, cooling with a strong penetrability, low consumption of steam, high speed of shaping and low water content so as to ensure the uniformity of inside and outside of the product.
