Eps Cutting Machine( 3 kinds)

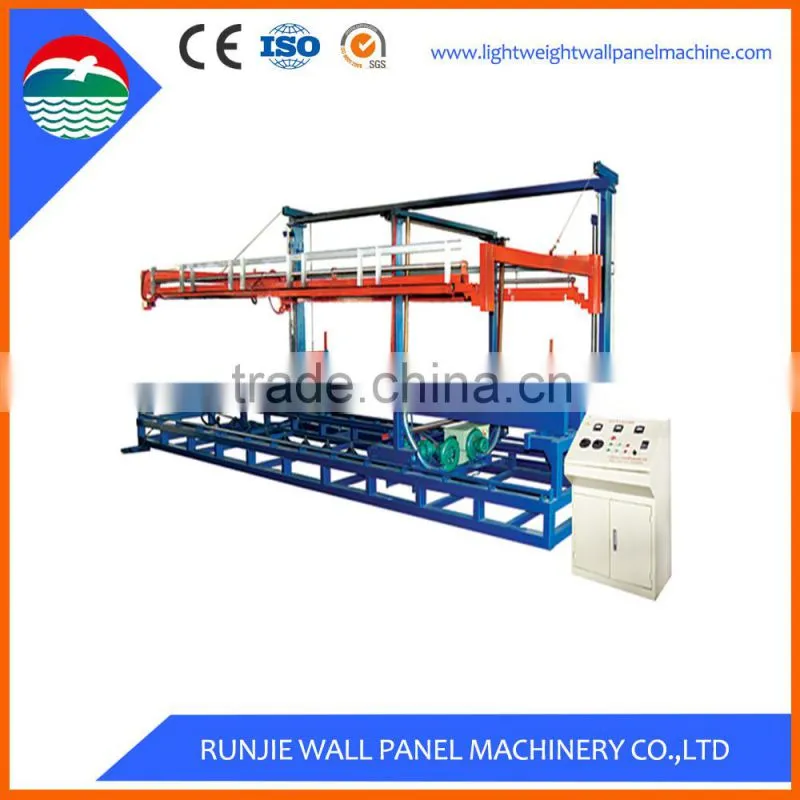

I. PSQ-6000 AUTOMATIC CUTTING MACHINE
Features:
♦ The machine is welded by high-quality rectangular steel tube with a reasonable and firm structure, high strength and no deformation.
♦ The machine is integrated with frequency control to realize a large range (0-4.5m/min) of step-less speed adjusting which is suitable for various cutting.
♦ The machine has horizontal, vertical and block cutting devices, and can realize a 3-direction stable cutting in adjustable and precise cutting size.

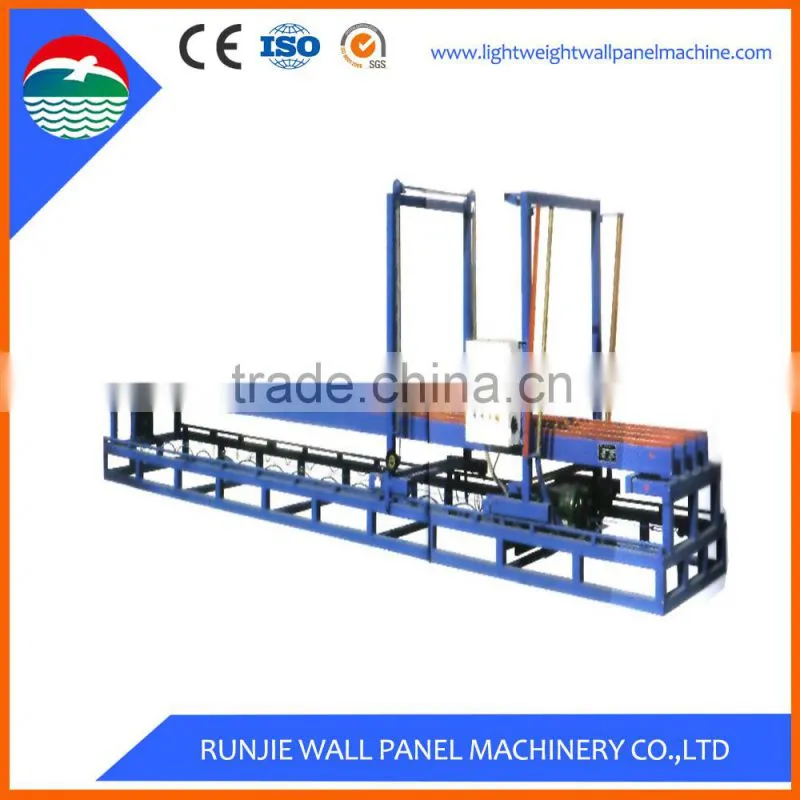

II. PSQ-4000 AUTOMATIC MULTI-FUNCTION CUTTING MACHINE
Features:
It can achieve three-dimension cutting----horizontal, vertical and cross cutting | |
Max 30 cutting wires can be manually set in horizontal direction | |
Max 15 cutting wires can be set in vertical direction | |
Minimum thickness to be cut | 10mm |
Suit for cutting Block size: | 4000x1300x1300mm(Suit for different density block) |
Cutting speed: | 0~2m/min |
Capacity : | denisity15g/l |
block size | 4000x1200x1000mm |
One Block cutting time
| 6~8min (2 labors) |
15min. (1 labor) | |
Connect load: | 22.3kw |
Note:
1. with automatic down cutting system
2. with block aligning device, keep block in straight position.

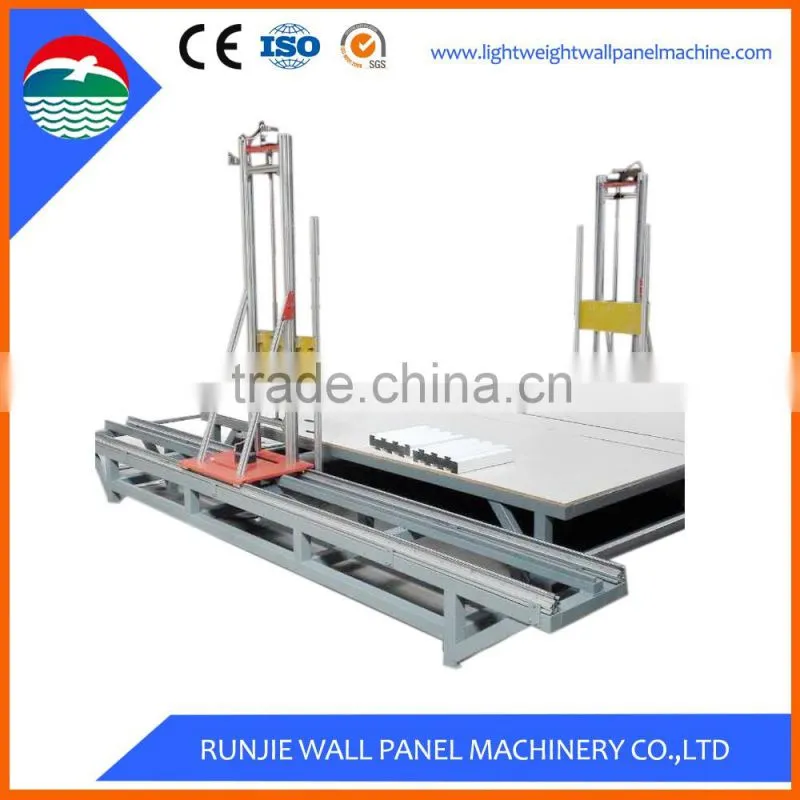

III. PSQ-4000 2D CNC CUTTING MACHINE
Features:
This machine can cut EPS products into different shapes. |
It is connected with a laptop or a touch screen. The user can directly use Auto-cad to make the drawing. |
20 wires can be put onto the machine. It can cut 20 same products at the same time. (for small products) |
Stable performance and precise cutting. |
Step-motor is used so the speed can be adjusted according to the user’s requirement. The tolerance of cutting can be 0.2-0.5mm. |
The frame of the cutting machine is made by aluminum alloy. It is lightweight but very strong. We can also make steel structure according to users' different requirements. |

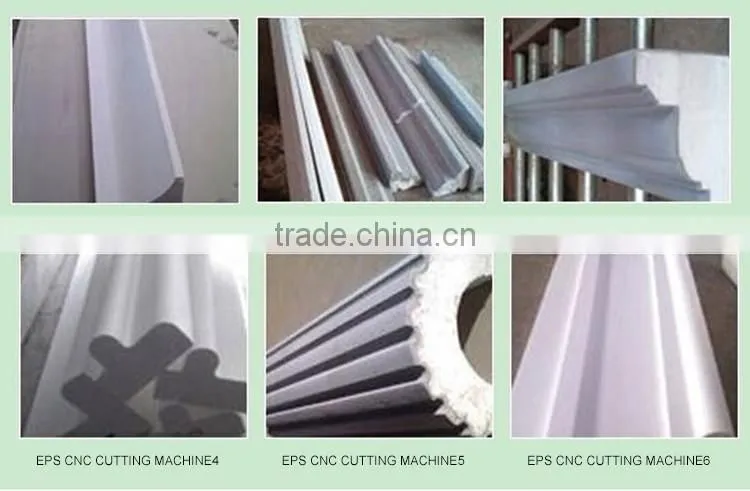

Products after Cutting:
♦ We assign technicians for the installation of the machine.
♦ We prepare enough quick-wear spare parts for the customer
♦We will help train technicians until the buyer can run the line by themselves.
♦We will also give our customers the best formulation to ensure make the best-quality panels at the lowest cost.
♦ If there is anything wrong with the machine because of the machine quality, our technician will go to repair it without any charge
