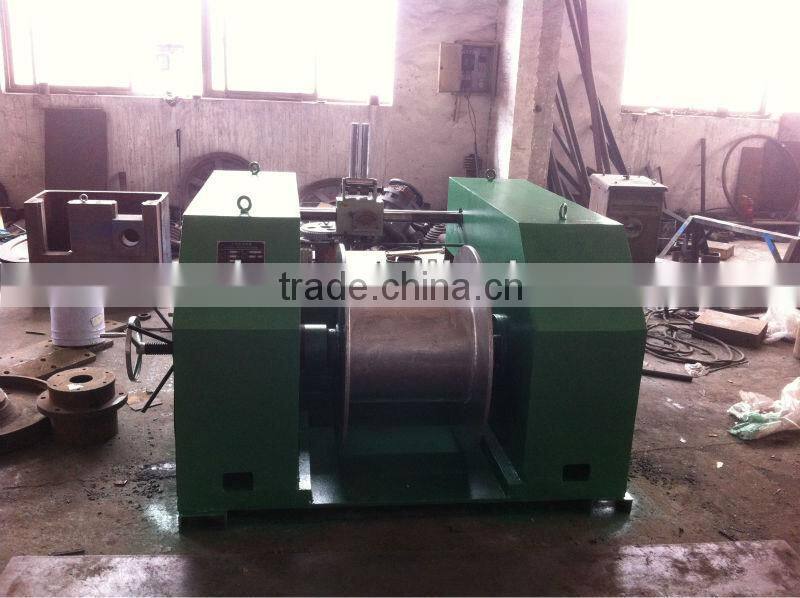

LW-1-6/350 WIRE DRAWING MACHINE

Name: LW-1-6/350 WIRE DRAWING MACHINE
Brand: WANDESHUN
Availability: InStock

FOB Price

US$ 1,000 - 3,500 / Set

1 Set(Min. Order)

Port shanghai ningbo
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	WANDESHUN
Model Number	LW-1-6/350		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Place of Origin: Jiangsu, China (Mainland)
Brand Name: WANDESHUN
Model Number: LW-1-6/350
MACHINE: vertical .

Specifications

Wire Drawing machine
Vertical type
Max wire diameter:2.5mm
drawing wire of high, medium and carbon steel

wire drawing machine

Structure:

The equipment consists of main reduction box,die casing,wheel frame,sash brace and

electrical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.

Usage:

The set of the machines is an ideal equipment for drawing wire stock of high,medium and carbon steel,as well as coper,alumium and alloy.The machine are applied for drawing wire in the factories,such as wire-steel factor,metal mesh factory and nail making factory etc.

In order to lower residual heat on the surface of the block, the cooling means is installed in inter-wall of the block,the wortle is soaked in cooling water to reduce its working temperature.

The machine runs with carvel or linkage. The safety halt gear is installed by the position of operating block.

Type	LW-1-6/350
Material intensity	δb≥140kg/mm²
Max diam of material	2.5mm
Min diam of material	0.75mm
Diam of block	1-6/350
Max average condensation	21%
Total condensation	78%
Max.speed of block	200m/min
Total power	7.5-11kw
Weight	1000kg
Overal size	1400x800x1500mm
