Help CenterOverhead Take-off and Take up Continuous Drawing Machine
Related Products
-
Full Automatic And Much Economic Pulley Wire Drawing MachineUS$ 1,000 - 4,500MOQ: 1 Set -
OTO Type/Low Cost Dry/Pulley Wire Drawing Machine/nail Wire Making Machine Quality ChoiceUS$ 1,000 - 4,500MOQ: 1 Set
-
Pulley Cable Wire Drawing MachineUS$ 1,000 - 4,500MOQ: 1 Set
-
Flux -cored Wire Drawing MachineUS$ 1,000 - 4,500MOQ: 1 Set
-
Stainless Steel Wire Drawing MachineUS$ 1,000 - 4,500MOQ: 1 Set
Specifications
Inlet Diameter: 6.5mmOutlet Diameter: 2.0mm
Dimension(L*W*H): 1800*1260*1700
Model Number: LW-1-6/560
About us
Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.
Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia,Uzbekistan.Iran Kenya, South Africa and so on.
Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.
Main products:
Straight line drawing machine
Water tank wire drawing machine
Aluminium wire drawing machines
Vertical wire drawing machine
Pulley wire drawing machine
Pulley wire drawing machine is our star products
OTO Wire Drawing Production Line/Pulley Type Wire Drawing Line
-------------------------------
1. Description:
The pulley type continuous wire drawing machine has the characteristics of simple structure, low cost, and easy operation, and it is suitable for drawing a variety of medium and thin fiber material, especially for mild steel wire, galvanized iron wire, steel head wire, stainless steel wire, rubber hose steel wire, spring steel wire, rod welding wire and copper wire aluminum rod, etc.
Scope of application: gas-protection welding wire, welding electrode, stainless steel wire, galvanized iron wire, bullet and hard wire, copper wire, and metal product wire, etc.
2. Usage:
The set of the machine is ideal equipment drawing wire stock of high, medium and carbon steel, as well as copper, aluminum and alloy. The machines are applied to drawing wire in the factories such as wire-steel factory, metal mesh factory and nail making factory etc.
3. Structure:
The equipment consists of main reduction box.die casing, wheel frame, sash brace and electrical control system. The spinning drawing blocks are driven by JZT series motor, with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body. The gear pairs are lubricated with oil.
In order to lower residual heat on the surface of the block, the cooling means is installed in interval of the block. To reduce its working temperature, the machine is soaked in cooling water.
The machine runs with carvel or linkage. The safety halt gear is installed by the position of operating block.
Transmission System: Strong narrow joint V-belt; strong narrow joint V-belt and spiral bevel gear; strong narrow joint V-belt + standard gear box transmission.
Mode of speed: adjustment AC frequency conversion control
Pay-off Method: Pay-off machine or spool pay-off machine
Take-up Method: I-Spool take-up machine or trunk pay off machine
Material: Suitable for Drawing Welding rod; welding Wire (gas protection welding wire and submerged arc welding wire); steel wire (medium, low carbon steel wire, stainless steel wire); Wire and cable (copper wire, aluminum wire) and other metal wires
* Various combined drawing equipment can be designed according to the customers' requirements
Specification
Diameter of capstan |
360-400 |
560 |
mm |
Drawing dies |
9 |
9 |
Time |
Maximum diamter of inlet wire |
2.5-3.0 |
6.5 |
mm |
Minimum diameter of outlet wire |
0.8 |
2.0 |
mm |
Total compression rate |
91 |
90.53 |
% |
Average compression rate |
23.5 |
23.04 |
% |
Maximum linear speed |
12 |
6 |
m/s |
Unit motor power |
7.5-11 |
18.5-30 |
kw |
Unit dimension |
9000×1650×2250 |
12000×1850×2250 |
mm |
Unit weight |
2 |
2 |
t |
Inlet variable-frequency |
Controlled by PLC |
Controlled by PLC |
|

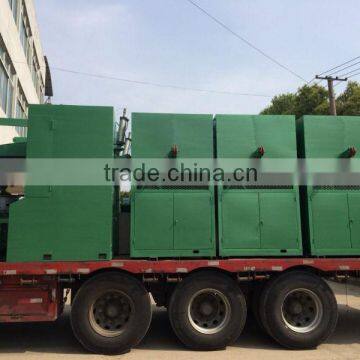

please check our loading photos, so that you can know more clearly
