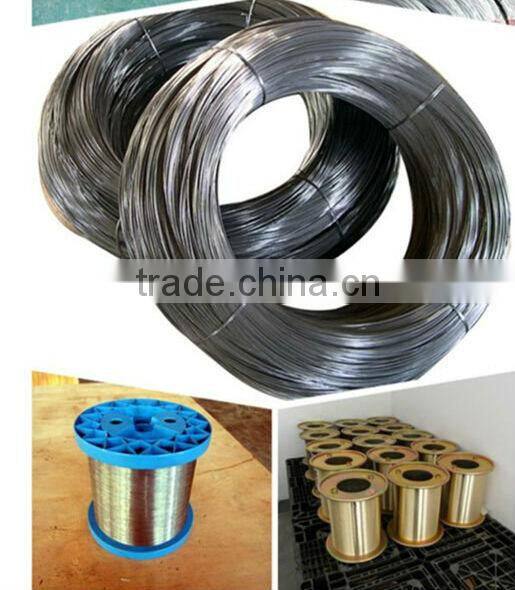

Help CenterFull Automatic And Much Economic Pulley Wire Drawing Machine
Related Products
-
OTO Type/Low Cost Dry/Pulley Wire Drawing Machine/nail Wire Making Machine Quality ChoiceUS$ 1,000 - 4,500MOQ: 1 Set -
Pulley Cable Wire Drawing MachineUS$ 1,000 - 4,500MOQ: 1 Set
-
Flux -cored Wire Drawing MachineUS$ 1,000 - 4,500MOQ: 1 Set
-
Stainless Steel Wire Drawing MachineUS$ 1,000 - 4,500MOQ: 1 Set
-
Pulley for Steel CableUS$ 1,000 - 4,500MOQ: 1 Set
Specifications
Inlet Diameter: 6.5mmOutlet Diameter: 2.0mm
Dimension(L*W*H): 1800*1260*1700
Model Number: LW-1-6/560
About us
Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.
Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia,Uzbekistan.Iran Kenya, South Africa and so on.
Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.
Main products:
Straight line drawing machine
Water tank wire drawing machine
Aluminium wire drawing machines
Vertical wire drawing machine
Pulley wire drawing machine
Pulley wire drawing machine is our star products
Application
Main products include steel wire rod pre-treatment production line, rough wire drawing line, fine drawing line, gas welding wire, arc welding wire production line of high speed winding machine,etc.
----------------------------------------------------------------
Specification
Diameter of capstan |
360-400 |
560 |
mm |
Drawing dies |
9 |
9 |
Time |
Maximum diamter of inlet wire |
2.5-3.0 |
6.5 |
mm |
Minimum diameter of outlet wire |
0.8 |
2.0 |
mm |
Total compression rate |
91 |
90.53 |
% |
Average compression rate |
23.5 |
23.04 |
% |
Maximum linear speed |
12 |
6 |
m/s |
Unit motor power |
7.5-11 |
18.5-30 |
kw |
Unit dimension |
9000×1650×2250 |
12000×1850×2250 |
mm |
Unit weight |
2 |
2 |
t |
Inlet variable-frequency |
Controlled by PLC |
Controlled by PLC |
|

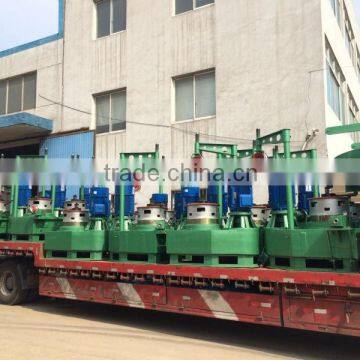

please check our loading photos, so that you can know more clearly
