We are professional EPS foam machine manufacturer----EPS foam block moulding machine, EPS pre-expander, 2D CNC EPS cutting machine, EPS shape moulding machine, etc. We have been making EPS foam machines for over 10 years. We offer the best quality machine at the best price because both land cost and labor cost are low in our city.
Our advantage is that we not only make the machines, but also make the EPS boards so we have rich experience in this field. If you visit our factory, you can see both the machine production and the EPS board production.
Brief Introduction to 2D CNC eps cutting machine:

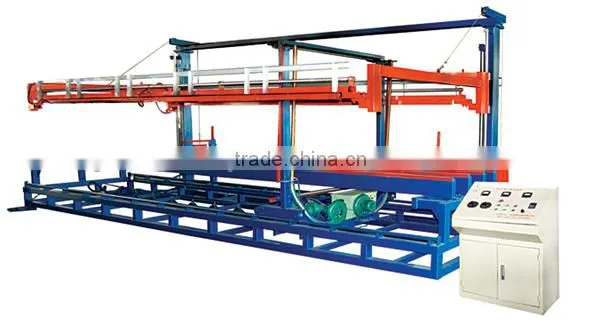

PSQ-400 AUTOMATIC THREE-DIMENSION CUTTING MACHINE
Features:
It can achieve three-dimension cutting----horizontal, vertical and cross cutting.
Max 30 cutting wires can be manually set in horizontal direction
Max 15 cutting wires can be set in vertical direction.
Minimum thickness to be cut is 10mm
Suit for cutting Block size:4000x1300x1300mm
Suit for different density block
Cutting speed: 0~2m/min,
Capacity :denisity15g/l, block size 4000x1200x1000mm,
One Block cutting time:6~8min (2 labors)
10 ~ 15min. (1 labor)
Connect load: 22.3kw
Note:
1. with automatic down cutting system
2. with block aligning device, keep block in straight position.

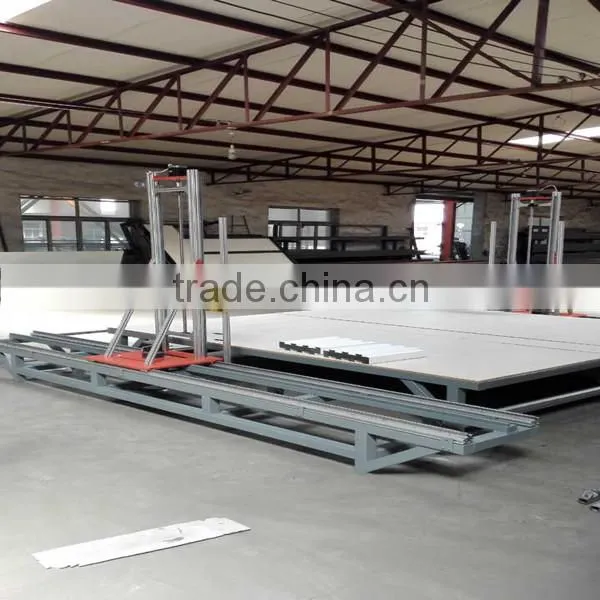

PSQ-400 CNC CUTTING MACHINE WITH CNC CONTROL SCREEN
Specs
| Max product size | 4000x4000x1250mm |
| Length of the wire | 4000mm |
| Cutting speed | 0-3.5m/min |
| Dia of hotwire | 0.4-0.8mm |
| Number of hotwire | 1-20 |
| Power | 3.0KW |
| Transformer capacity | 8KW |
| Cutting mode | two dimension |
| Weight | 1000KG |
Introduction to EPS foam block moulding machine:
The machine is welded by high-quality profile steel with age heating treatment which can bring a high strength, non-deformation and high resistance to the expansive force from high-density products.
The machine is controlled by LC full computer touch screen displayer which can realize a full automatic cycle operation of mould opening, mould closing, material feeding, heating, heat preserving, vacuum cooling, de-molding and extruding-out of finished products.
The surface of the mould is made of special aluminum alloy panel which can realize a high efficiency of heat conduction, favorable tensile strength and long service life.
The machine is integrated with overseas advanced and special penetrating and heating techniques for shaping, and a high pressure suction fan for material feeding, cooling with a strong penetrability, low consumption of steam, high speed of shaping and low water content so as to ensure the uniformity of inside and outside of the product.
Specs:
Mould size |
5080x1240x1030mm |
Block size |
5000x1200x1000mm |
Density range |
4.5-30kg/m3 |
Capacity |
10kg/m3: about 9 blocks/hour |
15kg/m3: about 7 blocks/hour | |
20kg/m3: about 5 blocks/hour | |
Steam pressure |
0.6-0.8mpa |
Steam consumption: |
10-15kg/m3 |
Steam inlet DN |
100mm |
Compressed air inlet DN |
40mm |
Compressed air consumption |
1.8-2.2m3/cycle |
Electricity |
380V |
Frenquency |
50HZ |
Power consumption |
25KW |
Overall weight |
12000KG |
Overall size |
66000mmx2150x2950mm |
We assign technicians for the installation of the machine. We prepare enough quick-wear spare parts for the customer. We will help train technicians until the buyer can run the line by themselves. We will also give our customers the best formulation to ensure make the best-quality panels at the lowest cost. If there is anything wrong with the machine because of the machine quality, our technician will go to repair it without any charge.
