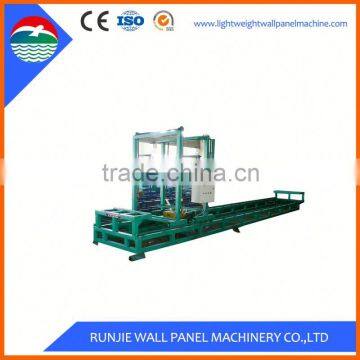

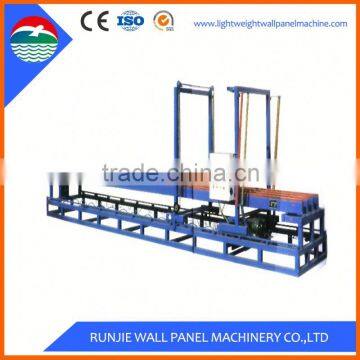

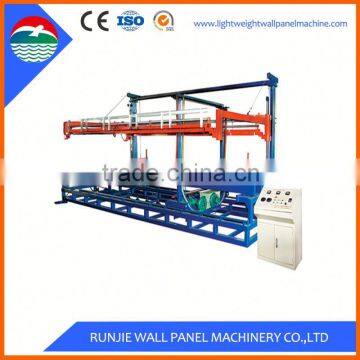

Popular In Brazil 2d Cnc Eps Cnc Cutting Machine

It can achieve three-dimension cutting----horizontal, vertical and cross cutting

Max 30 cutting wires can be manually set in horizontal direction

Max 15 cutting wires can be set in vertical direction

Minimum thickness to be cut

10mm

Suit for cutting Block size:

4000x1300x1300mm(Suit for different density block)

Cutting speed:

0~2m/min

Capacity :

denisity15g/l

block size

4000x1200x1000mm

One Block cutting time

6~8min (2 labors)

15min. (1 labor)

Connect load:

22.3kw

This machine can cut EPS products into different shapes.

It is connected with a laptop or a touch screen. The user can directly use Auto-cad to make the drawing.

20 wires can be put onto the machine. It can cut 20 same products at the same time. (for small products)

Stable performance and precise cutting.

Step-motor is used so the speed can be adjusted according to the user’s requirement.

The tolerance of cutting can be 0.2-0.5mm.

The frame of the cutting machine is made by aluminum alloy. It is lightweight but very strong.

We can also make steel structure according to users' different requirements.
