Specifications
1.nail making machine2.Intelligent control
3.High-speed & stability
4.High quality & durable
5.Economical & Practical
Common Nail making line: [Wire-laying frame]à[Nail making machine]à[Nail washing machine] àpacking
Nail making process:
1. Wire-laying frame
Wire-laying frame is passive driven type, used for pay-off of wire coils for following process.

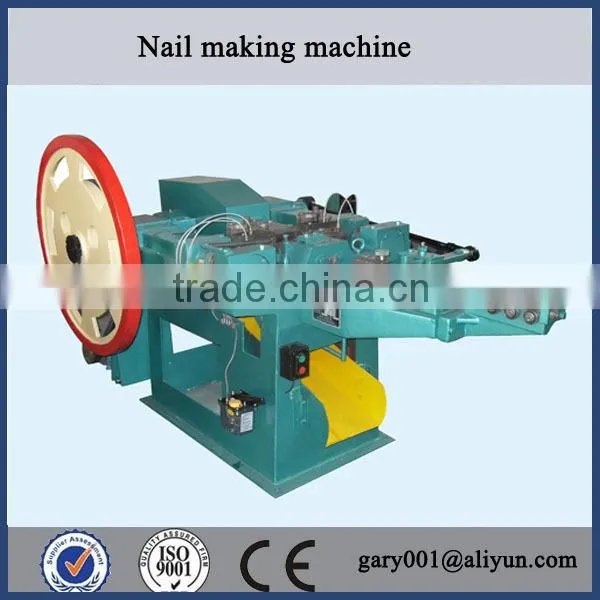

2. Nail making machine
New Generation High Speed Low Noise Automatic Nail Making Machine, adopts plunger and oil pipe lubricating structure so as to ensure the features such as high speed, low noise and less impact. Especially, it can make the high quality of nails and other special nails with certain accessories. The assortment of our products is complete. We will supply various machine parts and necessary fine auxiliaries for you.
2.3 Technical parameter of automatic nail making machine.
Technical data |
unit |
Z94-1C |
Z94-2C |
Z94-3C |
Z94-4C |
Z94-5C |
Z94-6C |
Dia of nail max |
mm |
1.6 |
2.8 |
3.4 |
4.5 |
5.5 |
6.5 |
Dia of nail min |
mm |
0.9 |
1.2 |
1.8 |
2.8 |
3.1 |
3.4 |
Length of nail max |
mm |
25 |
50 |
75 |
100 |
152 |
203 |
Length of nail min |
mm |
9 |
16 |
30 |
50 |
70 |
100 |
Designed capacity |
pcs/min |
550 |
350 |
320 |
280 |
220 |
220 |
Motor power |
kw |
1.5 |
2.2 |
3 |
4 |
5.5 |
11 |
Weight(approx) |
kg |
1200 |
1450 |
1800 |
2000 |
2600 |
5500 |
Output |
kgs/hour |
1.5-13.0 |
3.0-50.5 |
11.5-85.0 |
40.0-209.0 |
54.4-371.7 |
93.5-693.2 |
Overall dimensions |
mm |
1500x1300x1200 |
1700x1300x1400 |
2000x1400x1400 |
2200x1600x1650 |
2600x1700x1700 |
3250x1850x1800 |
3. Nail washing machine
This machine is used for automatic polishing of nails after nail making machine. Once nails are put inside the tank, machine will start high speed rotating to get grease and burrs off nail surface.
