ISO Approved Automatic ZA94-4A Nail Making Machine
US$ 1,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
wxwds
Model Number:
Z94 Series
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Production Line of Nails Making MachineUS$ 1,000 - 8,000MOQ: 1 Set -
Z94 New Generation High Speed Low Noise Automatic Nail Making MachineUS$ 1,000 - 8,000MOQ: 1 Set
-
Z94-2C Automatic Nail Making MachineUS$ 1,000 - 8,000MOQ: 1 Set
-
Wire Nail Making Machine PriceUS$ 1,000 - 8,000MOQ: 1 Set
-
Nail Making Machine South Africa Hot SellUS$ 1,000 - 8,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
wxwds
Model Number
Z94 Series
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
nail machine new-type ,high-speed,low noise,less impacting force
ISO approved Automatic Nail Making Machine(Z94-4A)
Machine Descriptions:
1. This China automatic nail making machine adopts plunger type structure to ensure its high working
Speed, low noise and low impact characteristics.
2. All the main components are made of quality steel, such as shaft, cams and gear.
3. The nails made by the machine will be straight, the point of the nails will be sharp and symmetrical, the
Nails cap will be round, every nail will be perfect.
Material: Normal wire, new metal wire, waste rebar, scrap steel bar, hard-drawn wire, waste electrode,
And other kind of waste steel.

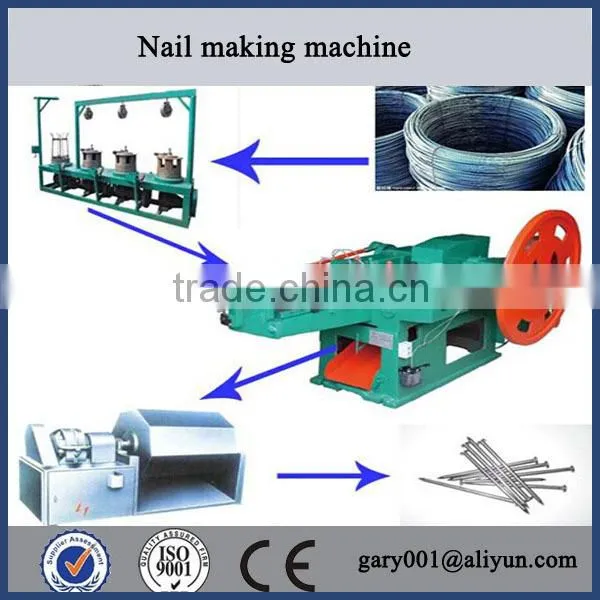

Manufacturing Process:
Steel wire--- wire drawing--- nail making --- nail polishing finished nails
1. Wire Drawing Machine is used to draw the wire to the fine dia we need.
Pointing Rolling Machine is used to make the point of the wire smaller so that it can get through the wire drawing dies before drawing.
2. Nail making machine is used to make nails.
We just need to put the fine dia wire into the entrance of the nail making machine.
It will finish nail making fully automatic.
3. Nail Polihsing Machine is used to make the nail brightening.
Grinder which is used to make the nail knives more sharp.
Maintenance:
1. No adjust when the machine is working
2. Keep the nail making machine clear, wash the nail mould regularly, don't use rust the
Steel wire making nail.
3. Before pull the inlet wire hand shank, the nail making machine should be open in
Advance. Stop inlet wire when you want to turn off the machine keep the nail knife sharp.
4. Note the temperature changes of each rub parts and abnormal noise during machine running.
5. Turn off the powder supply before you fix the machine.
Packaging: Packed by plastic film in pallet or according to client's requirement.
Shipping: Within 15-20days after receiving the prepayment or relevant L/C.
Guarantee and After-sale Service:
1. Warranty: One Year.
2. Enough spare parts of machines could be supplied.
3. Factory Own Designing and Inspection Team.
4. All machines were tested and adjusted before delivery.
5. Engineers avaliable to service machinery overseas: Worker-training, installation. Etc.
6.24 hours technical support by e-mail or calling service.
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 5 senior engineers, 10 senior technicians, more than 100 employees.
1. Our products: Field Fence Machine Welded Wire Mesh Machine
2. Certifications: ISO 9001: 2000, BV certification
3. Main Markets: South Africa, Mongolia, Asia, Duba, Algeria, American, West Europe, etc.
Advantages of our factory:
1)Have cooperated with a lot of importers for more than 10 years;
2)Experienced in doing business with big customers;
3)Own designing team for new products development;
4)Factory audited by BV.
5)Have our own inspection team to do the quality control.
FAQ:
1. MOQ: One Set.
2. Machine Specifications
Could be made as per customers' requirements.
3. Packaging: Packed by plastic film in pallet or according to client's requirement.
4. Payment: 30% TT in advance and pay off the balance against the copy of B/L.
Or L/C at sight, Western Union. Etc.
Machine Descriptions:
1. This China automatic nail making machine adopts plunger type structure to ensure its high working
Speed, low noise and low impact characteristics.
2. All the main components are made of quality steel, such as shaft, cams and gear.
3. The nails made by the machine will be straight, the point of the nails will be sharp and symmetrical, the
Nails cap will be round, every nail will be perfect.
Material: Normal wire, new metal wire, waste rebar, scrap steel bar, hard-drawn wire, waste electrode,
And other kind of waste steel.
Manufacturing Process:
Steel wire--- wire drawing--- nail making --- nail polishing finished nails
1. Wire Drawing Machine is used to draw the wire to the fine dia we need.
Pointing Rolling Machine is used to make the point of the wire smaller so that it can get through the wire drawing dies before drawing.
2. Nail making machine is used to make nails.
We just need to put the fine dia wire into the entrance of the nail making machine.
It will finish nail making fully automatic.
3. Nail Polihsing Machine is used to make the nail brightening.
Grinder which is used to make the nail knives more sharp.
Maintenance:
1. No adjust when the machine is working
2. Keep the nail making machine clear, wash the nail mould regularly, don't use rust the
Steel wire making nail.
3. Before pull the inlet wire hand shank, the nail making machine should be open in
Advance. Stop inlet wire when you want to turn off the machine keep the nail knife sharp.
4. Note the temperature changes of each rub parts and abnormal noise during machine running.
5. Turn off the powder supply before you fix the machine.
Packaging: Packed by plastic film in pallet or according to client's requirement.
Shipping: Within 15-20days after receiving the prepayment or relevant L/C.
Guarantee and After-sale Service:
1. Warranty: One Year.
2. Enough spare parts of machines could be supplied.
3. Factory Own Designing and Inspection Team.
4. All machines were tested and adjusted before delivery.
5. Engineers avaliable to service machinery overseas: Worker-training, installation. Etc.
6.24 hours technical support by e-mail or calling service.
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 5 senior engineers, 10 senior technicians, more than 100 employees.
1. Our products: Field Fence Machine Welded Wire Mesh Machine
2. Certifications: ISO 9001: 2000, BV certification
3. Main Markets: South Africa, Mongolia, Asia, Duba, Algeria, American, West Europe, etc.
Advantages of our factory:
1)Have cooperated with a lot of importers for more than 10 years;
2)Experienced in doing business with big customers;
3)Own designing team for new products development;
4)Factory audited by BV.
5)Have our own inspection team to do the quality control.
FAQ:
1. MOQ: One Set.
2. Machine Specifications
Could be made as per customers' requirements.
3. Packaging: Packed by plastic film in pallet or according to client's requirement.
4. Payment: 30% TT in advance and pay off the balance against the copy of B/L.
Or L/C at sight, Western Union. Etc.
| Items | Units | Z94-1.6A (25A) | Z94-2.8A (50A) | Z94-3A (70A) | Z94-4A (100A) |
| Max Nail Dia | mm | 1.6 | 2.8 | 3.1 | 4.5 |
| Min Nail Dia | mm | 0.9 | 1.2 | 1.8 | 2.8 |
| Max Nail Length | mm | 25 | 50 | 70 | 100 |
| Min Nail Length | mm | 9 | 16 | 30 | 50 |
| Output | pcs/min | 480-520 | 350 | 320 | 260 |
| Motor Power | kw | 0.8 | 2.2 | 3 | 4 |
| Weight | kg | 375 | 1000 | 1500 | 1978 |
| Dimensions | m | 1*0.75*1 | 1.55*1*1.07 | 1.97*1.2*1.2 | 2.4*1.5*1.2 |
