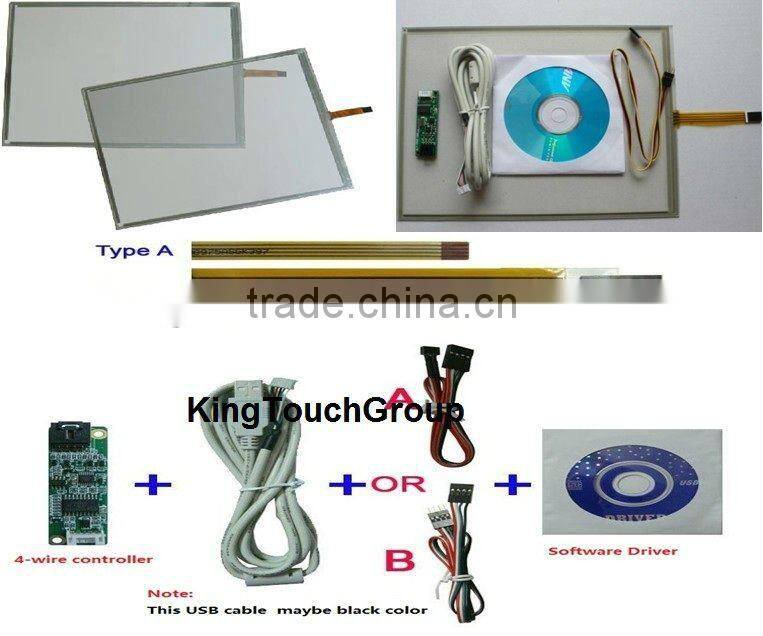

Help CenterPaypal Accepted,USB TFT 22 Inch 4 Wire Touch Panel
Related Products
-
Paypal Accepted,USB TFT 21.5 Inch 4 Wire Touch PanelUS$ 2 - 42.5MOQ: 1 Piece -
Paypal Accepted,USB TFT 20 Inch 4 Wire Touch PanelUS$ 2 - 42.5MOQ: 1 Piece
-
Paypal Accepted,USB TFT 18.5 Inch 4 Wire Touch PanelUS$ 2 - 42.5MOQ: 1 Piece
-
Paypal Accepted,USB TFT 15.6 Inch 4 Wire Touch PanelUS$ 2 - 42.5MOQ: 1 Piece
-
Paypal Accepted,USB TFT 13.3 Inch 4 Wire Touch PanelUS$ 2 - 42.5MOQ: 1 Piece
Specifications
1. 4 wire resistive touch screen2. USB and Long lifetime
3. High accuracy and durability
4. High resolution and sensitivity
Kingtouch Technology Group Limited is specialized in producing Surface Acoustic Wave(SAW) touch screen, Multi-touch Infrared touch screen/IR Touch Panel frame, LCD Touch Kiosk, Interactive touch foil, resistive touch screen, LCD touch Panel PC/ Computor/ bezel Monitor, Touch Tablet PC, Optical touch screen and Capacitive touch screen, Any size of touch panel we can customized for you. Just let us know the requirement. For Multi-touch IR Panel, we can offer Dual-touch(2 points), 6 points, 8 points, 10 points, 12 points,16 points and 32 points, No ghost point. Etc.
Product Description:
4-Wire Resistive touch screen are generally built with two layers of electrically conductive materials (ITO Indium Tin Oxide or ATO Antimony Tin Oxide) separated by insulated dots. When an object touches the device, the two layers come into contact. The contact produces a change in electrical current and is registered as an analog touch event signal. The signal is then sent through the circuit to be converted into a digital signal by the controller for the device to compute the exact location of the touch event.
4-Wire Resitive touchscreen is an outstanding high quality product, suitable for low cost solution. It is inherently of many advantages such as high accuracy, quick response, drift-free, stable and long durability for a life time of 1,000,000 times finger touches. Kingtouch Technology’s 4 wire Resistive touchscreen featured contamination-resistant and waterproof, is designed for the harshest environment such as dust is prevalent or liquid spills, splashes and wash down. It can be touched by finger, gloved finger, leather or stylus pen.
Advantage:
1. Low cost solution, Low power consumption
2. To be activated with any device
3. Finger, gloved hand and stylus activation
4. High accuracy and sensitivity
5. High durability and reliability
6. Contaminant proof and liquid resistance.
Application:
1. Light industrial
2. Home appliances
3. Portable sport devices
4. Access control terminals
5. Portable medical devices
6. Personal computer and office.
Specification:
Size | |
General Size |
3.0 inch to 52 inch, from 24" to 52" is Film + Film, thickness is 0.5 mm |
Custom Size |
2.4 inch to 52 inch, from 24" to 52" is Film + Film, thickness is 0.5 mm |
Fit in with |
Panel display device |
Performance | |
Resolution(Interpolation) |
4096*4096 |
Linearity Error |
<1.5% |
Response Speed |
<10ms |
Mechanical | |
Input Method |
Finger or gloved hand (rubber ,cloth or leather) |
Touch Times |
More than 1 million touches |
Touch Activation Force |
15~70g |
Surface Durability |
Meets pencil hardness 3H (per ASTM D3363) |
Optical | |
Light Transmission |
82% |
Environmental | |
Temperature |
Operating Range: -10°C ~ 60°C |
Storage Range: -20°C ~ 70°C | |
Relative Humidity |
Operating Range: 0%~90% RH (no dew falls) |
Storage Range: 0% to 95% RH (no dew falls) | |
Altitude |
Up to 3,800m |
Electrical | |
Operation Voltage |
Typical +DC 5V, +4.75V to +5.25V |
Power Supply |
USB or PS/2 Interface |
Interface |
Full Duplex USB 2.0 (Full Speed) Plug and play compatible |
Serial RS-232. Baud Rate: 9600, 8 Data Bits, 1 Stop Bit, No Parity | |
Current |
5mA~25mA |
Electrostatic Endurance |
No abnormal appearance after 10kv, 100Ω, 250PF electrostatic used |
Isolation Resistance |
>20MΩ @ DC 25V |
Resistance |
300Ω< X Axis <900Ω, 200Ω< Y Axis <800Ω (Varies with different size) |
Agency Approvals |
CE, FCC, Rohs |
Operation System |
Linux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/ 7 /Mac OS |
