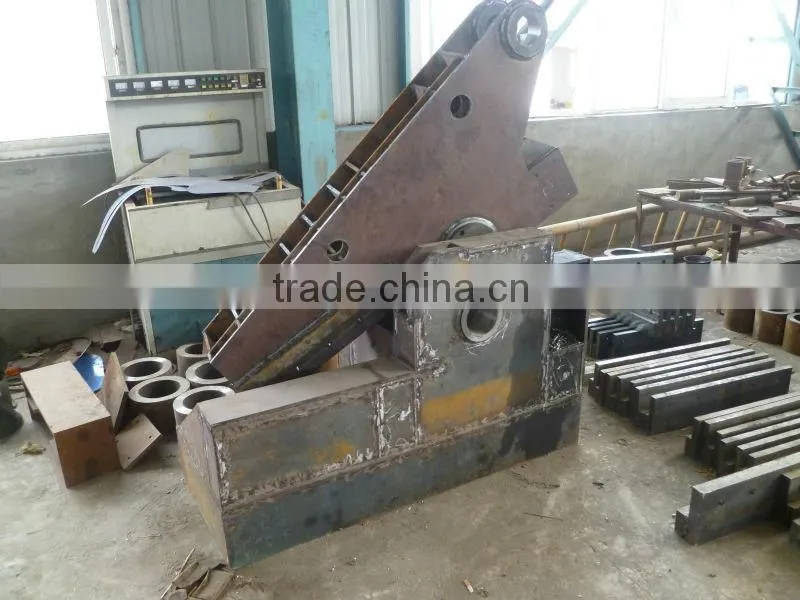

Help CenterFactory Price!!!500T Sheet Metal Hydrauclic Cutting Machine
Related Products
-
Alligator Shearing Machine 200TUS$ 3,099 - 43,899MOQ: 1 Set -
Prompt Delivery Metal Electric Shearing Machinery Number Control Front-feeding Shearing MachineUS$ 5,889 - 18,999MOQ: 1 Set
-
Hydraulic Shearing Machine With Front Feeder,auto Feeding Shearing MachineUS$ 5,889 - 18,999MOQ: 1 Set
-
QC11Y Series Shearing Machine,normal NC Shearing Machine With Front FeederUS$ 5,889 - 18,999MOQ: 1 Set
-
Hydraulic Shearing Machine With Front FeederUS$ 5,889 - 18,999MOQ: 1 Set
1>,Preformance feature
1. Q43 series suitable for metal recycling plants,automobiles and diamantling,smelting casting line. It works for all kinds of shape steel and all kinds of metal structures to cold cut.
2. The machine is all made from steel.It’s vibration treated roil to reduce internal stress to make machine stronger.The drive is hydraulic,stable and reliable.
3. It is bottom structure.It can be fix without foundation bolt.For the place where has no electric power,can matching diesel engine.
4. The working blade length:600mm,700mm,800mm,1000mm,1200mm,1800mm
5. Shearing force divide into eight rank,which suitable for different size requirements of the user to select.
2>,Q43-500T/1200technical parameter
Motor(2set):Y200L-4(country of origin:Jiangsu carter)
Rated power:22KW(single)
Hydrauclic pump(two sets):HY107Y-RP(country of origin:Jiangsu Hengyuan)
Nominal displacement:107ml/r(single)
Rated pressure:31.5Mpa
3>,System working parameter
Max-shearing force:5000KN
Maximum pressing thickness :420KN
Blade length:1200mm
Shear frequency:6times
System working pressure:25Mpa
Maximum open mouth:540mm
Machine size: 3500*1200*1800
4>,Optional configuration
1.Diesel engine as power
2.CoolerHeater
5>,Maximum shearing standard (sectional form, unit:mm)
Steel plate:30×1200/40×800 Angle iron:200×200×16
Box iron:400×104×14.5 Square steel:100×100
Joist steel:400×146×14.5 Round steel:100
Machine size:3500*1200*1800
6>,Pour:
Because of the machine adopts principle magnification structure benchmarking,the shearing knife everywhere are not equal.Specifications listed in the table refer to cut materials tensile strength limitδb≤450MPa.And the maximum shear section size is in the maximum shear force position(close to the shear knife en croute)
