Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > Alligator Shearing Machine 200T

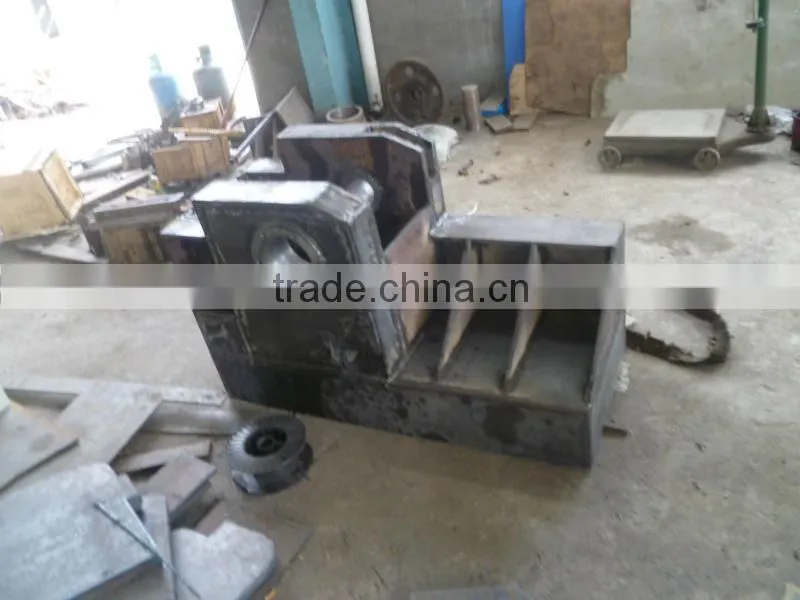

Alligator Shearing Machine 200T

Name: Alligator Shearing Machine 200T
Brand: Baidecnc
SKU: 106254347
Availability: InStock

Alligator Shearing Machine 200T thumbnail-1

US$ 3,099 - 43,899 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Anhui, China

Brand Name:

Baidecnc

Contact Supplier Request Quote Chat Now

Maanshan Baide CNC Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Anhui, China

Brand Name Baidecnc

Model Number Q43Y-200T

Voltage 380V

Rated Power 7.5

Dimension(L*W*H) 2600*950*1600

Certification CE

Warranty one year

After-sales Service Provided Overseas third-party support available

1>,Preformance feature

1. Q43 series suitable for metal recycling plants,automobiles and diamantling,smelting casting line. It works for all kinds of shape steel and all kinds of metal structures to cold cut.

2. The machine is all made from steel.It’s vibration treated roil to reduce internal stress to make machine stronger.The drive is hydraulic,stable and reliable.

3. It is bottom structure.It can be fix without foundation bolt.For the place where has no electric power,can matching diesel engine.

4. The working blade length:600mm,700mm,800mm,1000mm,1200mm,1800mm

5. Shearing force divide into eight rank,which suitable for different size requirements of the user to select.

2>,Q43-200T/1000technical parameter

No.	Parameter name and details			No.	Parameter name and details
1	Max-shearing force		2000KN	2	The stroke of shearing cylinder		360mm
3	Maximum pressing thickness		260KN	4	The stroke of pressure material cylinder		120mm
5	Height of work table		750mm	6	Shearing frequency		6-9times per minute
7	Blade length			1000mm
8	Maximum blade open mouth			360mm
9	Hydraulic system working presure			21MPa
10	Motor	Type		YQB160M-4		Quanity	2 sets
		Rated speed		1460rpm		Power	11KW
11	Hydraulic pump	Type		63YCY14-1B		Quanity	2sets
		Rated output volume		63m1/r		Rated pressure	31.5MPa
12	Machine size	Mainengine size		26009501600
		Auxiliary engine size		150015001400

5>Maximum shearing standard (sectional form, unit:mm)

No.	Shearing material	Standard	No.	Shearing material	Standard
1	Round steel	Diameter 65mm	4	Box iron	12010014mm
2	Square steel	65*65mm	5	Joist steel	11011010
3	Angle iron	11011010(4 sets)	6	Steel plate	20*500mm

6>,Pour:

Because of the machine adopts principle magnification structure benchmarking,the shearing knife everywhere are not equal.Specifications listed in the table refer to cut materials tensile strength limitδb≤450MPa.And the maximum shear section size is in the maximum shear force position(close to the shear knife en croute)
