W11-10X2000 Rolling Machine

W11-10X2000 Rolling Machine thumbnail-1
W11-10X2000 Rolling Machine photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
LIWANG
Model Number:
W11-10X2000 Mechanical Bending Machine
Contact Supplier Request Quote Chat Now
Nantong Liwang Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name LIWANG
Model Number W11-10X2000 Mechanical Bending Machine
Machine Type Roll Forming Machine
Raw Material Sheet / Plate Rolling
Material / Metal Processed Stainless Steel
Power Other, Mechanical
Automation Manual
Extra Services Machining
Certification ISO 9001:2000



Main characteristic

The aircraft structure for the symmetric three-roll, the upper roll which do up and down movements is in the center of the two down rollers, landing exercise by the hydraulic cylinder piston in the rote of the hydraulic fluid botained for hydraulic transmission; the two down rolls for the next rotation. Through the reducer output under the roller gear with the gear mesh for the provision of rolling plate torgue. The disadvantage is the plate with the other end of the pre-bending device.



Main parts:

This machine is mianly composed of working rollers, large forgings and welding structure



Features:

1.the upper roller moves vertically along the perpendicular between tow lower rollers

2.the two lower rollers are ratating and transfering torsion to plate materails so that the metal sheets can be pulled into the roller clearance

3.the machine can rolling metal plates into various shaps, such as arch, round and so on. Whole bending working is based on the rotary deformation. Our rolling machines are widely used in chemical, cement,shipbuilding, boiler,aviation, water control project, power transmission tower, metal structure industry and the industry of making machinery.



Working principle:

W11-10X2000 rolling machine



Parameters

Model Type

W11-10×2000 Mechanical Plate Rolling Machine

Capacity

10mm thickness, 2000mm width

Tensile strength

245Mpa

Rolling speed

4m/min

Minimum rolled diameter under full load

600mm

Upper roller diameter

220mm

Down roller diameter

170mm

Distance between two down rollers

280mm

Main motor power

7.5kw

Assistant motor power

4kw

Motor

Shanghai Lichao

Reducer model

Swing-line type

Electrical elements

Siemens, German

Weight

3500kg

Dimension (L×W×H)

4000mm×840mmX1400mm



other types:

Model

Max. thickness
(mm)

Max. width
(mm)
Max. Bending speed
(m/min)
Workpiece
Min.
 Dia.
(mm)
Top roller
Dia.
(mm)
Bottom roller
Dia.  (mm)
Dis. of bottom rollers
(mm)
Main motor power
(kw)
Net weight
(t)
Overall
Dimensions
(cm)
W11-4*2500
4
2500
4
380
160
140
220
4
1.5
 420*84*125
W11-4*3200
4
3200
4
380
170
150
220
5.5
2.2
 540*84*125
W11-6*1500
6
1500
4
380
160
160
220
4
2.2
 331*121*133
W11-6*2000
6
2000
4
380
170
170
220
5.5
2.8
 381*121*133
W11-6*2500
6
2500
4
500
190
170
250
5.5
4
 431*121*133
W11-6*3200
6
3200
4
500
240
180
280
11
5.5
 520*140*120
W11-8*2000
8
2000
4
450
180
170
220
5.5
3.5
 381*121*133
W11-8*2500
8
2500
4
500
240
180
280
7.5
4.
 450*142*161
W11-10*2000
10
2000
4
500
230
170
280
7.5
4.
 405*142*161
W11-13*1500
13
1500
4
500
200
170
280
7.5
4.2
 350*142*161
W11-12*2000
12
2000
4
500
240
180
280
7.5
4.7
 405*142*161
W11-12*2500
12
2500
4
750
260
220
320
11
5.5
 500*150*180
W11-12*3200
12
3000
4
650
280
240
359
11
8.9
 500*150*180
W11-16*1500
16
1500
5.0
500
240
180
280
11
4.9
 400*150*180
W11-16*2000
16
2000
5.0
750
260
220
320
11
5.5
 450*150*180
W11-16*2500
16
2500
5.0
750
280
240
359
11
7.2
 500*150*180
W11-16*3200
16
3200
5.0
900
340
280
440
15.
12.5
 630*160*190
W11-20*2000
20
2000
5.0
750
280
240
359
11
7
 450*150*190
W11-20*2500
20
2500
5.0
850
330
270
440
18.5
9.5
 560*160*190
W11-20*3000
20
3000
5.0
850
370
280
480
18.5
12.5
 610*160*190
W11-25*2000
25
2000
5.0
850
330
270
440
18.5
9
 510*160*190
W11-25*2500
25
2500
4.5
900
370
280
480
22
13
 600*160*215
W11-25*3000
25
3000
4.0
1200
400
310
550
22
14
 680*180*215
W11-30*2000
30
2000
4.0
1200
370
280
480
22
12
 530*180*215
W11-30*2500
30
2500
4.0
1200
410
360
480
30
15.5
 620*180*215

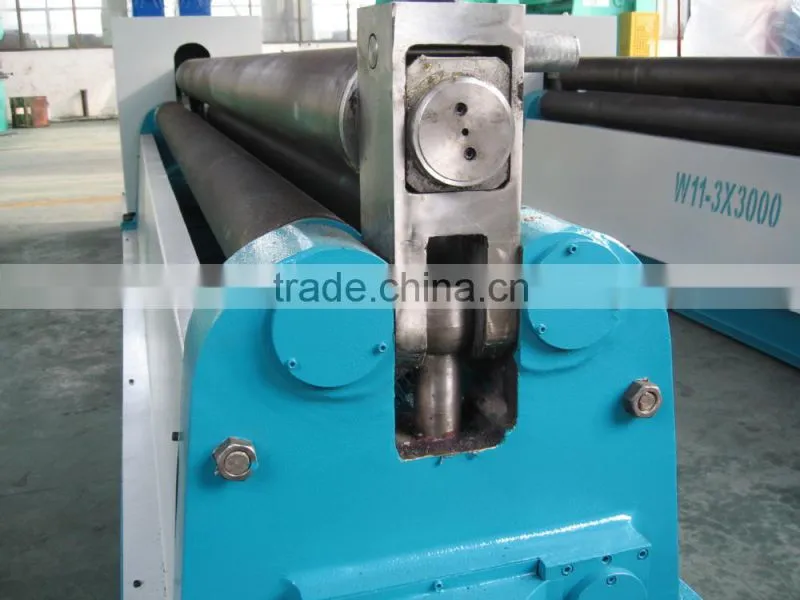

W11-10X2000 rolling machineW11-10X2000 rolling machine

plate rolling machine 10mm
