Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > W12NC Series 4 Rollers Steel Plate Rolling Machine

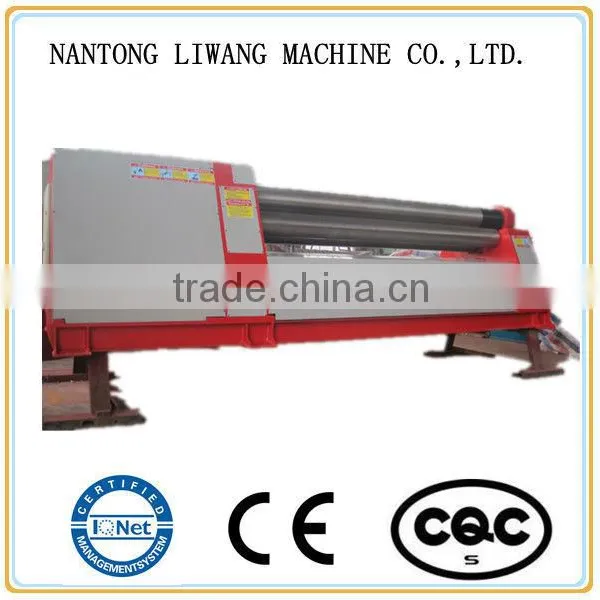

W12NC Series 4 Rollers Steel Plate Rolling Machine

Name: W12NC Series 4 Rollers Steel Plate Rolling Machine
Brand: LIWANG
SKU: 106252631

W12NC Series 4 Rollers Steel Plate Rolling Machine thumbnail-1

W12NC Series 4 Rollers Steel Plate Rolling Machine photo-1

US$ 5,000 - 15,200 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

LIWANG

Contact Supplier Request Quote Chat Now

Nantong Liwang Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name LIWANG

Model Number W12NC

Machine Type Press Brake

Raw Material Sheet / Plate Rolling

Material / Metal Processed Carbon Steel

Power Cnc

Automation Automatic

Extra Services Machining

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

4 rollers steel plate rolling machine
we with the copyright in this series device
for the cone plate roller.

The device is a arc-down rolling machine and controlled by pc. Its a new type and it adopts advanced technology from Switzerland Round company. It feeding plate just one time, dont need to return. And then can to pre-bend the ends of plate and roll into some shape. The 3 rollers are the main drive rollers. Transfer power to 3 working rollers to revolve by motor and gear. The 2 bottom rollers do lifting movement by arc trajectory, the lifting movement controlled by computer, leveling automatically, display by screen, the symmetrical precision attached ±0.2mm. The flip-device installed dumping fuel tank, and it can dump and stand, so it easy to feed plate.

Technical parameters

Specification	Max length (mm)	Max width (mm)	Thickness (mm)	Diameter of upper roller(mm)	Diameter of lower roller(mm)	Central distance(mm)	Driving motor (KW)	Length(mm)	Height(mm)	Width(mm)	Weight(kg)
W12-4×2000	2000	4	4	160	140	120	2.2	3920	860	1140	2.320
W12-6×2000	2000	6	6	190	170	150	3	4020	1250	1380	3.300
W12-8×2000	2000	8	8	210	190	170	7.5	4160	1320	1370	4.200
W12-10×2000	2000	10	10	230	210	180	7.5	4160	1320	1370	4.620
W12-13×2000	2000	13	13	270	250	210	11	4510	1430	1520	6.800
W12-16×2000	2000	16	16	300	270	210	11	4420	1460	1730	7.200
W12-20×2000	2000	20	20	330	300	340	11	4470	1610	1840	9.120
W12-25×2000	2000	25	25	360	330	250	15	4400	2000	2120	10.400
W12-30×2000	2000	30	30	390	360	300	22	4790	2180	2200	18.800
W12-35×2000	2000	35	35	430	390	330	30	4300	2500	2450	24.000
W12-40×2000	2000	40	40	460	420	360	37	4500	2500	2450	32.000
W12-50×2000	2000	50	50	510	460	390	45	4500	3570	3000	45.000
W12-55×2000	2000	55	55	540	510	440	55	6000	3500	3400	51.000
