Copetitive price cnc hydraulic shearing machine
Main Applications, Functions and Features
1. This machine is used for straight sheet material whose tensile strength shall be less than 450N/mm2
2. The machine is equipped with front and back gauge. The whole frame is steel welded , vibrating treatment to remove the internal stress , good rigidity and stability .
3. Adopt interacted hydraulic transmission system.
4. Tandem cylinder ensure the consult of shearing angle when the machine is working.
5. Triple support lead rail to eliminate the gaps , it enhance the shearing quality.
6. The accumulator’s return is stable and fast.
7. Blades clearance adjusted by hand wheel , it’s quick, accurate and convenient.
8. Adjusting shearing angle to reduce the deformation of the sheet .
9. Upper blade holder with inward struture, it’s facilitate to feed the material.
10. Rolling ball device reduce the frictional resistance , at the same time , it can protect the workpiece surface from scratching.
Technical data:
Tell us the thickness and the width, we can recommend you the suitable, contact me
Model |
Max. Shearing thickness (mm) |
Max. Shearing width (mm) |
Diatance between uprights (mm) |
Strokes (n/min) |
Backgauge Stroke (mm) |
Shearing angle (º) |
Working table height (mm) |
Throat depth (mm) |
Main power (kw) |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (mm) |
QXC12Y 4x2000 |
4 |
2000 |
2150 |
20 |
20-600 |
1°30 |
740 |
100 |
4 |
2500 |
1550 |
1520 |
2900 |
QXC12Y 4x2500 |
4 |
2500 |
2700 |
18 |
20-600 |
1°30 |
740 |
100 |
4 |
3100 |
1550 |
1520 |
3400 |
QXC12Y 4x3200 |
4 |
3200 |
3410 |
14 |
20-600 |
1°30 |
800 |
150 |
4 |
3750 |
1680 |
1650 |
5000 |
QXC12Y 4x4000 |
4 |
4000 |
4220 |
10 |
20-600 |
1°30 |
8000 |
150 |
5.5 |
4650 |
1900 |
1720 |
6800 |
QXC12Y 4x4500 |
4 |
4500 |
4720 |
8 |
20-600 |
1°30 |
800 |
150 |
5.5 |
5150 |
1900 |
1720 |
8000 |
Application

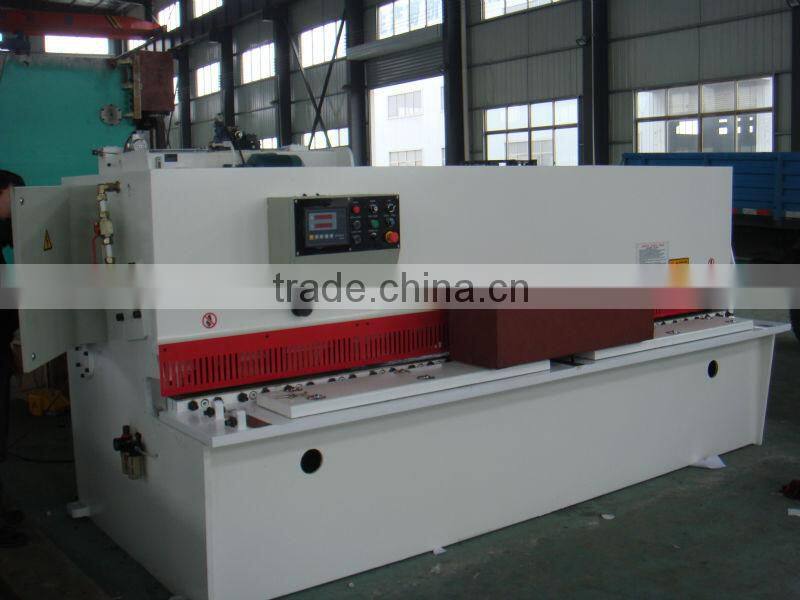

Detail pictures of our hydraulic shearing machine
Back gauge

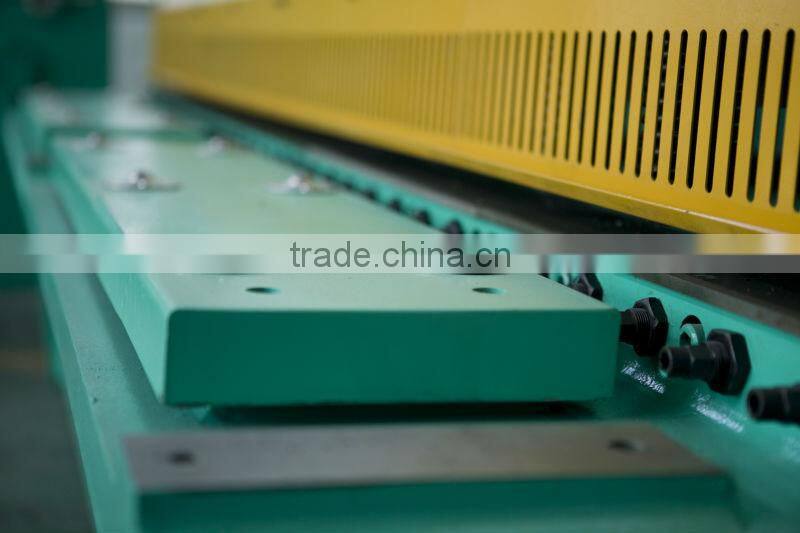

Front support

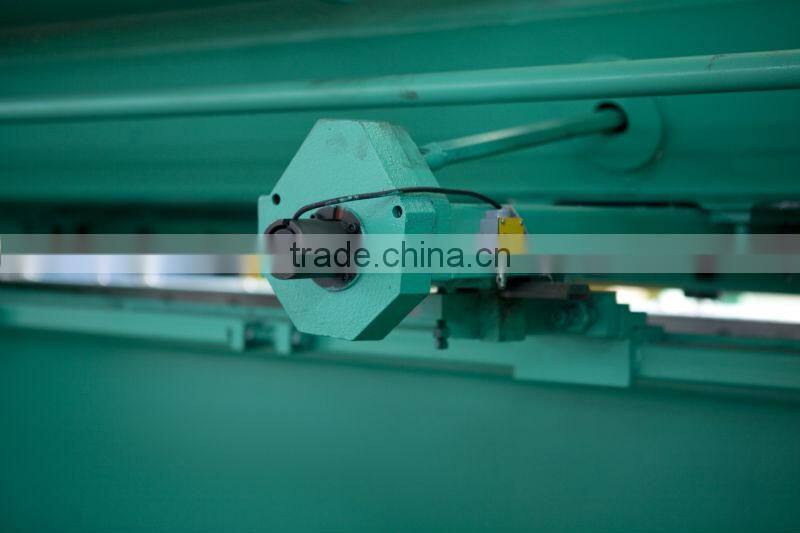

Blade gap adjustment

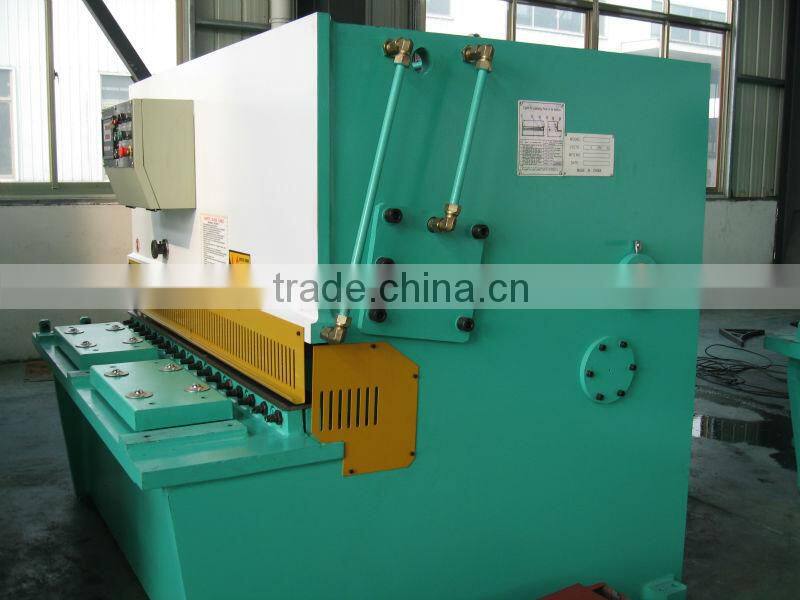

right view
back view
CE certificate
(1)Spare parts:common tool with wear parts
(2)Shippment:Nominal package:20GP, 40GP,40HQ,40OT
(3)Delivery time:15-30days
(4)Payment terms:TT,30% in advance, the balance before shipment
(5)CE certificate
