Tapping Machine

Tapping Machine thumbnail-1
Tapping Machine thumbnail-2
Tapping Machine thumbnail-3
Tapping Machine photo-1

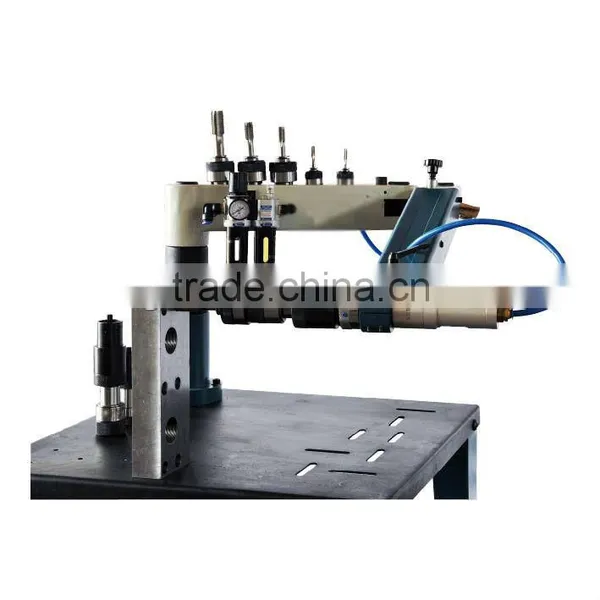

Tapping Machine photo-2

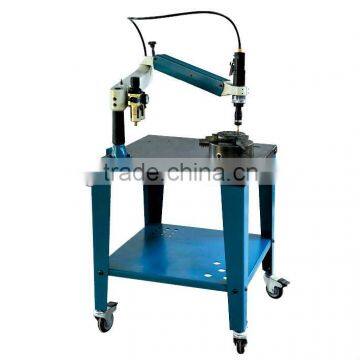

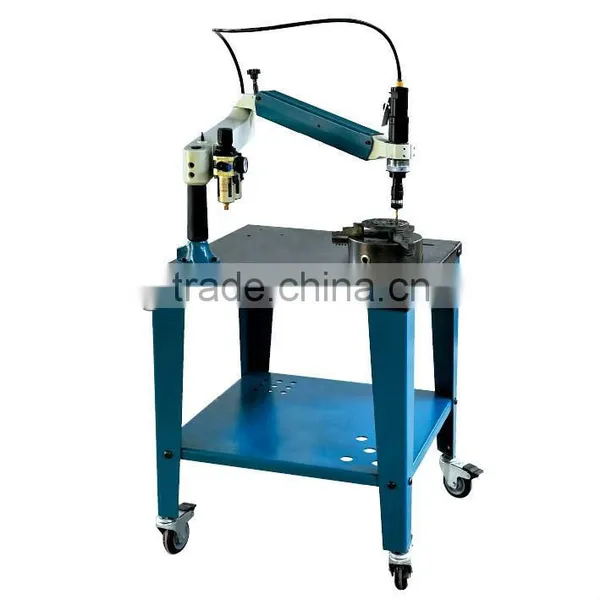

Tapping Machine photo-3
US$ 100 - 1,000 MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
HUG
Model Number:
P-M-H
Contact Supplier Request Quote Chat Now
Jinan Hug Import And Export Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name HUG
Model Number P-M-H

Specifications

Mainly used for thread cutting, chamfering, tighten screws an efficient tool.

Tapping machine can be equipped with up and down, front and back, left and right movement of the mechanical arm, the operating radius, breaking a lathe, drilling, boring and other traditional equipment in space constraints. In thread cutting, the use of tap guide, always maintain the vertical face, no tension and pressure, in a floating state, thus ensuring the accurate geometry of the thread. When used in conjunction with the movable table when used for large parts, complex parts, porous spaces workpiece when cutting threads has unparalleled advantages: flexible, repeat positioning and high accuracy.





Pneumatic Model

HUG-P

Working Radius (mm)

970

Rotation angle (°)

360

Working pressure (bar)

        6~8

6~8

Deceleration mechanism (r / min)

        300

230

Maximum torque (N.M)

         40

61

Clamp attachment size (mm)

         19

19

Tapping capacity (steel, stainless steel)

       M3-M8

M3-M12

Tapping capacity (cast iron, other non-ferrous metals)

       M3-M10

M3-M12





 Machine Taps Shank Diameter parameters



Metric

           ISO

           JIS

          Inch

M2

2.8X2.25

3X2.5

1/8

M3

3.15X2.5

4X3.2

5/32

M4

4X3.15

5X4

3/16

M5

5X4

5.5X4.5

1/4

M6

6.3X5

6X4.5

5/16

M8

6.3X5

6.2X5

3/8

M10

8X6.3

7X5.5

1/2

M12

9X7.1

8.5X6.5

9/16

M14

11.2X9

10.5X6.5

5/8

M16

12.5X10

12.5X10

3/4

M18

14X11.2

14X11

7/8

M20

14X11.2

15X12



M22

16X12.5

17X13



M24

18X14

19X15



M27

20X16

20X15

1/8"PT

M30

20X16

23X17

1/4"PT

M33

22.4X18

25X19

3/8"PT

M36

25X20

28X21

1/2"PT


3/4"PT


1"PT
