1.large compacting ratio;

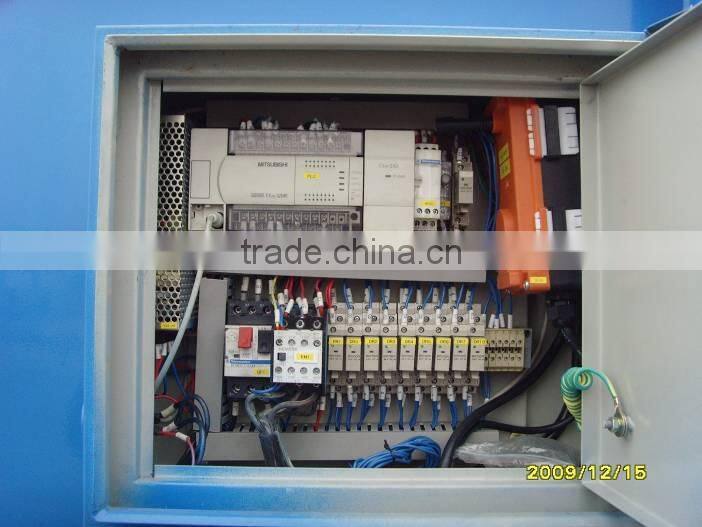

2.PLC control system;
3.only take a park space

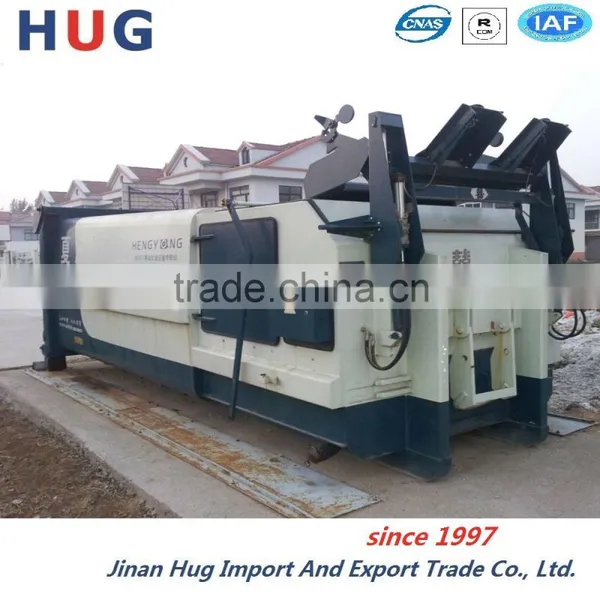

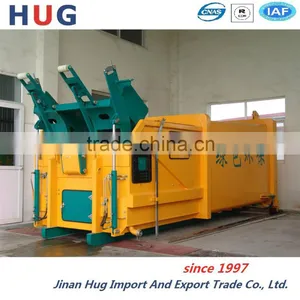

all-in-one small hydraulic garbage compactor
Specification:
Small garbage compressor is mainly used for lower processing requirements,small refuse transfer station.
These garbage compactor are founded by compressor, garbage container. and
supports the use of the special hook truck.
Shinning point:
- Work smoothly, high compress ratio, great transfer efficiency.
- All seal designment, clean and health.
- Use the advanced hydraulic and electrical control technology, automatic feeding, automatic lift door, automatic lock box, automatic compression,full automatic operation.
- Equipped with garbage leachate and take-up device to prevent secondary pollution.
- Small size, simple operate, flexible installation.
Others optional:
Compactor shift system.This system will make shifting box in high-speed accurately, and improve the system operating efficiency.
The compactor above is widly using in relatively concentrated population zone like hotel,community, hospital, courtyard and so on ,for living garbage temporary storage equipment

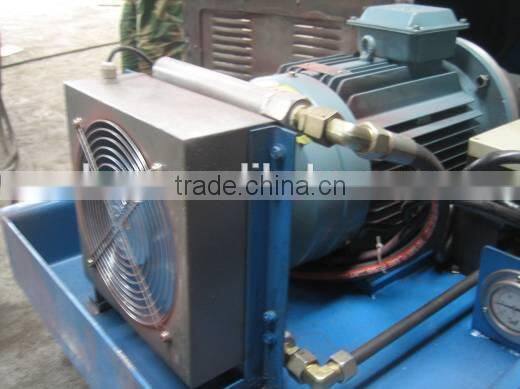

Hydraulic oil cooling system
In order to adapt to the high strength work requirements, design with the hydraulic oil cooling system, the system through the PLC control, effectively control hydraulic system overheating phenomenon occurs, the system in full load operation, the oil temperature is not more than 70 °C, the whole system will not appear the phenomenon of leakage due to overheating
.

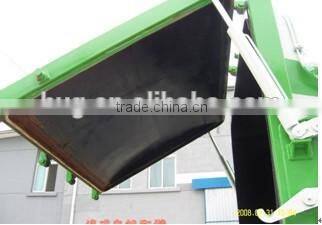

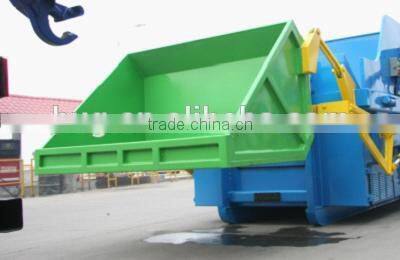

Feeding device:
Volume is 1.3 m3 , width of feed port is 1740 mm, suitable for artificial handjack, tricycle and small dump truck, garbage collection way feeding. Efficiency is higher, is a common flip form

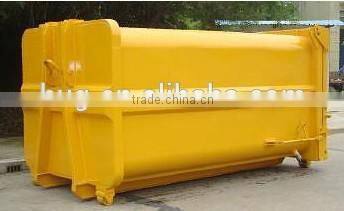

The waste container
The outsize is same as the according compactor,using with the hook truck ,as a spare container when the all- in-one garbage compactor is transported.
The import of this container is on the top.
Hook of the waste container or the garbage compactor.
Connect to the hook of the hook truck.
The back door of the container:
This discharge door using U type double sealing silica gel sealing strip .Open by the extend of the hydraulic cylinder to unload the waste.
Stern door opening and closing of the chassis 24 v power drive independent hydraulic power supply control, in the hook arm car driving indoor control button can achieve tail gate opened and closed.

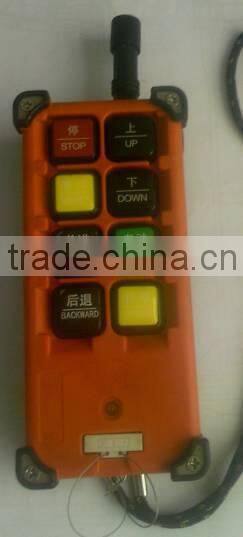

System could beconfigured with the wireless remote control device specially designed, which makes the system more human, remote control distance can be up to 30 m.
All the electrical system of the plug connection are waterproof design, plug firm, neat, beautiful, has the good airtight waterproof function
Transfer by hook truck
:

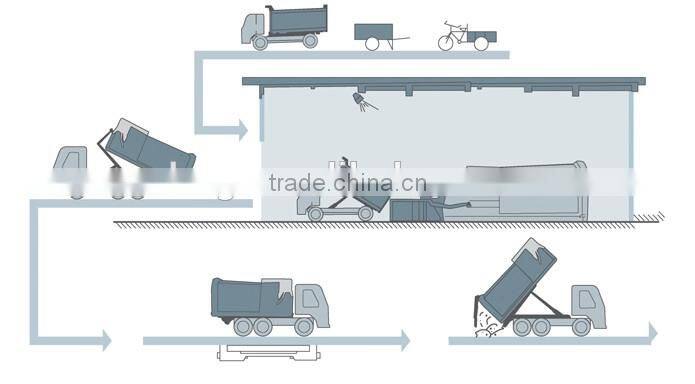

Equipment working process
General Model:

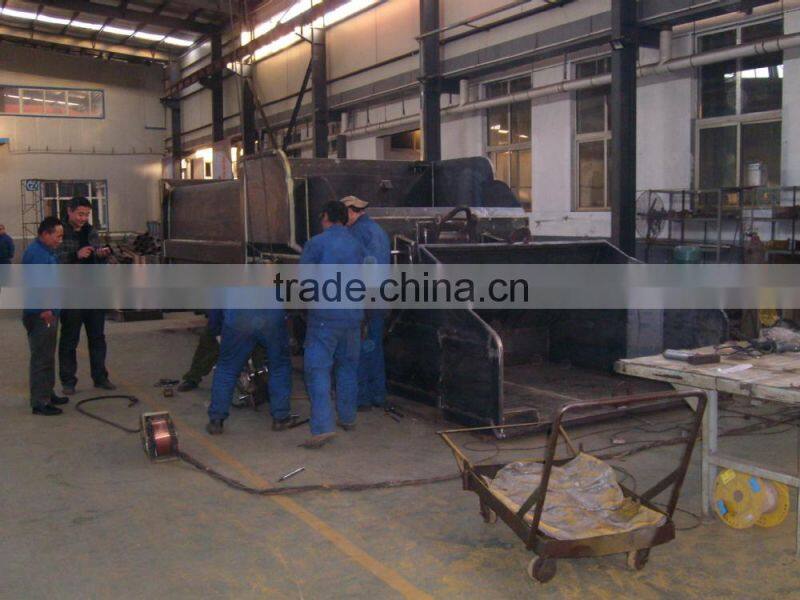

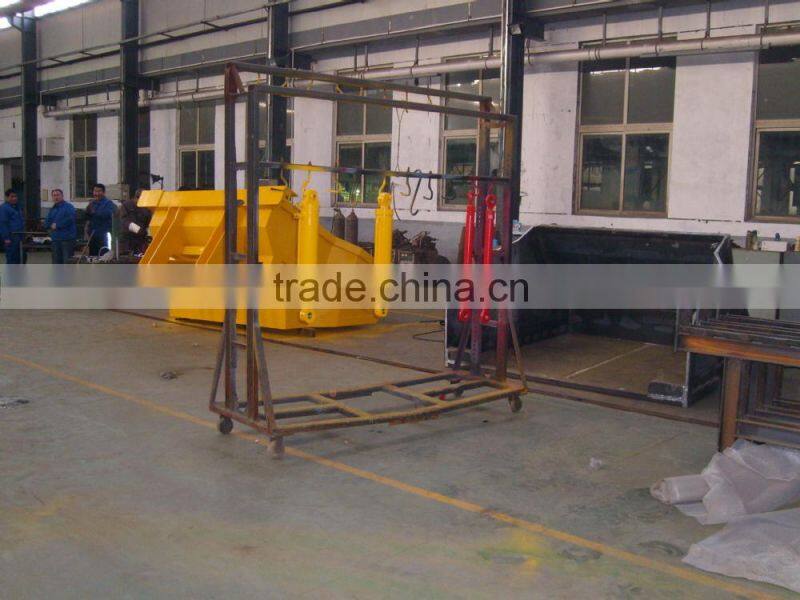

Parts on produing :
Jinan Hug Import And Export Trade Co., Ltd is a comprehensive company R & D, production, trade in one, the company has a professional R & D team and 4 production bases,staff more than 500 people,Including 100 set processing equipments, large machining center, large boring mills,grinding machines etc.with hydraulic, pneumatic and mechanical manufacturing products,widely used in various industries, such as: metallurgy, engineering machinery, ships, forging, machine, coal, petroleum, chemical industry, scientific research, military etc .. Two hours to Qingdao port
We are special garbage compactor manufacturor.There are many type of garbage compactor we could supply
.
Welcome to contact us.
An economic garbage solution will afford you with our funny experience according your fact garbage type and treat volume demand.
