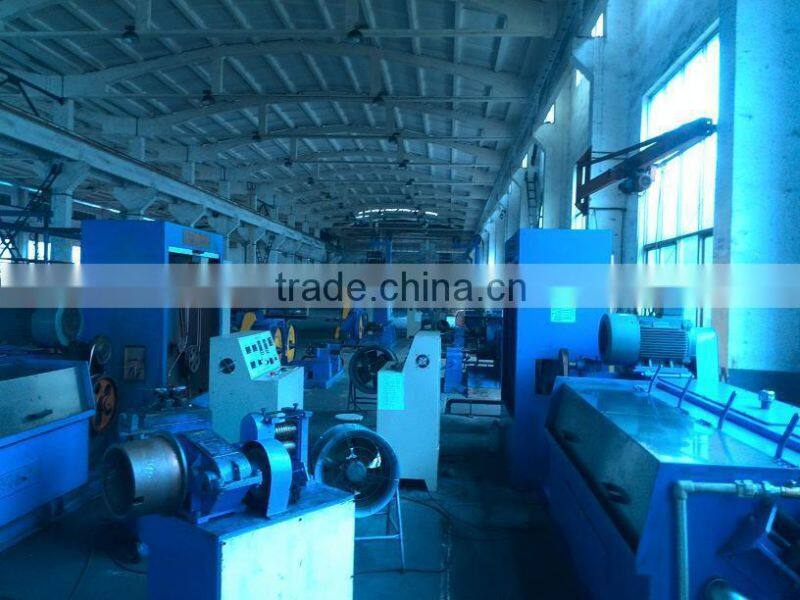

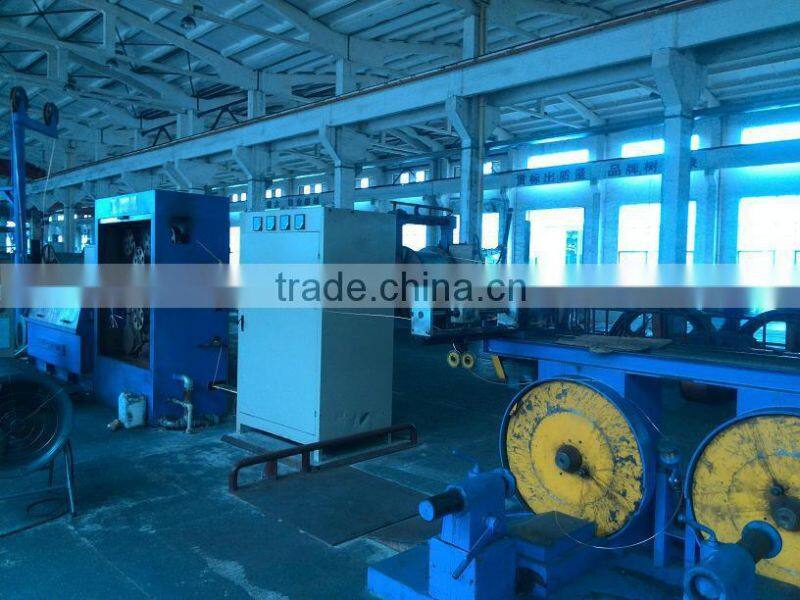

WDS-13DL Aluminum rod breakdown machine Al wire drawing machine Alloy rod breakdown machine SpecificationsWDS-13DL Aluminum rod breakdown machine.Al wire drawing machine, Alloy rod breakdown machine
aluminium wire drawing machine /////cable Aluminum wire drawing machine
I. Application
Aluminum rod breakdown machine
application Aluminum rod breakdwon machine, inlet diameter(mm):Φ9.5, outlet diameter(mm):Φ1.8-Φ4.8
Composition (1) pay-off stand 1 set (2) wire pointing and threading unit 1 set (3) main wire drawing machine 1 set (4) lubrication system and cooling system for main gearbox and drawing oil tank 1 set (5) vertical wire accumulator with tension 1 set (6) double spooler 1 set (7) electric control system 1 set
Main technical data (1) Max inlet diameter(mm): Φ9.5 (2) outlet diameter(mm):Ø1.8-Φ4.8 (3) Max drawing speed(m/s):25 (4) diameter of drawing capstan: Φ450 (5) Max drawing dies No.: 11 (6) Max. length of wire accumulator: 7 meters (7) size of take up spool: SD500-630 (8) speed ratio between capstan:1.238 (9) motor of drawing machine(DC):315KW (10) motor of final capstan(DC): 75KW (11) motor for dual take up unit(AC): 30kw*2PCS (12) installed power: 470KVA
user preparation section (1) civil works and external piping lines work (2) lubricant such as oil and emulsion (3) cooling wanter tank with circulation system (4) Al rod and spool for test run (5) complete set drawing die for test run (6) power supply, wire or cable (7) butt welder
| ||||
