double spool take up machine (double spooler---automatic 0.8mm-4mm )
Main technical parameter
Applicable wire diameter |
0.8mm-4mm |
Max speed |
25m/s |
Max loading capacity |
500kg |
Max length for wire storage |
17m |
Spooler motor power |
90w |
Glide base motor power |
0.75KW |
Control system |
Dual inverter control |
Brake |
Disc brake |
Wire capture coefficient |
.95% |
Compressed air capacity |
0.4-0.6Mpa,50L/min |
Dimension |
3350*3000*2200mm |
Weight |
5300kg |

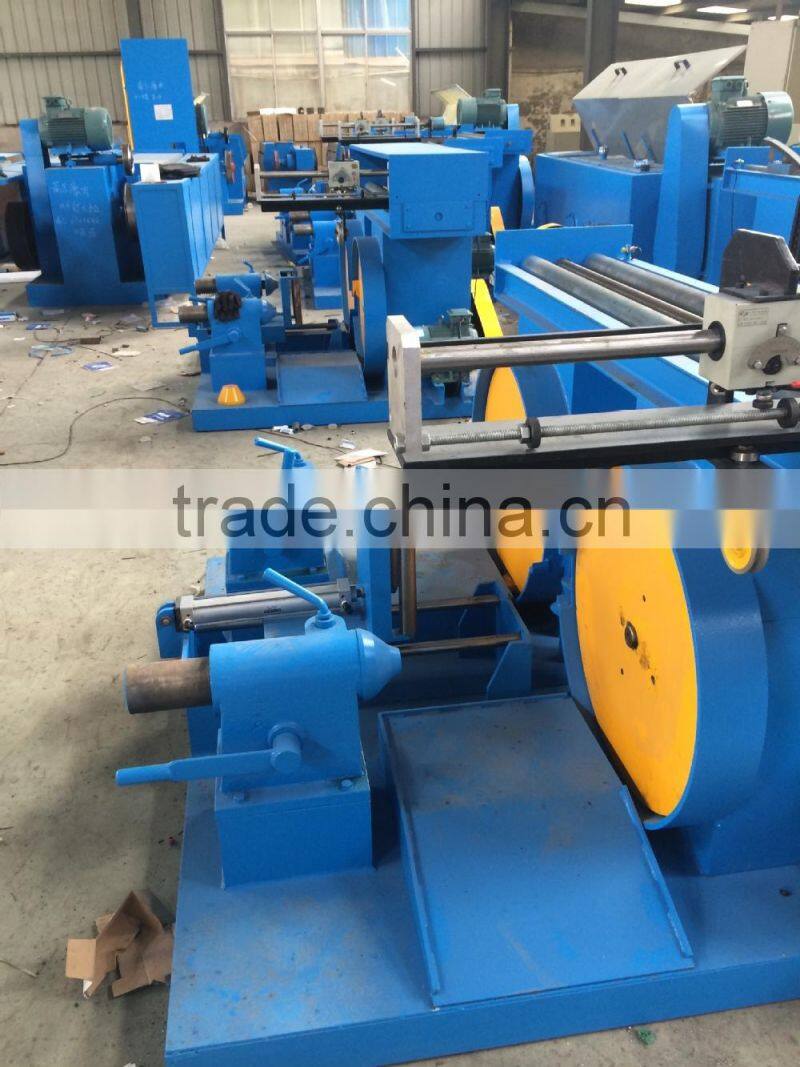

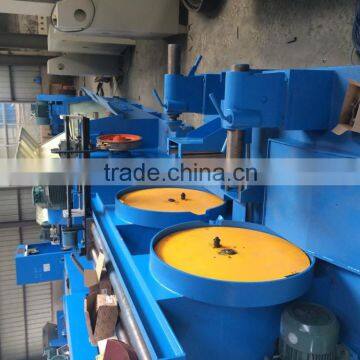

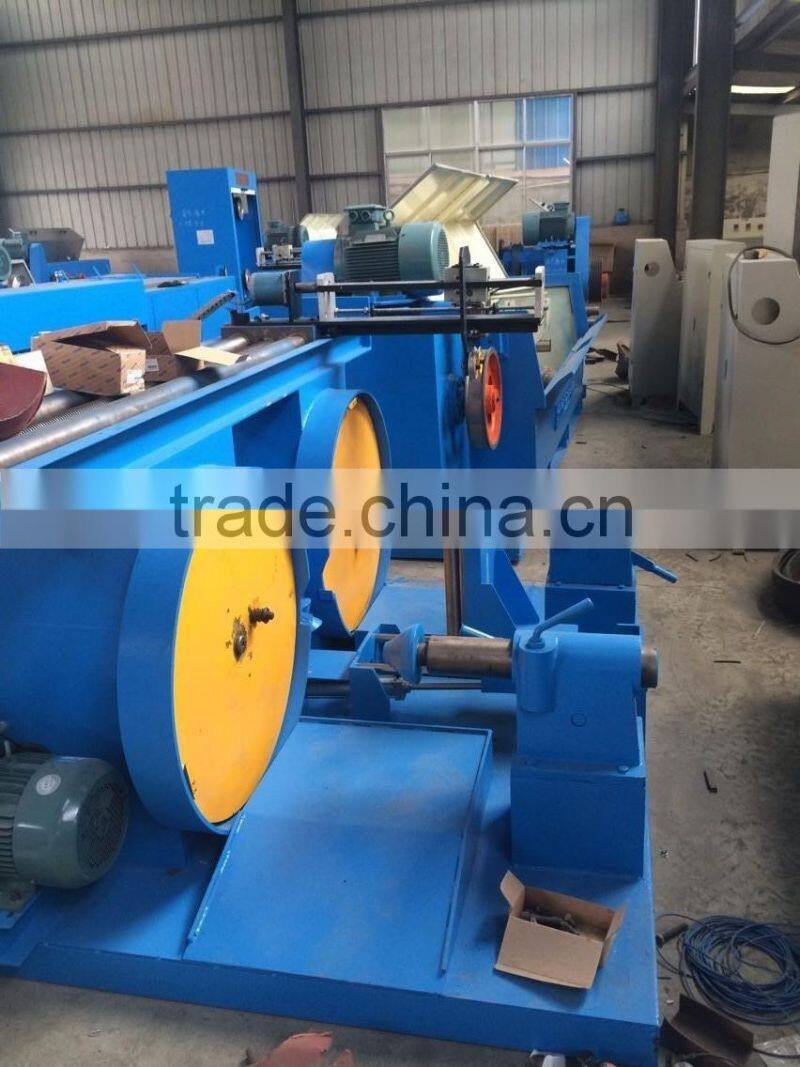

WDS-SX500-630 Automatic dual Take up machine
1.Applicable wire diameter:0.8mm-2.5mm
2.Max. Line speed:25m/s(Adjustable)
3.Loop size:500 mm(Adjustable)
4.Max. Loading capacity of loop:400KG/Max.
5.Max. Length for line storage:17mm
6.Spool motor power:AC15W*2
7.Motor power of line arrangement:90W
8.Motor power of glide base:0.75KW
9.Brake:Disc brake
10.Wire capture coefficient:≥95
11.Compressed air capacity:0.4-0.6Mpa,50L/Min
