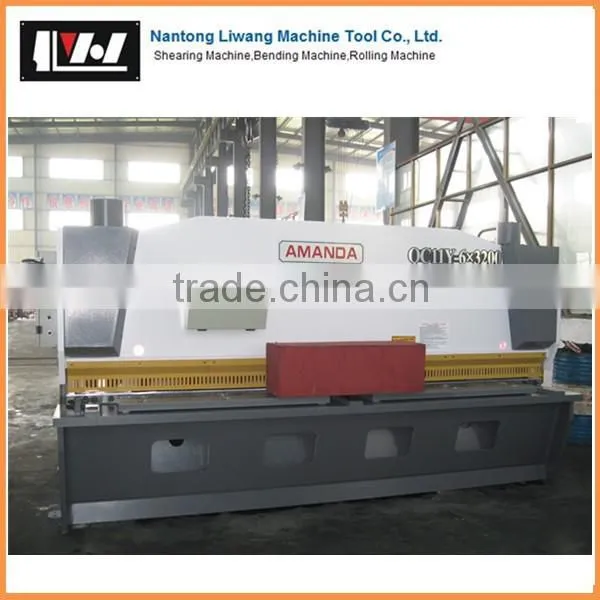

galvanized sheet cutting machine
Standard
control system
Equipment
1. Digital display of back gauge
2. Hydraulic clamping system
3. Finer guard
4. Transfer table
5. Standard squaring arm with disappearing stops
6. Robust frame work
1. Top driven cylinders for all models of shear
2. Working light
3. Motorized back gauge assembly
4.Back gauge lead-screw assembly double-guide rod system
5.Back support
6.shearing stroke and shearing angle adjusted electrically
| General |
| 1.Controller panel is located at left front of machine, machine cut metal sheet from left to right size |
| 2.Motorized adjustable cutting angle, 1-3° |
|
3.Hardened carbon chromium cutting blade, four edges available for cutting, cutting gap can be 4.adjusted manually) two sides back of machine. |
| 5.High precision cutting |
| Standard configuration |
| 1.ESTUN E21 control system |
| 2.shanghai chengjie pump |
| 3.OMEGA valve |
| 4.Standard 100mm high precision ruler |
| 5.Foot switch |
| 6.Tools box |
| 7.Manual |
Optional control system
Customized machine
1.we have standard type machine for optional
2.If you have special requirement of the throat depth, back gauge, cutting length, can be made according to your needs.
3. the standard control system is E21, we also have E10, DA310,DA360 and PLC control system
4. for thin metal plate, we have pneumatic back support for optional
Specification |
Max. shearing thickness |
Max. shearing width |
Shearing angle |
Ram strokes |
Back gauge range |
Motor power |
mm |
mm |
° |
n/min |
mm |
kw |
|
QC11Y-6x2500 |
6 |
2500 |
1°30 |
17 |
20-600 |
7.5 |
QC11Y-6x3200 |
6 |
3200 |
1°30 |
14 |
20-600 |
7.5 |
QC11Y-6x4000 |
6 |
4000 |
1°30 |
10 |
20-600 |
7.5 |
QC11Y-8x2500 |
8 |
2500 |
1°30 |
14 |
20-600 |
11 |
QC11Y-8x3200 |
8 |
3200 |
2° |
10 |
20-600 |
11 |
QC11Y-8x4000 |
8 |
4000 |
2° |
8 |
20-600 |
11 |
QC11Y-10x2500 |
10 |
2500 |
1°30 |
10 |
20-600 |
11 |
QC11Y-10x3200 |
10 |
3200 |
2° |
10 |
20-600 |
11 |
QC11Y-10x4000 |
10 |
4000 |
2° |
12 |
20-600 |
11 |
QC11Y-12x2500 |
12 |
2500 |
2° |
10 |
20-800 |
15 |
QC11Y-12x3200 |
12 |
3200 |
2° |
10 |
20-800 |
22 |
QC11Y-25x3200 |
25 |
3200 |
3° |
5 |
20-800 |
37 |
metal cutting machine

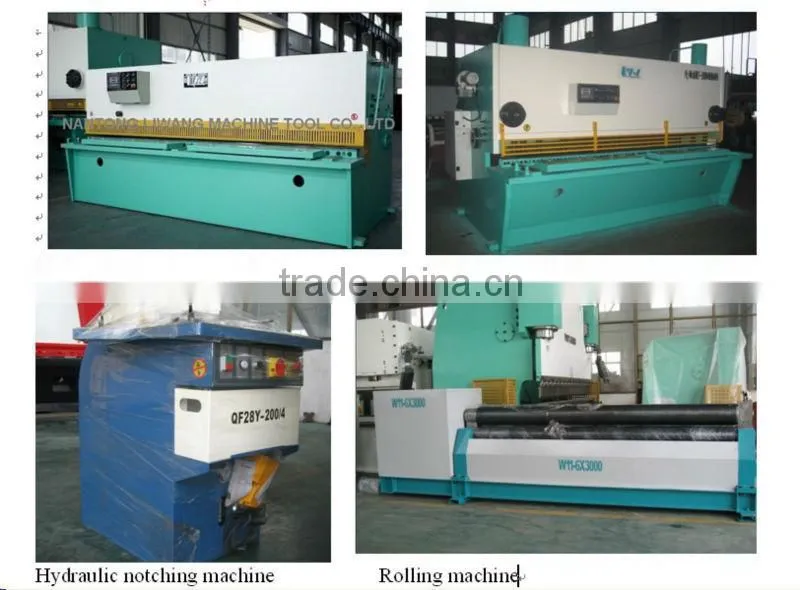

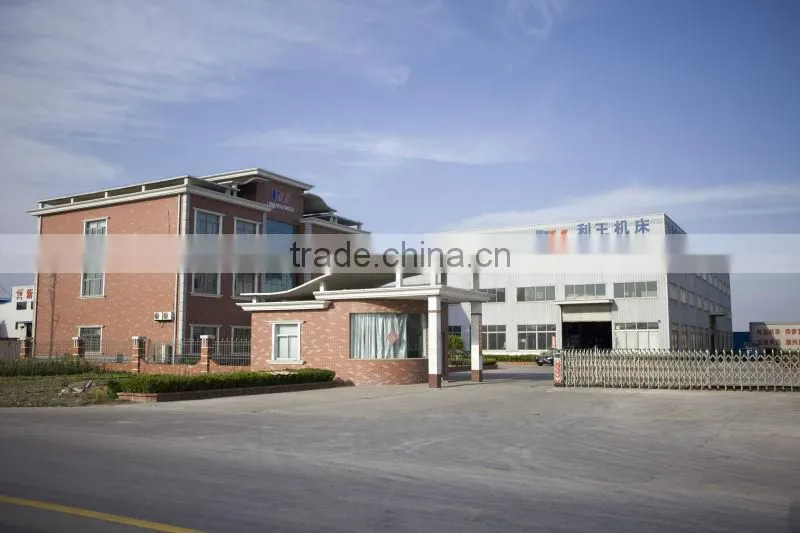

About Us

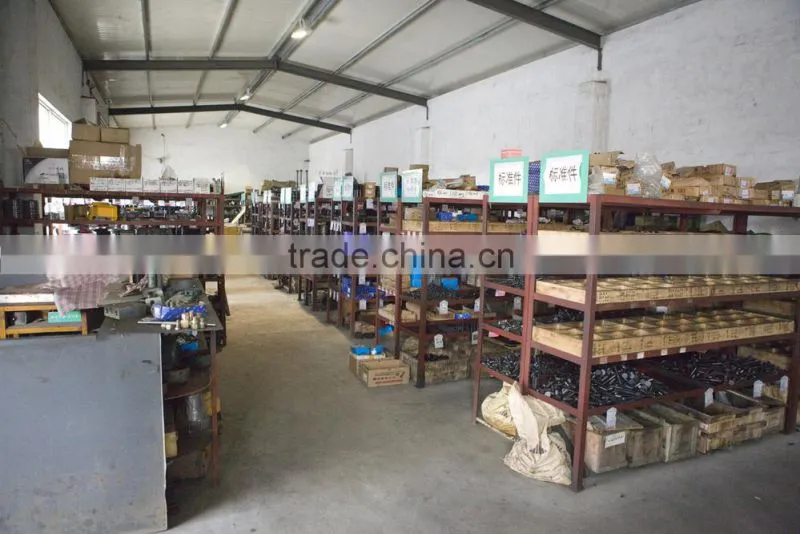

warehouse
How to get a accurate quotation from us ?
1,tell us metal thickness.
2,tell us metal widthness.
How to repair&maintain our machine ?
Generally,the hydraulic machine is not easy to break.even though the problem occur,it is small problem.
we can solve it through email and video.
what policy for broken parts?
within one year,we offer free parts.
if beyond one year,you need to buy by factory cost.
