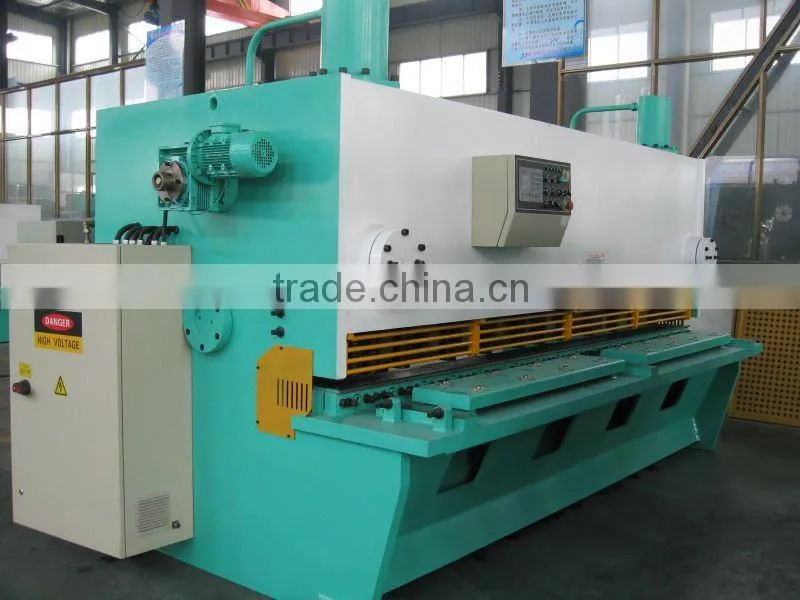

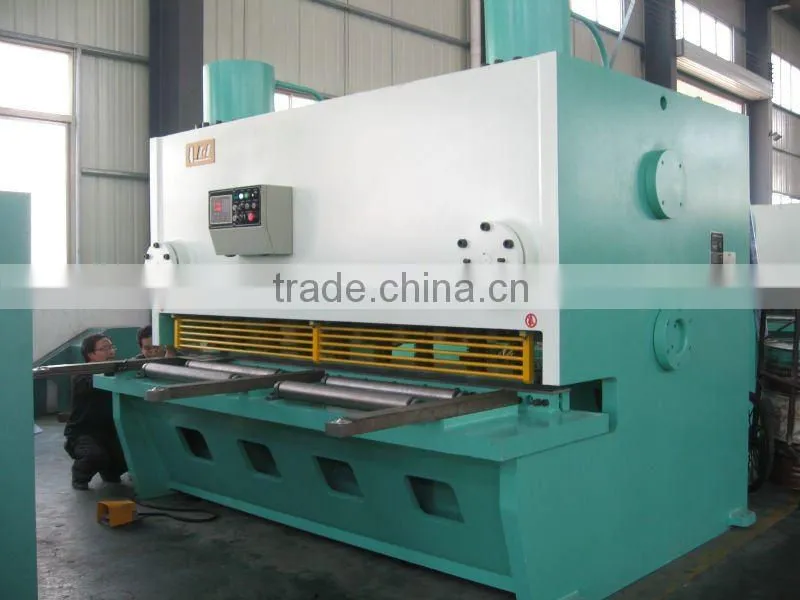

metal cutter machine
1,Features of the machine |
1.Holistic welding structure |
2.Adopt interacted hydraulic transmission system |
3.Triple support lead rail to eliminate the gaps , it enhance the shearing quality. |
4.The accumulator’s return is stable and fast. |
5.Rectangular blades with four cutting edges to prolong working life. |
6.Blades clearance adjusted by hand wheel , it’s quick, accurate and convenient. |
7. Adjusting shearing angle to reduce the deformation of the sheet |
8.Upper blade holder with inward struture |
5.Pneumatic back support is optional |
2,control system |
1.the control system is ESTUN E21, the cutting times is displayed on the screen |
2. Front support and back support for free, pneumatic back support is optional |
3.The cut stroke and cut times can be controlled by the system |
4.the program memory of up to 40 programs, up to 25 steps per program |
5.Chinese/English |
3.Technical data
we have all kinds of shear machine, contact us to get more information
Specification |
Max. shearing thickness |
Max. shearing width |
Shearing angle |
Ram strokes |
Back gauge range |
Motor power |
mm |
mm |
° |
n/min |
mm |
kw |
|
QC11Y-6x2500 |
6 |
2500 |
1°30 |
17 |
20-600 |
7.5 |
QC11Y-6x3200 |
6 |
3200 |
1°30 |
14 |
20-600 |
7.5 |
QC11Y-6x4000 |
6 |
4000 |
1°30 |
10 |
20-600 |
7.5 |
QC11Y-8x2500 |
8 |
2500 |
1°30 |
14 |
20-600 |
11 |
QC11Y-8x3200 |
8 |
3200 |
2° |
10 |
20-600 |
11 |
QC11Y-8x4000 |
8 |
4000 |
2° |
8 |
20-600 |
11 |
QC11Y-10x2500 |
10 |
2500 |
1°30 |
10 |
20-600 |
11 |
QC11Y-10x3200 |
10 |
3200 |
2° |
10 |
20-600 |
11 |
QC11Y-10x4000 |
10 |
4000 |
2° |
12 |
20-600 |
11 |
QC11Y-12x2500 |
12 |
2500 |
2° |
10 |
20-800 |
15 |
QC11Y-12x3200 |
12 |
3200 |
2° |
10 |
20-800 |
22 |
QC11Y-25x3200 |
25 |
3200 |
3° |
5 |
20-800 |
37 |
Working material
Our company:
Founded on Oct. 25, 2004, Nantong Liwang Machine Tool Co., Ltd is a professional manufacturer and supplier of shearing machines, bending machines and rolling machines. Our company is a key enterprise among national engineering industry.
Nantong Liwang manufactures its own brand products, named LiWang. The main products include shearing machine, press brake, plate rolling machine, column hydraulic press, cut-to-length line, and W24 section bending machine.
Our machines are exported to Europe, Middle East, South America, and Africa, Southeast, Asia and other regions.
We have all type of cutting machine: Mechnical cutting machine, hydraulic cutting machine, guillotine machine and so on also press brake machine, rolling machine, profile bending machine, if you do not find the suitable type in this Page, contact us or leave message to us, we will recommend the suitable type for you!
CE
we also have hydraulic press brake machine: https://img13.fr-trading.com/product/60048265442-210804810/wc67y_press_brakes.html
hydraulic swing beam shear machine: https://img13.fr-trading.com/product/60019544703-210739107/QC12Y_series_hydraulic_shear_machine_cnc_metal_plate_shear_machine.html
