shearing widht:1500-9000mm
Application
1).The hydraulic guillotine shearing machien mainly used for the linear cutting of all kinds of sheet metal.
2).This hydraulic guillotine shearer is mainly applied in steel manufacturing, ship, automobile, container manufacturing, and switch electrical appliances, machinery manufacturing, light industry and other industries.
performance
1).All steel welded construction, high strength and good rigidity
2).Two blades are rectangular blades and the blade clearance can be control manually or electrically
3).All major electrical and hydraulic elements are international brands
4).Pneumatic back support is optional
5).warranty:one year
technical data
Specification |
Max. shearing thickness |
Max. shearing width |
Shearing angle |
Ram strokes |
Back gauge range |
Motor power |
mm |
mm |
° |
n/min |
mm |
kw |
|
QC11Y-6x2500 |
6 |
2500 |
1°30 |
17 |
20-600 |
7.5 |
QC11Y-6x3200 |
6 |
3200 |
1°30 |
14 |
20-600 |
7.5 |
QC11Y-6x4000 |
6 |
4000 |
1°30 |
10 |
20-600 |
7.5 |
QC11Y-8x2500 |
8 |
2500 |
1°30 |
14 |
20-600 |
11 |
QC11Y-8x3200 |
8 |
3200 |
2° |
10 |
20-600 |
11 |
QC11Y-8x4000 |
8 |
4000 |
2° |
8 |
20-600 |
11 |
QC11Y-10x2500 |
10 |
2500 |
1°30 |
10 |
20-600 |
11 |
QC11Y-10x3200 |
10 |
3200 |
2° |
10 |
20-600 |
11 |
QC11Y-10x4000 |
10 |
4000 |
2° |
12 |
20-600 |
11 |
QC11Y-12x2500 |
12 |
2500 |
2° |
10 |
20-800 |
15 |
QC11Y-12x3200 |
12 |
3200 |
2° |
10 |
20-800 |
22 |
QC11Y-25x3200 |
25 |
3200 |
3° |
5 |
20-800 |
37 |

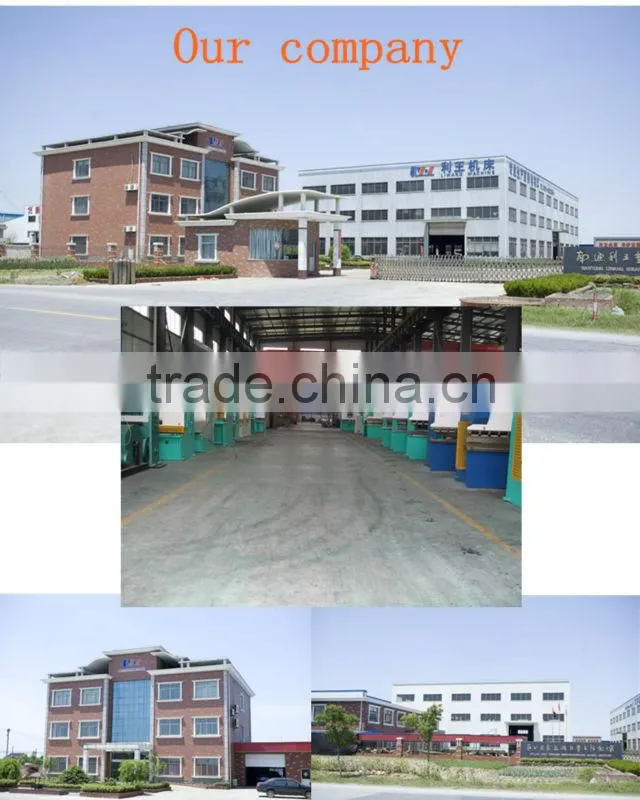

Nantong Liwang machine tool company, is a specialized manufacture of shearing machine and press brake. The products have been widely used in the manufacturing field of defense industry, lifts ships, vehicles, engineering, electrical appliances and so on, having been sold to all over our country and exported to more than 30 countries such as europe, south America, the Middle east, South Africa, South East Asia and so on.
....
