Metal Plate Cutting Machine With Good Service

Metal Plate Cutting Machine With Good Service thumbnail-1
Metal Plate Cutting Machine With Good Service photo-1
US$ 4,000 - 15,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
LIWANG
Contact Supplier Request Quote Chat Now
Nantong Liwang Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name LIWANG
Model Number QC11Y
Voltage Customized
Rated Power according to per machine
Dimension(L*W*H) according to per machine
Weight According to per machine
Certification CE ISO
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

This machine is used for shearing of steel plates with thickness of 0.5-6mm and width of 3200mm.
The strength of the plates to be shorn should be 450N/mm2,If the plates of other strength are to be shorn, the thickness of them should be adjusted.

SPECIFICATIONS FOR metal plate cutting machine
1
Max shearing thickness
mm
0.5-6
2
Max shearing width
mm
3200
3
Distance between uprights
mm
2600
4
Strokes
n/min
14
5
Shearing angle
°
0.5-1.5
6
Back gauge stroke
mm
20-600, larger optional
7
Main power
KW
7.5
8
Length
mm
3800
9
Width
mm
1550
10
Hight
mm
2000
11
Weight
mm
6800

Technical data

Just contact us to get more information!
Specification
QC11Y-6x2500
QC11Y-6x3200
QC11Y-8x2500
QC11Y-8x3200
QC11Y-10x2500
QC11Y-10X3200
QC11Y-12X3200
QC11Y-12x3200
Shearing thickness
6
6
8
8
10
10
12
16
Shearing width
2500
3200
2500
3200
2500
3200
3200
3200
Distance between uprights
2730
3430
2730
3440
2720
3440
3430
3530
Strokes
17
14
14
10
6
10
10
7
Backgauge
20-600
20-600
20-600
20-600
20-600
20-600
20-800
20-800
Shearing angle
0.5-1.5
0.5-1.5
0.5-1.5
0.5-1.5
0.5-1.5
0.5-1.5
0.5-2
0.5-2
Main power
7.5
7.5
7.5
11
11
11
22
22
Length
3100
3800
3150
3850
3100
3850
3900
4100
Width
1450
1550
1600
1750
1750
1750
2000
2300
Height
1950
2000
2000
2000
2000
2000
2300
2600

Main Features

1) Holistic welding structure

2) The return storke is complete by nitrogen return cylinder.

3) The machine is of good steadiness and safety while in use.

4) It does not occupy much space and is of low weight and good rigidity.

5) Both the upper and lower blades are rectangular, and the blade clearance can be adjusted manually or electrically rapidly.

Certifications

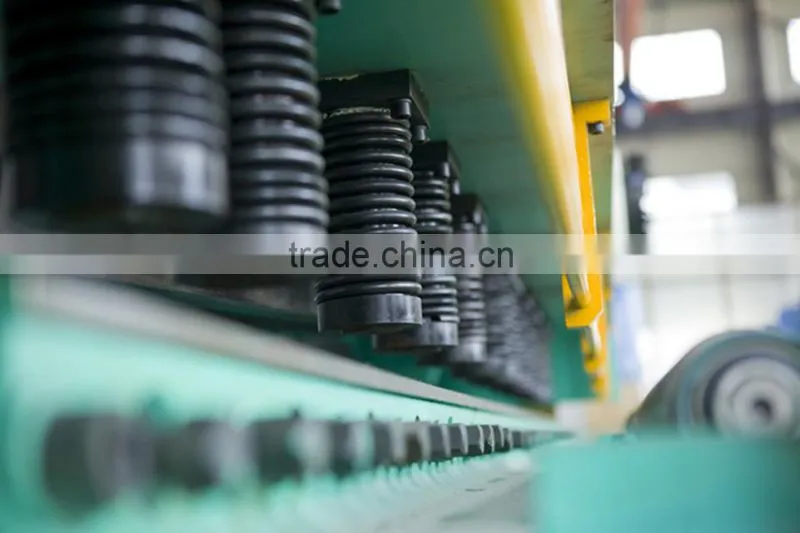

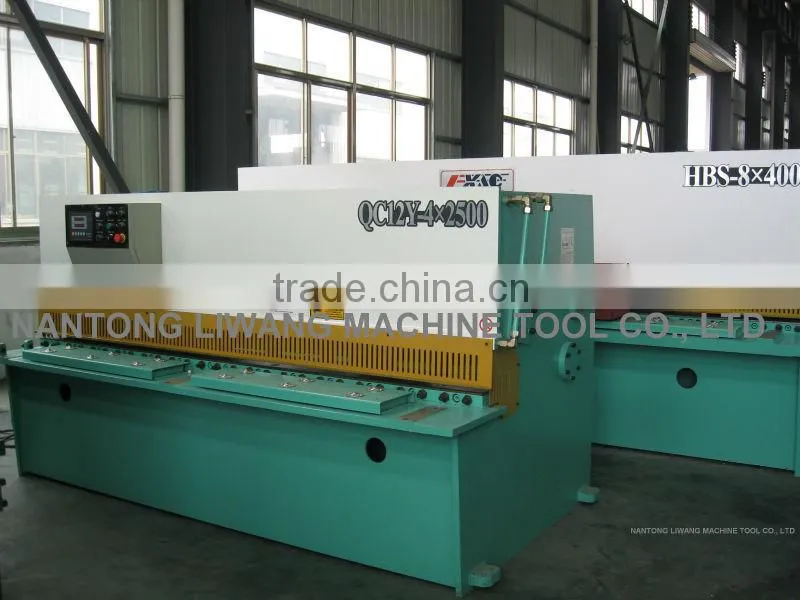

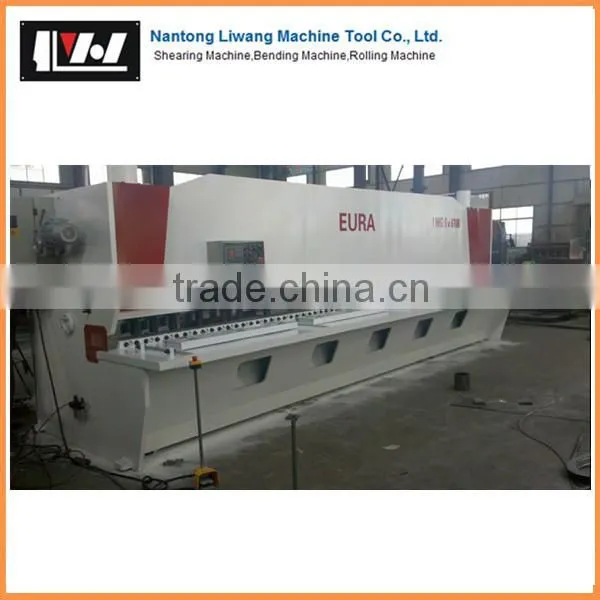

Detailed Images
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
20GP container
Weight
6.8 T



Packaging Details
The normal package is plastic covered,
fix the machine on the container, we can also packaging according to your requirement.
Related Products

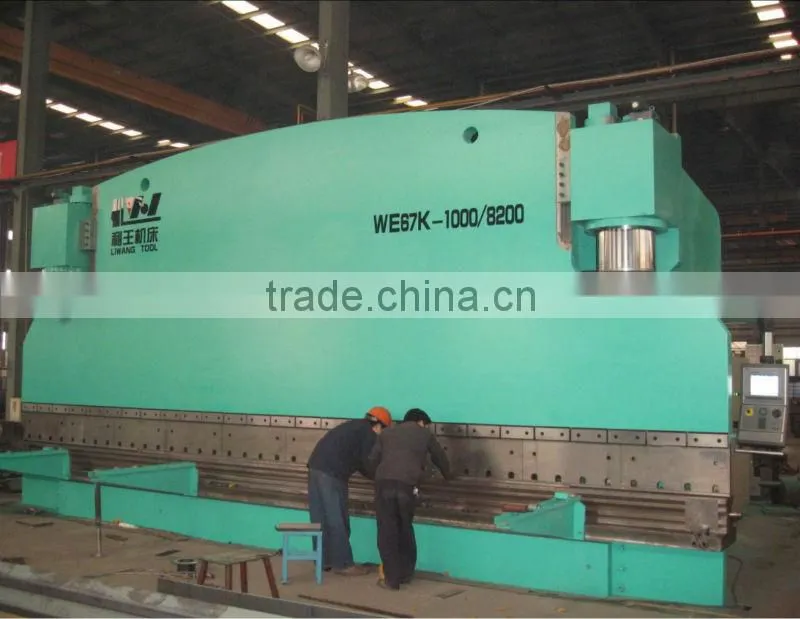

Hydraulic press brake
