1. General Introduction (main features)
1.1.1 High rigidity and precision frame, nodular cast iron body:
Internal stress of the body has been eliminated through heat treatment, ensuring a long-time working stability of the machine.
1.1.2 Force evenly stressed on structural parts, balanced rigidity.
1.2 High accuracy:
Main components as crankshaft, gears, drive shafts and other parts are hardened by heat treatment before machine-shaping, ensuring stable and accurate performance for a longtime.
1.3 Safe and reliable operation
1.4 Automatic manufacturing process saves human input and improves production efficiency.
Automatic feeding device provides services as feeding error detection,plate sharing, contributing to
automatic producing process.Reduce costs and improve production efficiency.
1.5 Environmental friendly and novel design.
2.Main parameter
Specification |
J23-16T |
||
Nominal force(kn) |
160 |
||
Nominal force stroke(mm) |
5 |
||
Slider stroke(mm) |
60 |
||
Stroke frequency(times/min) |
110 |
||
The largest closed height(mm) |
220 |
||
Closed height adjustment(mm) |
50 |
||
|
Distance between slider center and the fuselage
|
180 |
||
Work table size |
F-B(mm) |
300 |
|
|
L-R(mm) |
450 |
|
Diameter of blank-holding hole |
F-B(mm) |
130 |
|
|
L-R(mm) |
200 |
|
|
diameter(mm) |
120 |
|
Slider bottom size |
F-B(mm) |
130 |
|
|
L-R(mm) |
220 |
|
Hole size for die handle |
diameter(mm) |
40 |
|
|
Depth (mm) |
60 |
|
The distance between columns (mm) |
170 |
||
Nat distance between work table to guide rail (mm) |
250 |
||
Backing board thickness(mm) |
45 |
||
Body tilting angle( °) |
30 |
||
Motor |
rate(kw) |
1.5 |
|
|
speed(r/s) |
1410 |
|
Frame dimension |
L-R(mm) |
1100 |
|
|
F-B(mm) |
780 |
|
|
height (mm) |
1800 |
|

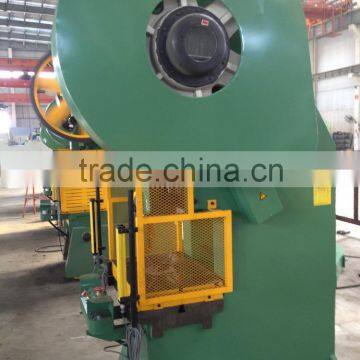

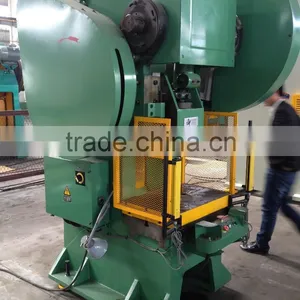

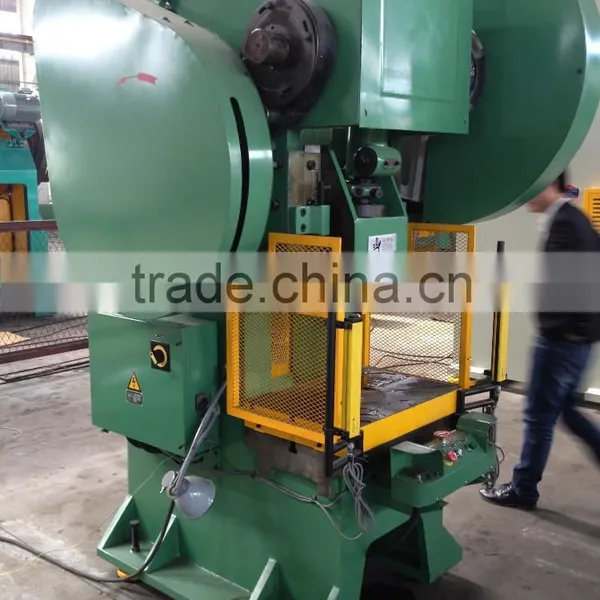

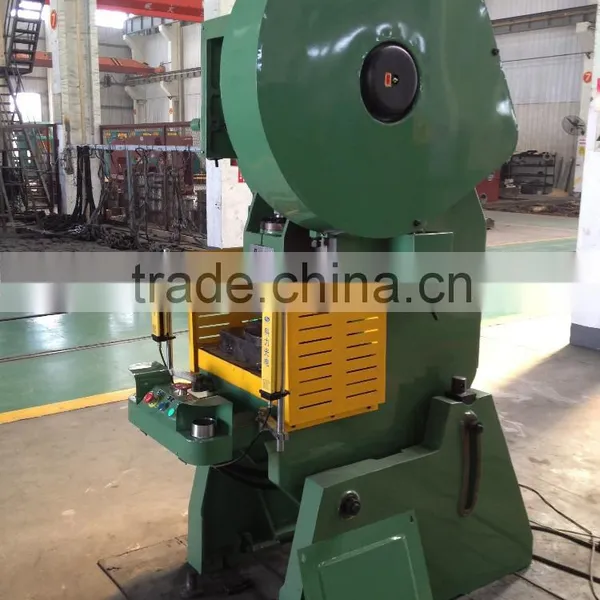

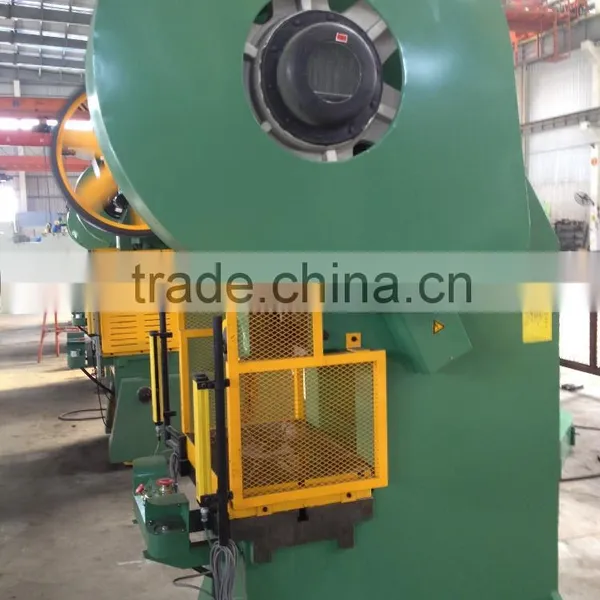

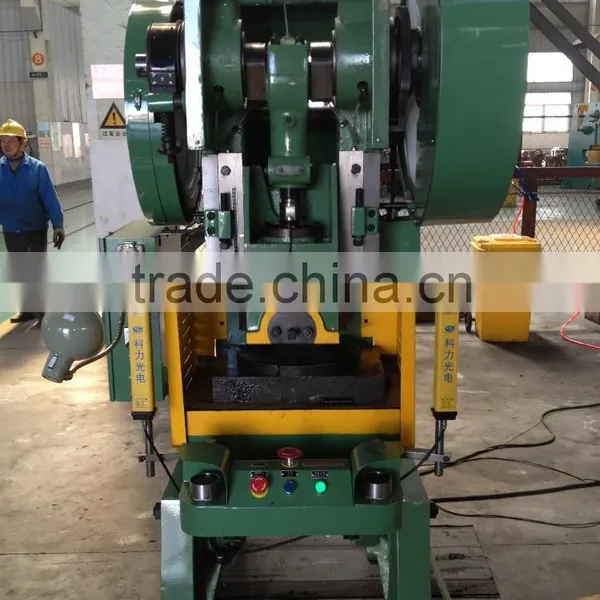

3.Pictures

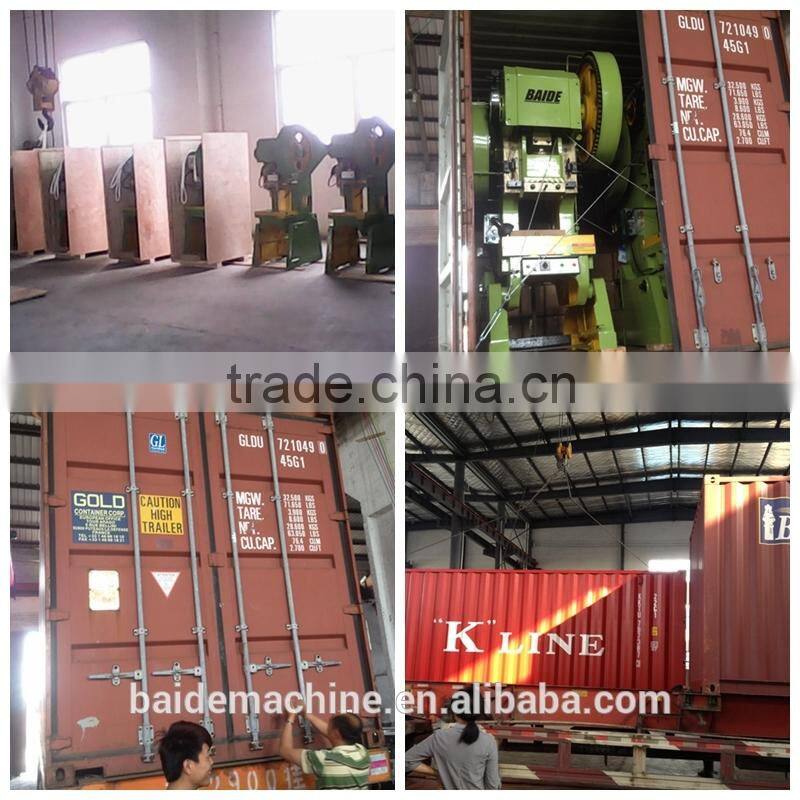

Standard exporting package or according your demand
1, inner machine, it is packaged in moisture-proof film.
2, pallet or wood box.
3, ground fixed bolt to confirm steady and avoid destroy.
4, tightly exporting standard bell to fasten machine in container.
5.Within 20 days after receive deposit
We supply 1 year Warranty and after 1 year, technical support will also be provide.Local support is also available

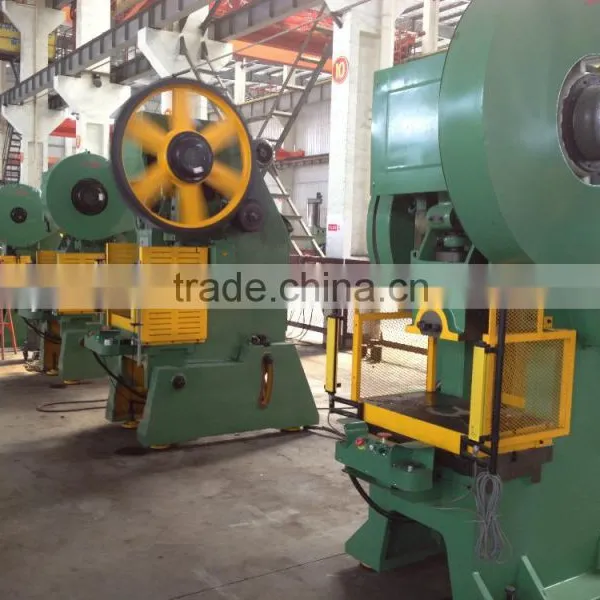

Factory
Foreign visitor
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: Bowang industry park,Maanshan City,China
Our factory is near Nanjing Lukou Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 11 year, export proportion 50~60%.
Q4:How can i trust your company?
A:With 11-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Nanjing Lukou airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears,iron work.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on
superior product and service.
