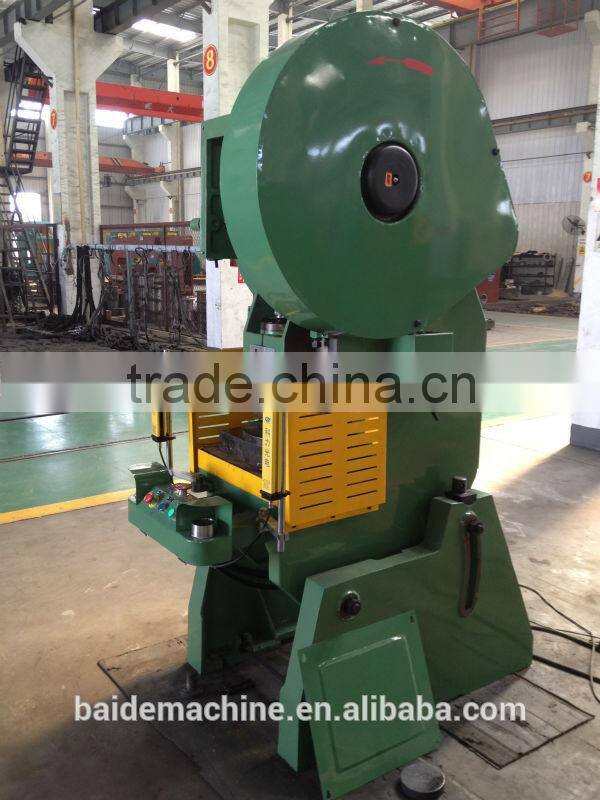

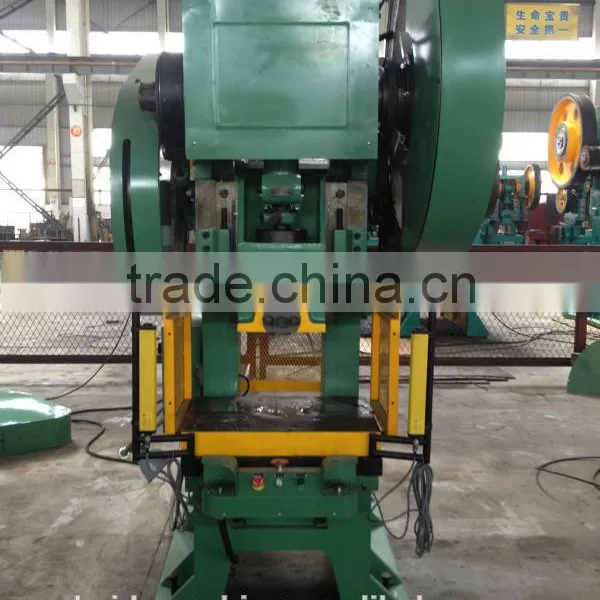

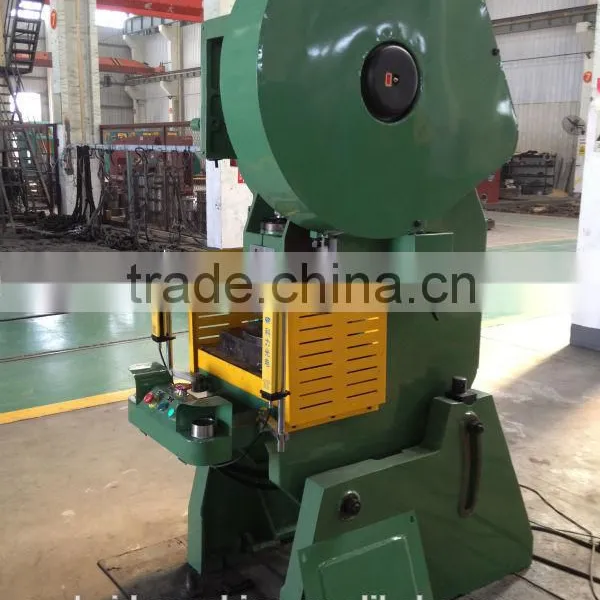

J23-60T80T hole stamping press machine for aluminum profilestainless steeliron with high speed
- 100 Set / Sets per Month
- Shanghai
- T/T
-
Professional High Precision Wide Application J23-25 cnc turret punching machines
-
High Precision Wide Application J23-25 c frame punch press
-
Professional High Precision Wide Application J23-25 hydraulics
-
High Precision Wide Application J23-25 c frame fixed table punching machine
-
Factory Sale High Precision Wide Application J23-25 construction material making machine
-
High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
| Condition: | New | CNC or Not: | Normal | Power Source: | Mechanical |
| Place of Origin: | Anhui, China | Brand Name: | Baide | Model Number: | J23-25T |
| Voltage: | 220V-380V,according to clients country | Power(W): | 2.2KW | Dimension(L*W*H): | 1100mm*780mm*1800mm |
| Certification: | CE | Warranty: | one year warranty | After-sales Service Provided: | Overseas third-party support available |
Product Description
1. General Introduction (main features)
1.1.1 High rigidity and precision frame, nodular cast iron body:
Internal stress of the body has been eliminated through heat treatment, ensuring a long-time working stability of the machine.
1.1.2 Force evenly stressed on structural parts, balanced rigidity.
1.2 High accuracy:
Main components as crankshaft, gears, drive shafts and other parts are hardened by heat treatment
before machine-shaping, ensuring stable and accurate performance for a longtime.
1.3 Safe and reliable operation
1.4 Automatic manufacturing process saves human input and improves production efficiency.
Automatic feeding device provides services as feeding error detection,plate sharing, contributing to automatic
producing process.Reduce costs and improve production efficiency.
1.5 Environmental friendly and novel design.
2.Main parameter
Specification | J23- 16T | J23- 25T | J23- 40T | J23- 63T | J23- 80T | J21- 100T | J21- 125T | |
Nominal force(KW) | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | |
Nominal force stroke(mm) | 5 | 5 | 6 | 6 | 8 | 9 | 10 | |
Slide stroke(mm) | 60 | 70 | 100 | 100 | 120 | 130 | 140 | |
Stroke frequency(times/min) | 110 | 70 | 55 | 60 | 50 | 45 | 45 | |
The largest closed height(mm) | 220 | 260 | 320 | 330 | 380 | 380 | 400 | |
Closed height adjustment(mm) | 50 | 60 | 80 | 80 | 100 | 100 | 100 | |
Distance between slider center and the fuselage
| 180 | 190 | 230 | 240 | 260 | 310 | 340 | |
Work table size | F-B(mm) | 300 | 320 | 400 | 450 | 480 | 590 | 660 |
| L-R(mm | 450 | 530 | 650 | 710 | 750 | 890 | 980 |
Diameter of blank-holding hole | F-B(mm) | 130 | 140 | 170 | 180 | 220 | 240 | 260 |
| L-R(mm) | 200 | 220 | 240 | 260 | 340 | 360 | 400 |
| diameter(mm) | 120 | 130 | 160 | 170 | 190 | 200 | 210 |
Slider bottom size diameter(mm) | F-B(mm) | 130 | 170 | 220 | 230 | 240 | 280 | 360 |
| L-R(mm) | 220 | 250 | 300 | 340 | 370 | 410 | 480 |
Hole size for die handle | diameter(mm) | 40 | 40 | 50 | 50 | 60 | 60 | 70 |
| Depth (mm) | 60 | 60 | 70 | 70 | 80 | 80 | 90 |
The distance between columns (mm) | 170 | 210 | 260 | 280 | 300 | 340 | 370 | |
Nat distance between work table to guide rail (mm) | 250 | 290 | 340 | 350 | 380 | 400 | 430 | |
Backing board thickness(mm) | 45 | 50 | 80 | 80 | 90 | 100 | 110 | |
Body tilting angle( °) | 30 | 25 | 25 | 25 | 25 | / | / | |
Motor | rate(kw | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 11 |
| speed(r/s) | 1410 | 1440 | 1440 | 1440 | 1440 | 1440 | 1460 |
Frame dimension | F-B(mm) | 1100 | 1200 | 1500 | 1600 | 1750 | 1800 | 1890 |
| L-R(mm) | 780 | 900 | 1100 | 1150 | 1300 | 1400 | 1500 |
| height (mm) | 1800 | 2050 | 2400 | 2480 | 2600 | 2680 | 2800 |

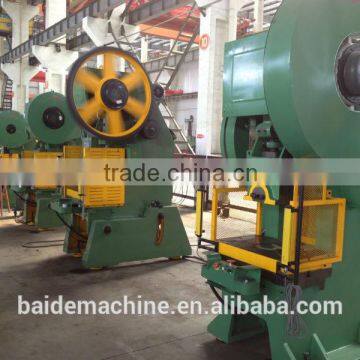

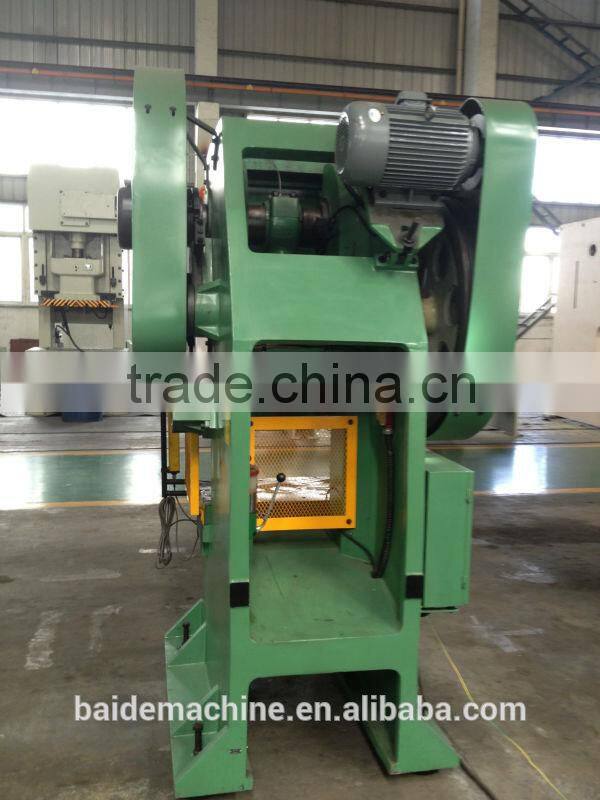

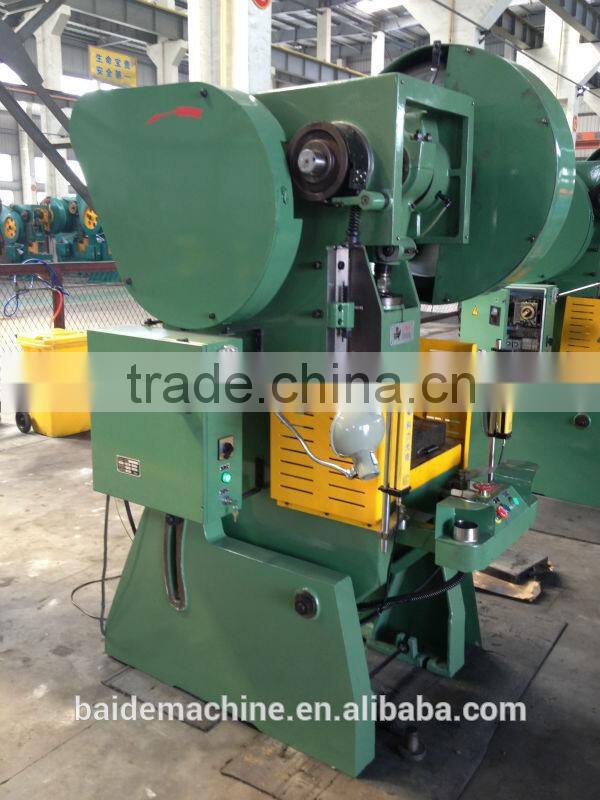

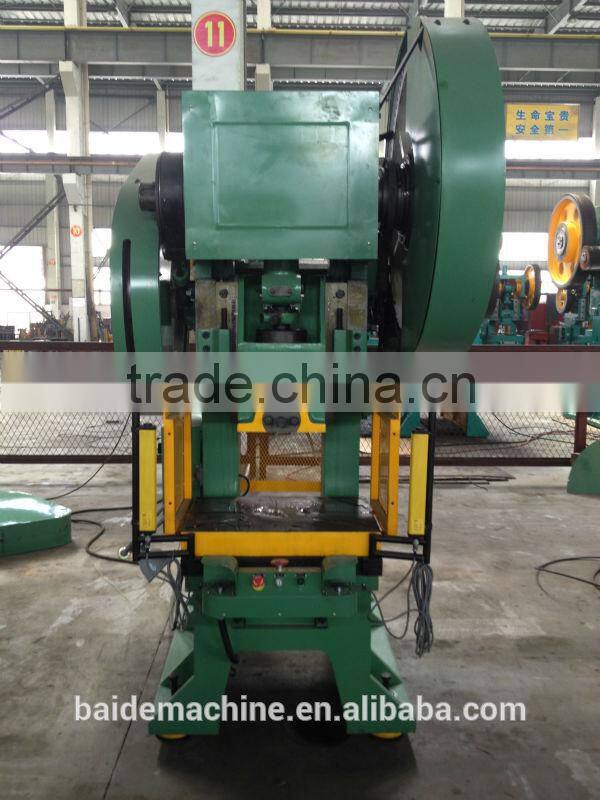

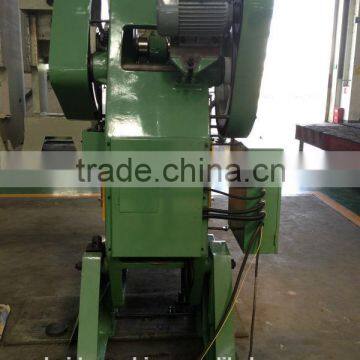

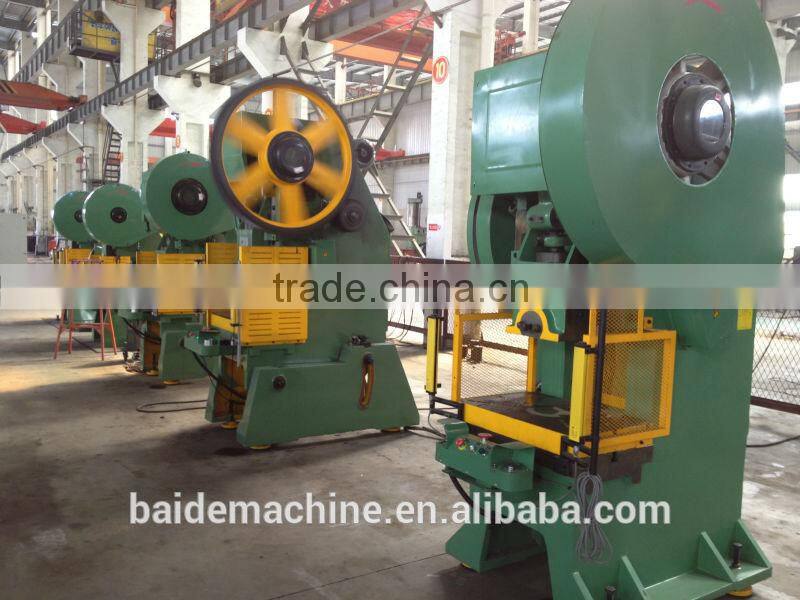

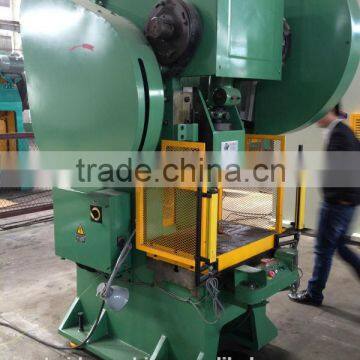

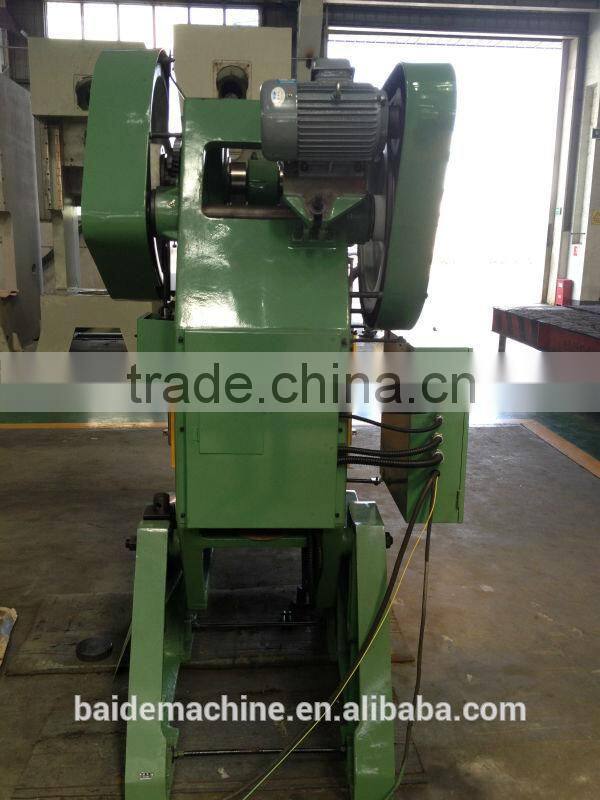

3.Pictures
Standard exporting package or according your demand
1, inner machine, it is packaged in moisture-proof film.
2, pallet or wood box.
3, ground fixed bolt to confirm steady and avoid destroy.
4, tightly exporting standard bell to fasten machine in container.
5.Within 20 days after receive deposit
Pre-Sale Services
- Recommond suitable pattern of equipment based on customer's requirements
- Provide detailed specifications and photos of the machines
- Develop practical solutions according to actual production status
- Facotry visiting is welcomed and arranged carefully
In-Sale Services
- Strict quality control to ensure the machines get high-quality and high-accuracily
- Provide all set of necessary documents
- Inform the production schedule, shipping time, arrival date on time
- Assist client for other issues
After-Sale Services
- Technical engineers are available for installation debugging and training
- Provide life-long services for any technical questions
- 12-month quality warranty frees you from worries
- Sound tracking service system gives you happy shopping and users experience
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: Bowang industry park,Maanshan City,China
Our factory is near Nanjing Lukou Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 11 year, export proportion 50~60%.
Q4:How can i trust your company?
A:With 11-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Nanjing Lukou airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears,iron work.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on
superior product and service.
