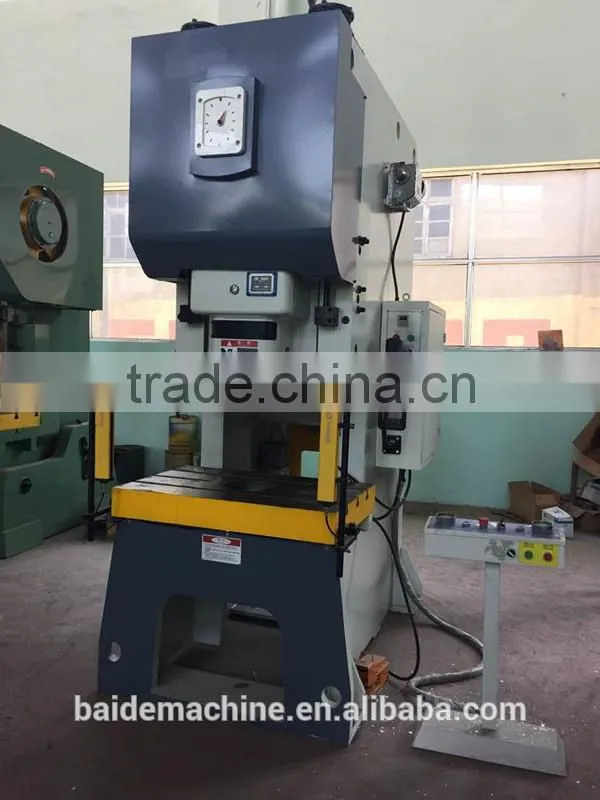

Help CenterHot Sale JF21 Series Dry Pneumatic Friction Press Machine With Hydraulic Overload Protector
Related Products
-
J23-16T C Frame Inclinable Power Press Machine With Single ColumnNegotiableMOQ: 1 Set -
China Factory Punching Machine Good Quality Power Press MachineNegotiableMOQ: 1 Set
-
China Supplier Automatic Power Press Machine Open Back Power Press With Inclinable Bed and Fixed TableNegotiableMOQ: 1 Set
-
China Factory Price Automatic Power Press MachineNegotiableMOQ: 1 Set
-
China Supplier Automatic Power Press Machine Perforated Sheet MachineNegotiableMOQ: 1 Set
1.JF21 Series Dry clutch and hydraulic insurance open type fixed power
press machine’s main characteristics:
1>Steel plate welding and high strength frame
2>Combined dry pneumatic friction clutch
3>Controlled by Mechanical cam and Electronic cam
4>Gear lubrication oil
5>Hydraulic overload protection device
6>Electric module adjustment and digital display
7>The slide block is equipped with a balanced cylinder device for the upper lift.
8>Famous brand Double solenoid valve
9>Electric thick oil compulsory lubrication series
10>The balance cylinder adopts the manual thin oil lubrication system
11>Famous brand PLC control system
12>Famous brand contactor, button and indicator

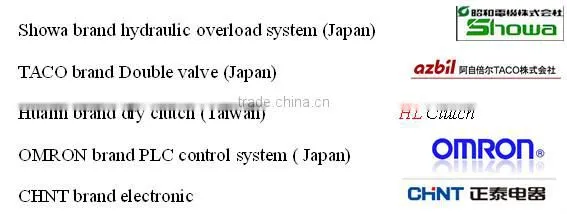

2.Machine’s configuration:
3.Main technical parameter:
Items |
JF21-160T |
JF21-200T |
||
Nominal force(KN) |
160 |
200 |
||
Stroke of nominal force (mm) |
6 |
6 |
||
Slide stroke(mm) |
160 |
180 |
||
Times of slide stroke(times/min) |
Fixed |
40 |
35 |
|
|
Variable |
35-50 |
30-40 |
|
Maximum height for die loading(mm) |
350 |
390 |
||
Adjustment for die height(mm) |
110 |
110 |
||
Distance of Slider center to frame(mm) |
350 |
390 |
||
Distance between columns(mm) |
850 |
870 |
||
|
Bottom size of slide |
Left and right(mm) |
580 |
600 |
|
|
Front and back(mm) |
770 |
800 |
|
|
Hole size for die handle |
Diameter(mm) |
65 |
65 |
|
|
Depth(mm) |
80 |
90 |
|
|
Size of worktable |
Left and right(mm) |
740 |
680 |
|
|
Front and back(mm) |
1300 |
1150 |
|
|
Thickness |
150 |
140 |
|
| ||||
Size of worktable’s Blanking hole(mm) |
Diameter of Upper hole |
Φ300 |
Φ300 |
|
|
Depth |
Φ50 |
Φ50 |
|
|
Diameter of Lower hole |
Φ260 |
Φ260 |
|
Main motor (Kw) |
15 |
18.5 |
||
|
Dimensions |
Front and back |
2230 |
2500 |
|
|
Left and right |
1630 |
1580 |
|

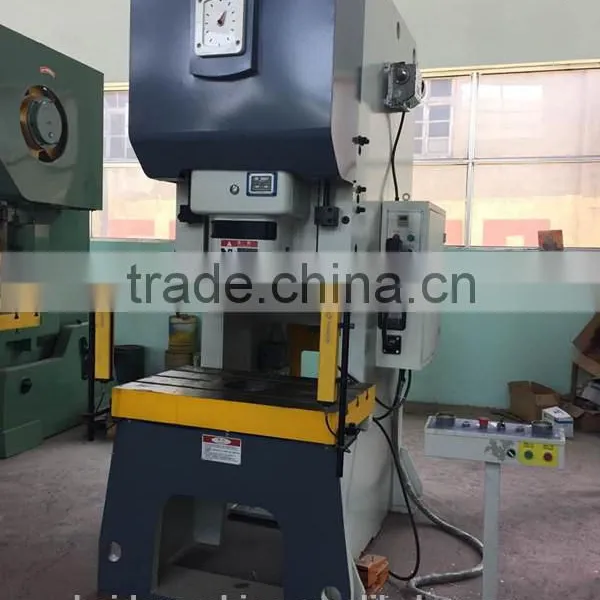

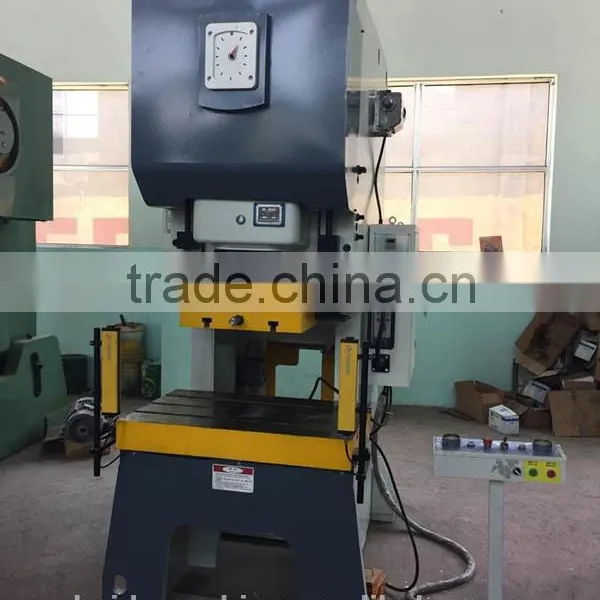

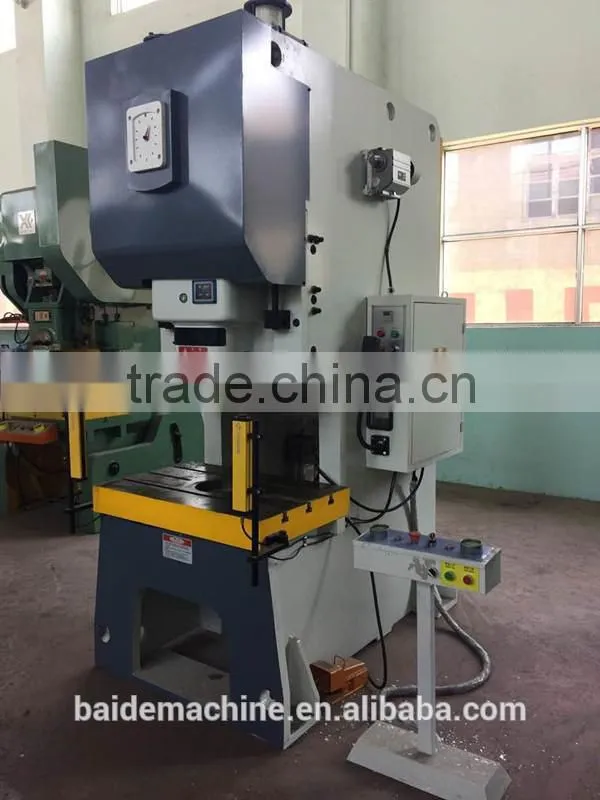

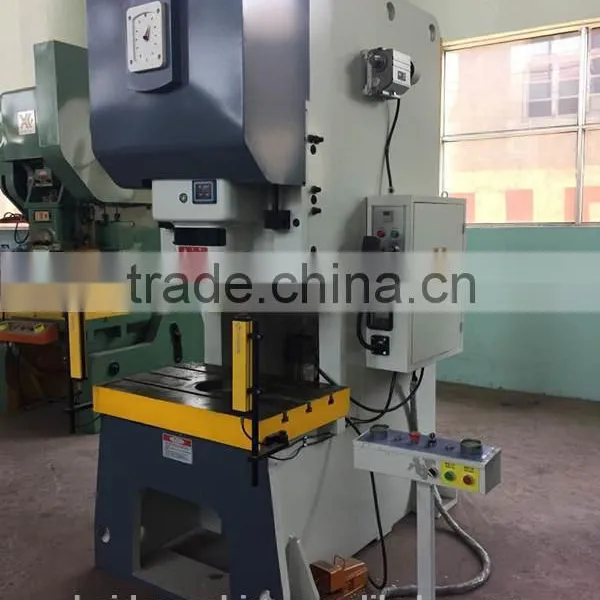

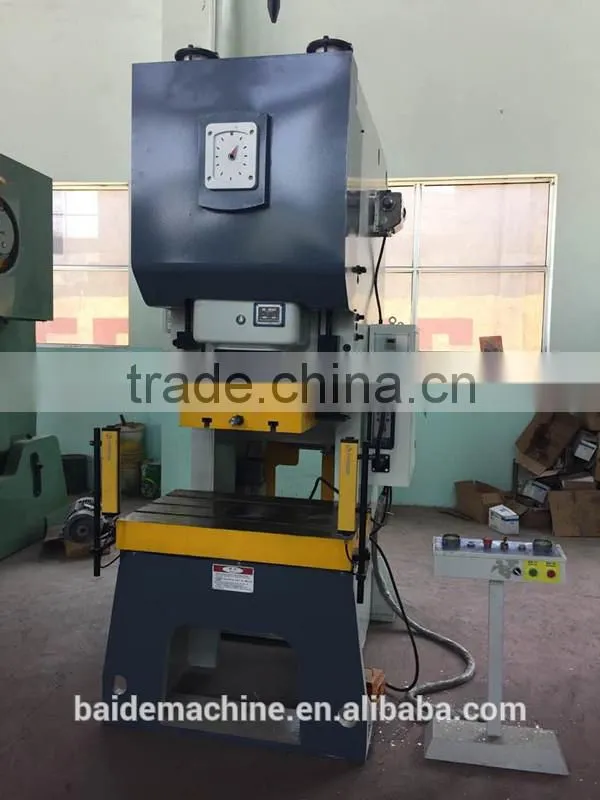

4.Detailed shot photo:
Standard exporting package or according your demand
1, inner machine, it is packaged in moisture-proof film.
2, pallet or wood box.
3, ground fixed bolt to confirm steady and avoid destroy.
4, tightly exporting standard bell to fasten machine in container.
5.Within 20 days after receive deposit
We supply 1 year Warranty and after 1 year, technical support will also be provide.Local support is also available.
Route chart:
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: Bowang industry park,Maanshan City,China
Our factory is near Nanjing Lukou Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 11year, export proportion 50~60%.
Q4:How can i trust your company?
A:With 11-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Nanjing Lukou Airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears,iron work.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on
superior product and service.
