Specifications
Glass Tempering Furnace1. ISO, CE certificate
2.double working table
3.offer free installation
4. PLC control system
LCD glass Chemical Glass Tempering Furnace
Brief introduction of LCD glass chemical glass tempering furnace:
According to the plasma diffusion theory, the furnace improves glass surface composition, letting glass surface to form pressure. Its main characteristics of the processed glass are: high strength, good thermal stability, smooth surface, no deformation, no explosion, simple operation, high yield rate, especially suitable for all kinds of ultra-thin tempered glass and bent glass.
Main features of LCD glass chemical glass tempering furnace:
- Double working table, could working continuously.
- PLC control system.
- Has CE certificate
- Could make fast train glass and fireproof glass.
Main function of LCD glass chemical glass tempering furnace:
1. Electronic products glass: touch screen in mobile phone, computer screen, computer touch conductive glass, ultra-thin TV sets, view-finder glass ion glass.
2. Home appliance glass: scanner glass, duplicating machine glass, ultra-thin cupboard glass, washing machine view-finder glass, plasma TV glass.
3. Optical glass: ultra-photoperme ability glass, ultra-toughened glass, ultra-smooth glass, ultra-thin tempering glass, watches glass, precision instrument lens.
Main technical parameters of LCD glass chemical tempering furnace:
Model |
LDH1010 |
LDH2512 |
Max glass size |
1000*1000mm |
2500*1200mm |
Glass thickness |
0.5-12mm |
0.5-12mm |
Chemical reaction tank size |
1100mm(L)*800(W)*1100(W) |
2600mm(L)*800(W)*1300(W) |
Basket size |
1000mm(L)*800(W)*1000(W) |
2500mm(L)*800(W)*1200(W) |
Machine size |
8m(L)*2.5m(W)*3m(H) |
8m(L)*2.5m(W)*3m(H) |
Capacity |
4-16 batch/h |
4-16 batch/h |
Total power |
100Kw |
225Kw |

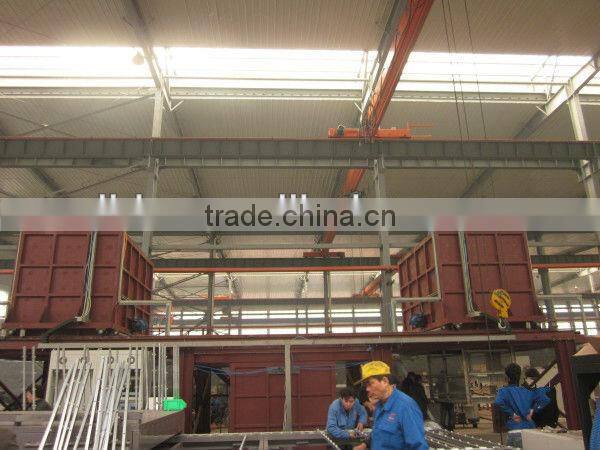

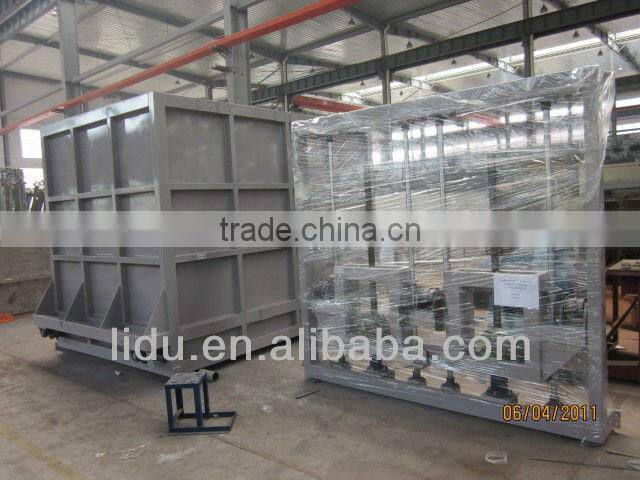

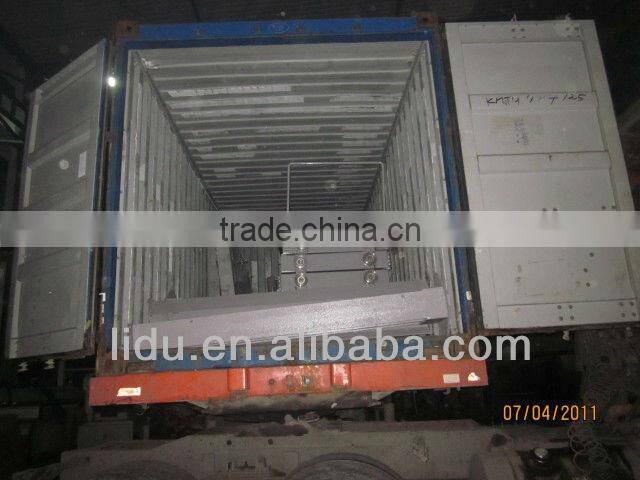

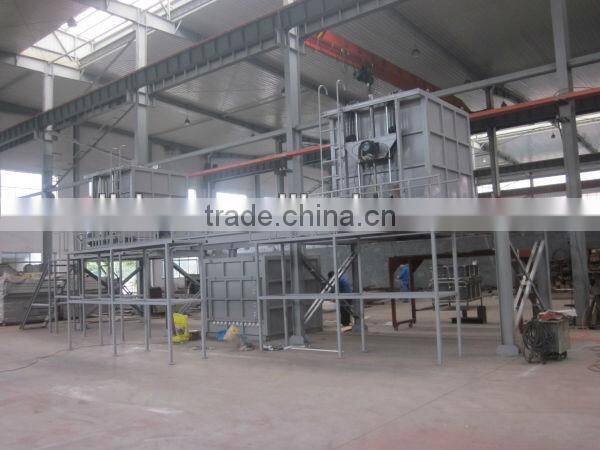

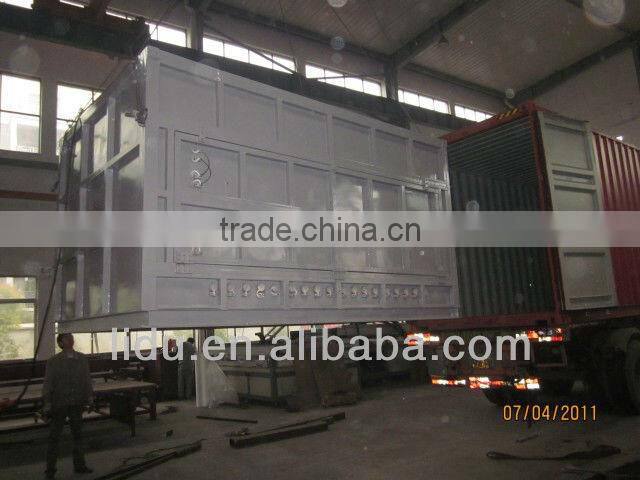

Delivry site of LCD glass chemical tempering furnace:

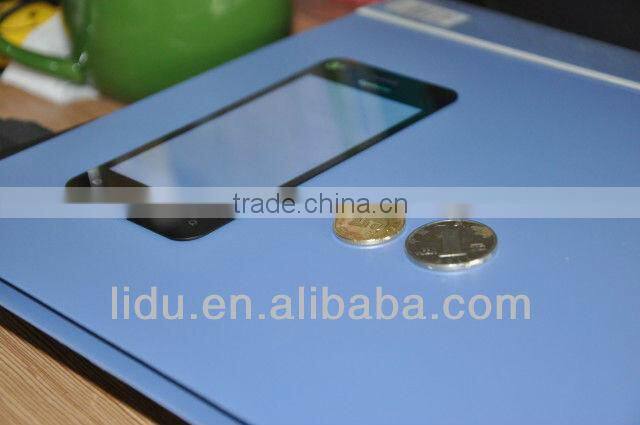

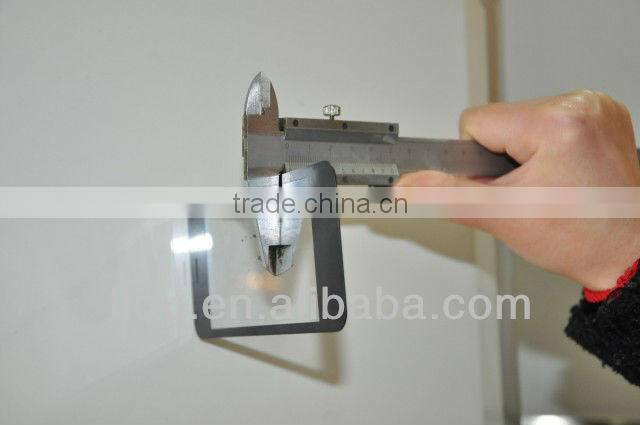

Final products of LCD glass chemical tempering furnace:
