CNC Glass Engraving Machines
- 500 Set / Sets per Month
- Shanghai/Ningbo
- T/T
Product Details
| Condition: | New | Machine Type: | Engraving Machine / CNC Router | Place of Origin: | Zhejiang, China |
| Brand Name: | LIDU | Model Number: | LDKE3016 | Voltage: | 220/380 |
| Power(W): | 21Kw | Weight: | 7.2t | Certification: | Other, CE, ISO9001:2000 |
| Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Glass Engraving Machines1. fast processing
2. wide application
3. Chinese &English interface

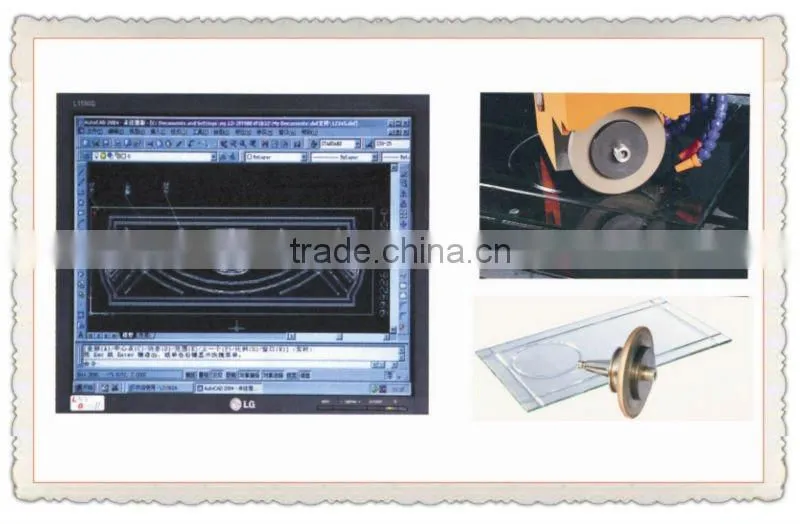

Brief introduction of CNC Glass Engraving Machines
This CNC Engraving Machine is a new equipment for glass deep processing. It adopts CAD system and is designed by several senior engineers together. It is widely used in notching and polishing in glass and mirror.
The whole processing procedure from pattern design to processing is controlled by computer. We can equip tool library and change tool system according to customers' requirements.
-------------------------------------------------------------------------------------------------------

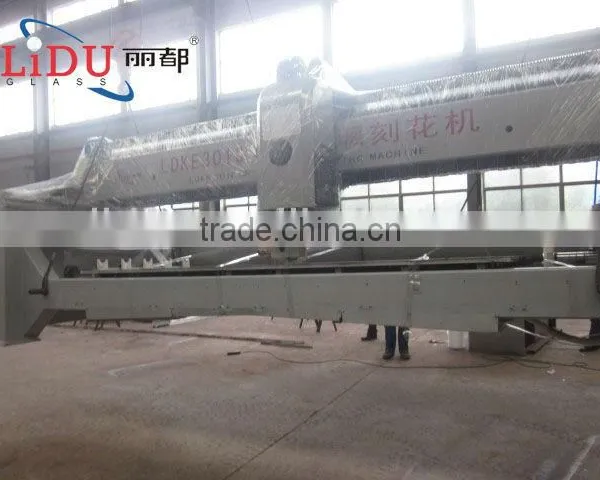

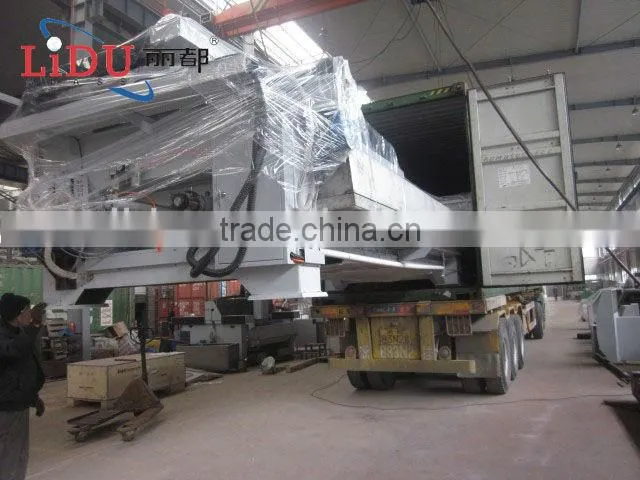

Delivery site of CNC Glass Engraving Machines
Main features of CNC Glass Engraving Machines
1. Fast processing. The max. speed of the air knife of axis X can reach 60 m/min.
2. Unique international pattern simulating function makes the processing patterns more visible, thus failure has been decreased greatly.
3. Wide using range of grinding wheel: from Φ110 to Φ170, this is twice of the same products in China. The producing cost has been reduced greatly.
4. Both Chinese & English interface. It is easy to learn and operate.
-------------------------------------------------------------------------------------------------------
Technical Parameters of CNC Glass Engraving Machine :
,,
Model | LDKE2512 | LDKE3016 | LDKE3019 |
Table Size(mm) | 2500×1200 | 3000×1600 | 3000×1900 |
Stroke of Axis x,y,z(mm) | 2500×1200×155 | 3000×1600×155 | 3000×1900×155 |
Rotating Angle of Axis | 0~360° | 0~360° | 0~360° |
Allocating Accuracy(X,Y,Z) | 0.01×0.02×0.01 | 0.01×0.02×0.01 | 0.01×0.02×0.01 |
Allocating Accuracy of Axis C | 5’’ | 5’’ | 5’’ |
Repeatability(mm) | 0.005×0.01×0.005 | 0.005×0.01×0.005 | 0.005×0.01×0.005 |
Axis C | 2’’ | 2’’ | 2’’ |
Velocity(Axis X.Y)(m/min) | 60 | 60 | 60 |
Speed of Axis Z(m/min) | 30 | 30 | 30 |
Quantity of Knives (PCS) | 10 | 10 | 10 |
Rotating Speed of Main Spindle Speed(rpm) | 0-6000 | 0-6000 | 0-6000 |
CNC System | USA | USA | USA |
Main Spindle Power(KW) | 4 | 4 | 4 |
Max Width of Slot(mm) | 30 | 30 | 30 |
Glass Thickness(mm) | 3-30 | 3-30 | 3-30 |
Max.Diameter of Grinding Wheel(mm) | 170 | 170 | 170 |
Total Power (kw) | 18 | 21 | 22 |

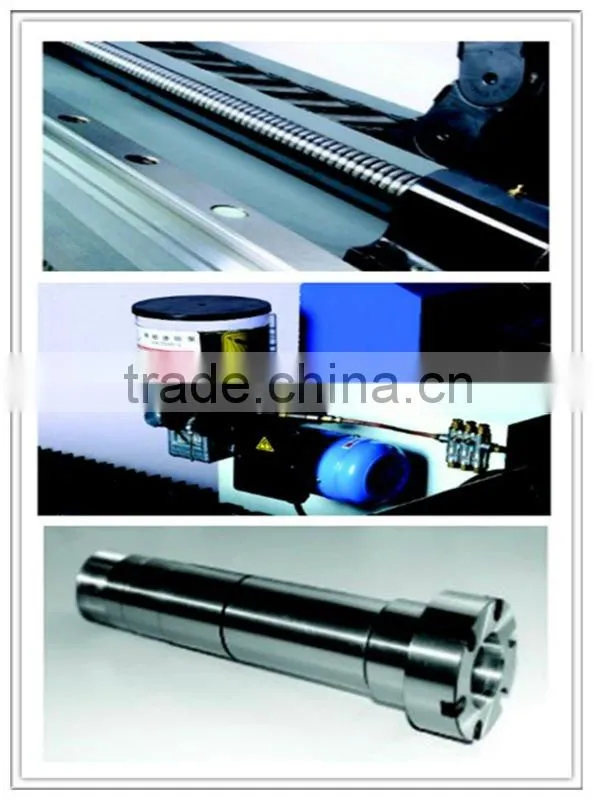

The screw of CNC Glass Engraving Machines is import from German
