Specifications
Automatic Glass Sand Blasting Machine1. Mitsubishi servo motor
2.CE certificate
3. Offer installation

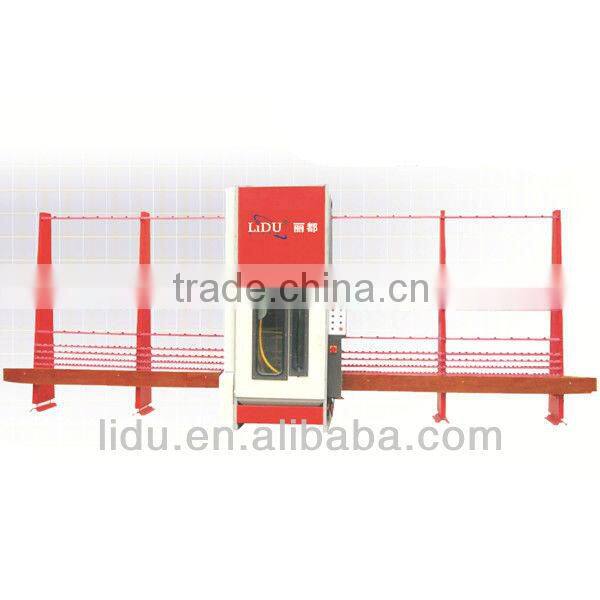

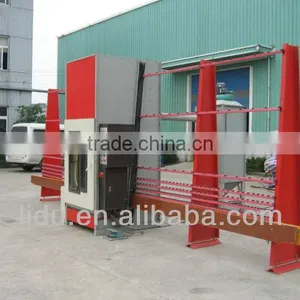

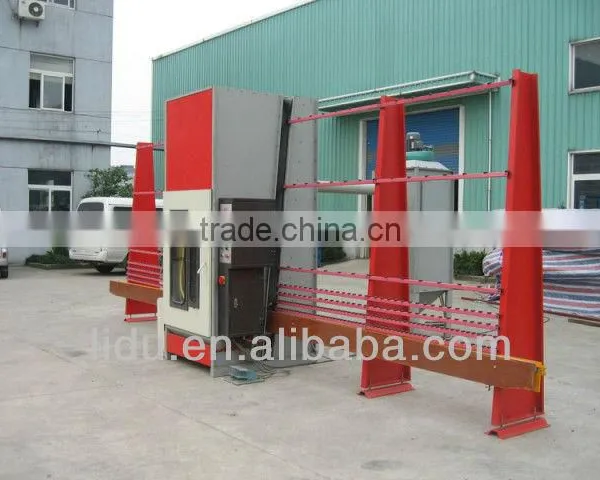

Automatic Glass Sand Blasting Machine for furniture glass
Brief introduction of Automatic Glass Sand Blasting Machinefor furniture glass:
This is a PLC control automatic vertical glass sandblasting machine. It is used for sandblasting engraving various kinds of patterns on flat glass with thickness 5 ~ 50 mm. The mechanic transporting is automatically controlled by photoelectric switch and stroke switch. Glass is transported to the mouth of the spray gun by synchronous belt. It blasts sand by moving up and down (the space can be adjusted according to glass height). The transporting of the synchronous belt is stable, high effective and easy maintained. The driving mechanism equips a dustproof cover to effect the normal working and daily maintenance for a long time. It adopts touch screen control. The characteristics of this machine: stable running, powerful function and convenient operation. It can detect the position of the glass automatically when blasting sand.
-------------------------------------------------------------------------------------------------------
Main features of Automatic Glass Sandblasting Machine for furniture glass:
1. The sandblasting machine adopts Japanese Mitsubishi element which can be programmed and saved. The system is stable.
2. The sandblasting machine equips an automatic dust absorbing device to absorb dust caused by spraying sand.The sandblasting machine can automatically separate dust from sand to keep a clean working environment.
3. The sandblasting machine can do continuous sand blasting to various glass patterns and sizes. The processed effect is exquisite and even.
-------------------------------------------------------------------------------------------------------
Technical parameters of Automatic Glass Sand Blasting Machine for furniture glass:
Model |
Max.Glass Size(mm) |
Min.Glass Size(mm) |
Glass Thickness (mm) |
Speed (m /h) |
Machine Size (mm) |
MachineWeight (kg) |
Power (kw) |
LDPL3000 |
3000x2500 |
300x300 |
3-50 |
15 |
7850x3050x3100 |
1900 |
2.2 |
LDPL2500 |
2500x2000 |
300x300 |
3-50 |
15 |
7050x2550x3100 |
1700 |
2.2 |
