- Haining Lidu Glass Machine Co., Ltd.
- China Manufacturer with main products:Glass Tempering Furnace ,CNC Glass Engraving Machine ,CNC Glass Working Center ,Glass Cutting Machine ,Glass Laminating Machine ,Automatic Painting Machine ,Glass Sandblasting Machine ,Glass Washing Machine ,Screen Printing Equipment ,Glass Drilling Machine
Home > Products > Glass Machine I > Glass Cutting machine

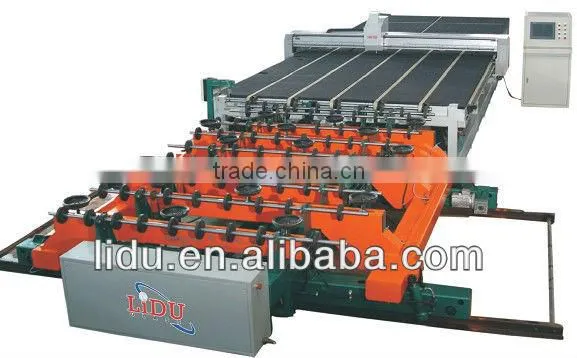

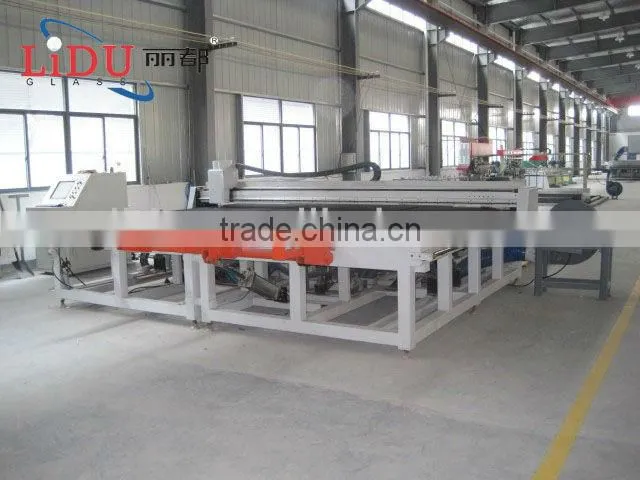

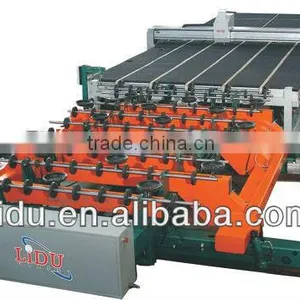

Glass Cutting machine
- 150 Set / Sets per Month
- Ningbo Shanghai
- T/T
Product Details
Condition: | New | Machine Type: | Glass Cutting Machine | Place of Origin: | China |
Brand Name: | Lidu | Model Number: | LDCJ3825 | Voltage: | 380V |
Power(W): | 5.8 | Certification: | Other, CE, ISO9001:2000/CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Cutting any shape.2.High processing precision speed and low noise,
3.Germany imported motors.
1.
Max. glass size | 3810 x 2540mm | |
Glass thickness | 3 – 19 mm | |
Operation mode | HS/High speed character HS | HP/High precision character HP |
Empty movement speed | 120 m/min | 110m/min |
Cutting bridge speed | 110m/min | 100 m/min |
Cutting bridge acceleration | 3.0 m/s² | 1.25 m/s² |
Head holder carriage speed | 110m/min | 100m/min |
Head holder carriage acceleration | 6.0 m/s² | 1.25 m/s² |
speed of belt | 40 m/min | 40m/min |
2.
Installed power | 8 KVA |
Power supply | 380V/50HZ |
Air consumption | 300 NL/Min |
Compressed Air | Mini pressure 7 Bar Dew point< 5° |
3.
Items | Content | Scope |
1. | Cutting size | 3810 x 2540 mm |
2. | Working model for desktop | Synchronous Belt |
3. | Machinery position | Included |
4. | Straight line +any shaped | Included |
5. | Optimizing typeset software | Included |
6. | Double oil ways | Included |
