1.Equipment performance and Uses
The machine can meet all kinds of carbon steel materials profiles plate punching.(Angle steel, trapezoidal
steel, i-steel, channel steel, etc.) Cooperate with composite mould also can do any product stamping,
cutting, forming.This machine adopts steel plate welded structure.Hydraulic transmission mechanism work
stable and reliable, small size, light weight, good rigidity.Our machine is very easy for operators to replace
die parts, machine workbench has front and back rear stopper, and use scale to count..
2.Hydraulic system configuration
Equipment hydraulic system including twin pump and dual valve integrated system composition.Use low
noise pump( Taiwan).Gear pump supply pressure oil to system , the system maximum working pressure
is 20 mpa.
3.Electrical system
1.The machine electrical system adopts three-phase ac 380 v, 50 hz .Control circuit power and lighting power
supplied by controlling the transformer and isolation transformer to provide respectively.Hydraulic solenoid
valve power provided by the control transformer after decompression 24 v.
The machine can inching and automatic working, Easy to operate, reasonable operation.
2.All electrical components adopts Schneider product.
4.Performance requirement
1.Frame and blade are welded structure .Taking heat treatment of Eliminating stress.
2.Oil cylinder has good performance. famous brand seal.
3.The blade’s stroke can be adjusted with switch.
4.With functions of inching, single operation and easy to test,operate, maintenance
5.Main Technical Data
Item |
2-Q35Y-20 |
Pressure(T) |
90(90×2) |
Maximum cutting thickness (mm) |
20 |
Slide stroke(mm) |
80 |
Stroke frequency(times/min) |
10-22 |
Throat depth(mm) |
355 |
Punching thickness(mm) |
20 |
Max punching diameter(mm) |
30 |
Main motor power(KW) |
5.5 |
Dimensions(L*W*H)mm |
1860*800*1990 |

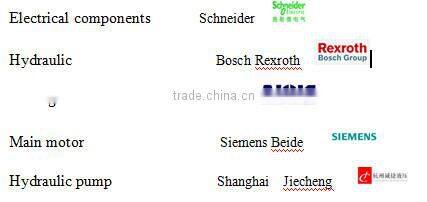

6.Main configuration
7.Real shot photos
Oil pump

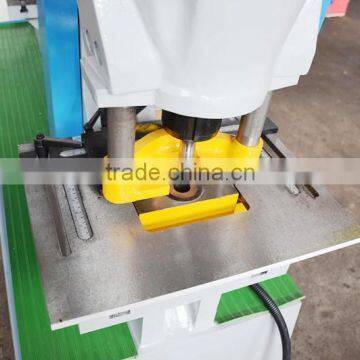

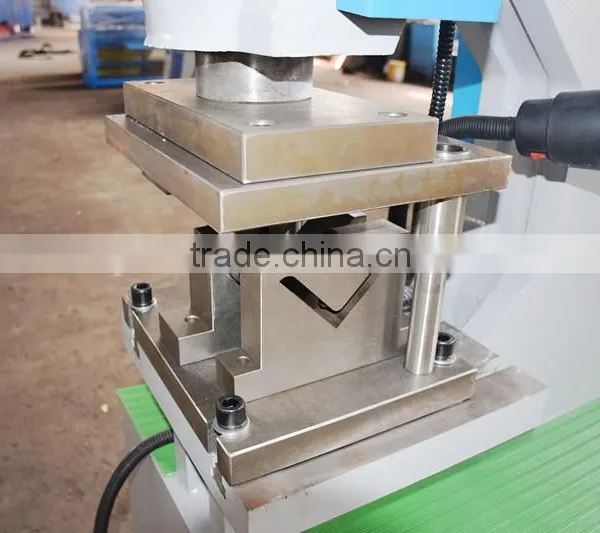

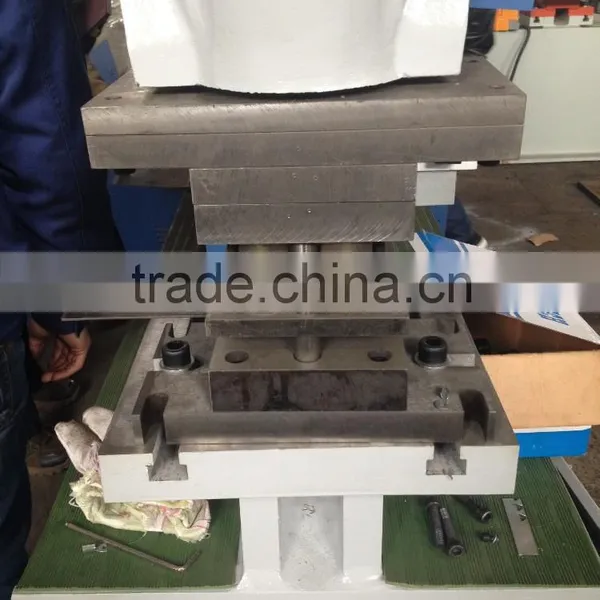

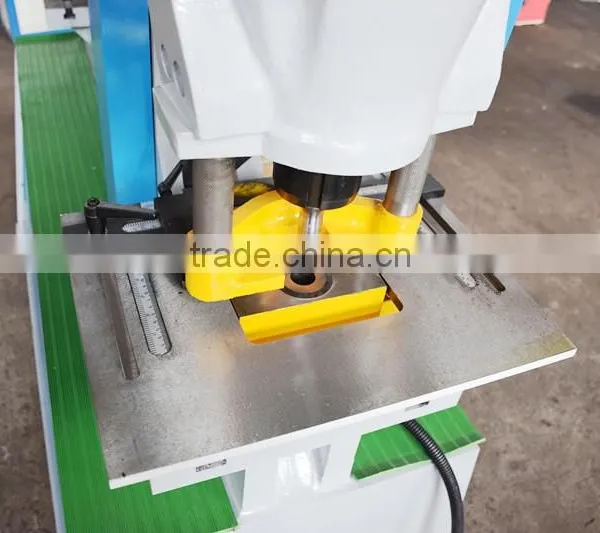

Punching head

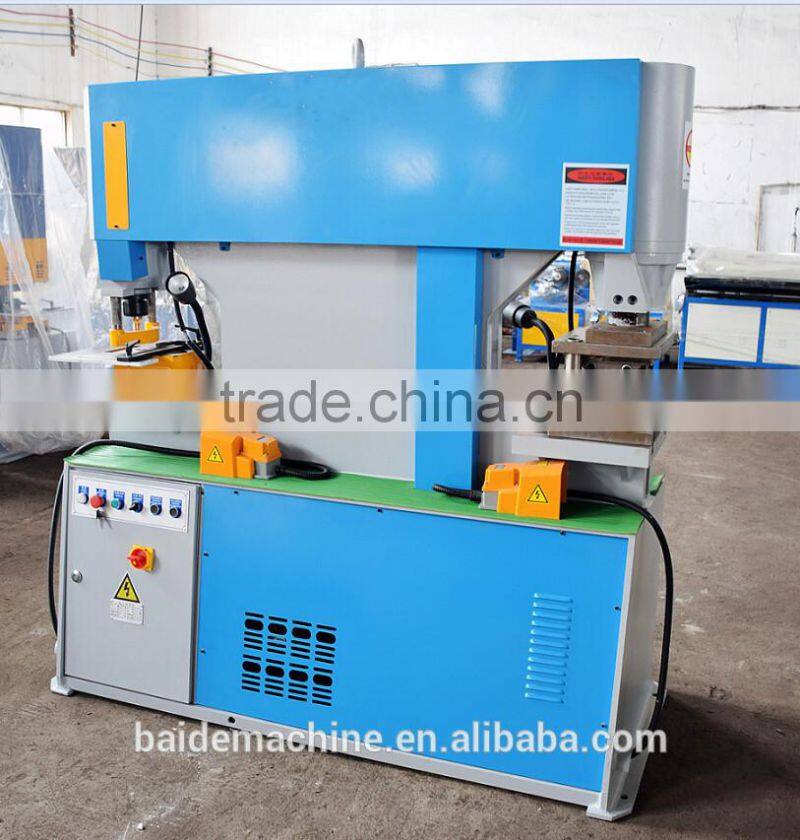

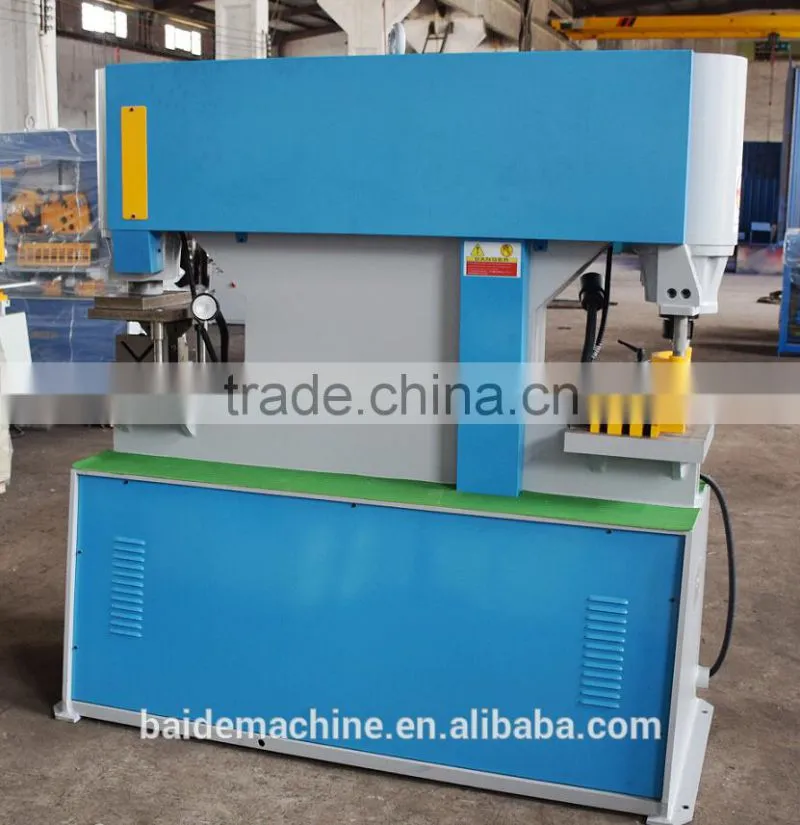

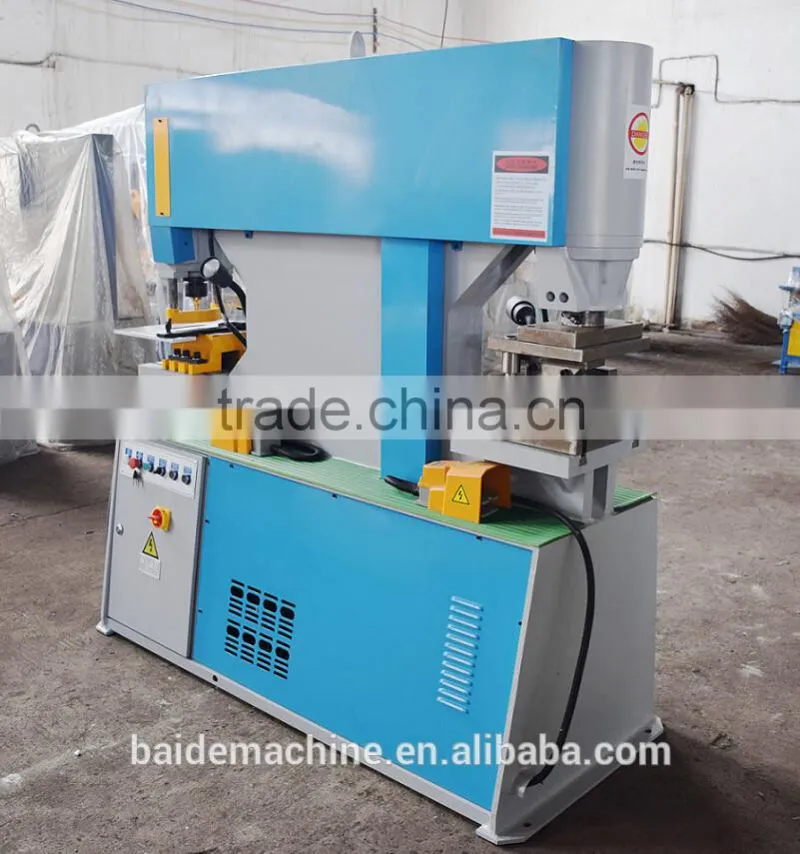

Appearance
Standard exporting package or according your demand
1, inner machine, it is packaged in moisture-proof film.
2, pallet or wood box.
3, ground fixed bolt to confirm steady and avoid destroy.
4, tightly exporting standard bell to fasten machine in container.
5.Within 20 days after receive deposit.
Pre-Sale Services
- Recommond suitable pattern of equipment based on customer's requirements
- Provide detailed specifications and photos of the machines
- Develop practical solutions according to actual production status
- Facotry visiting is welcomed and arranged carefully
In-Sale Services
- Strict quality control to ensure the machines get high-quality and high-accuracily
- Provide all set of necessary documents
- Inform the production schedule, shipping time, arrival date on time
- Assist client for other issues
After-Sale Services
- Technical engineers are available for installation debugging and training
- Provide life-long services for any technical questions
- 12-month quality warranty frees you from worries
- Sound tracking service system gives you happy shopping and users experience

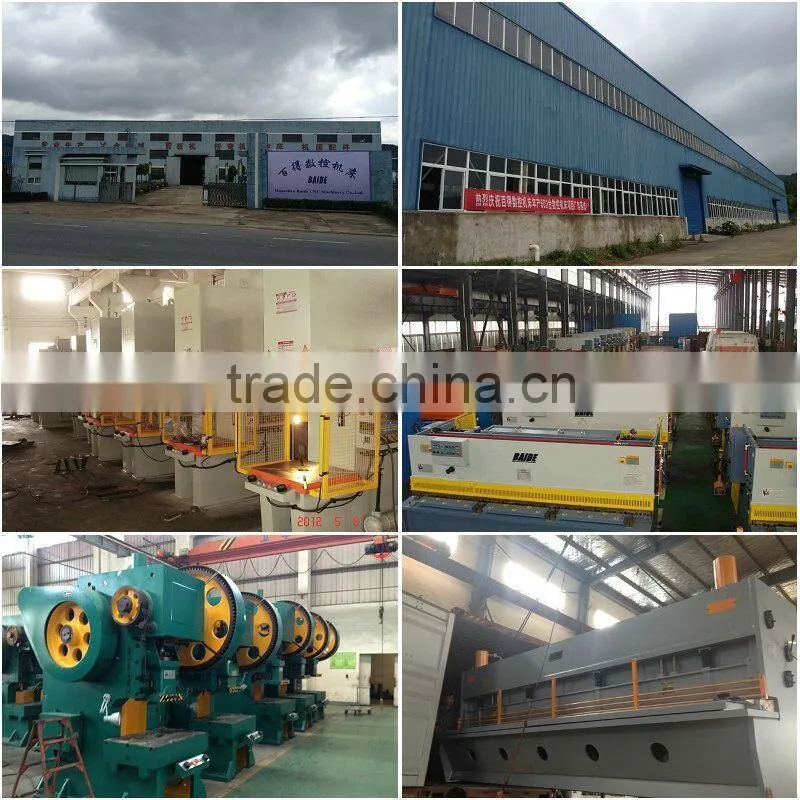

Factory
Foreign visitor
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: Bowang industry park,Maanshan City,China
Our factory is near Nanjing Lukou Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 11year, export proportion 50~60%.
Q4:How can i trust your company?
A:With 11-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Nanjing Lukou Airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears,iron work.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on
superior product and service.
