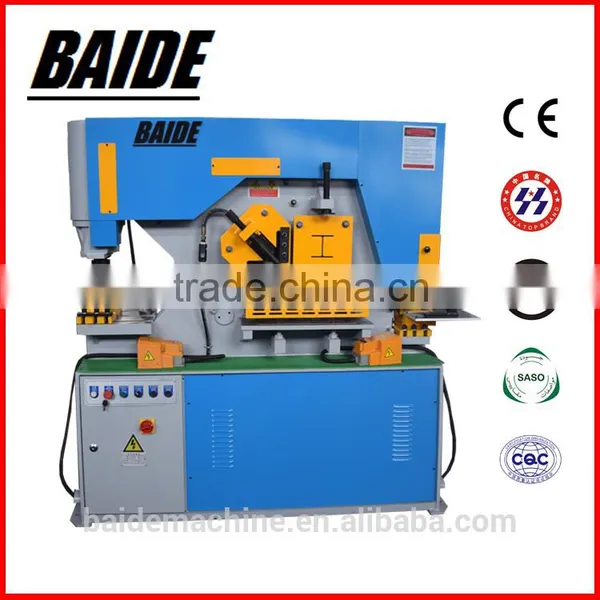

2.Function of Ironworker Machine Combined Bending. Shearing, Punching, Notching Functions (Q35Y)

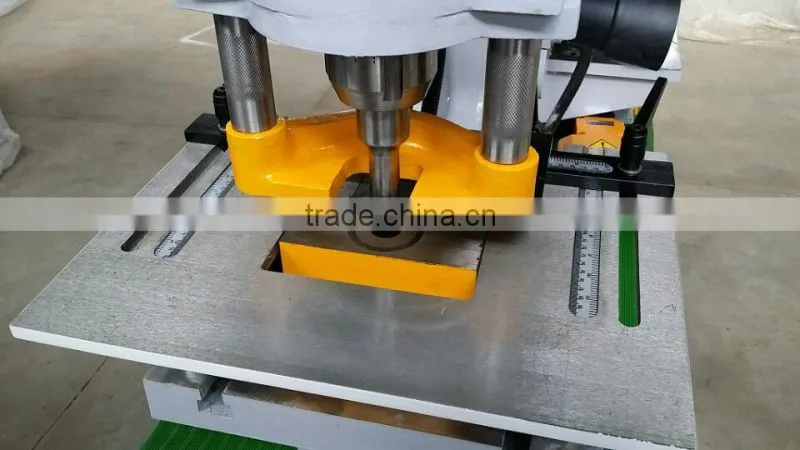

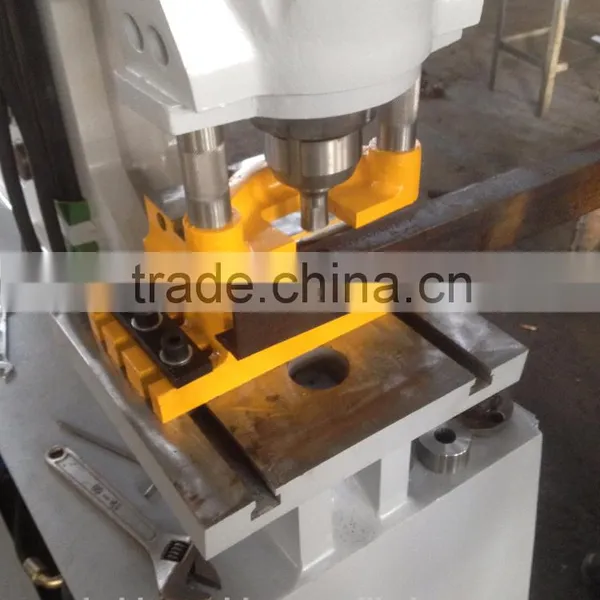

1. Punching
Full range of universal punches and dies are available. Unique style allows for large angle iron punching and large channel punching.
Large viewing window on stripper swing away design for ease of operation. Large two piece gauging table with rulers and stop as standard fittings.
Quick change coupling nut and sleeve for rapid replacement of change.

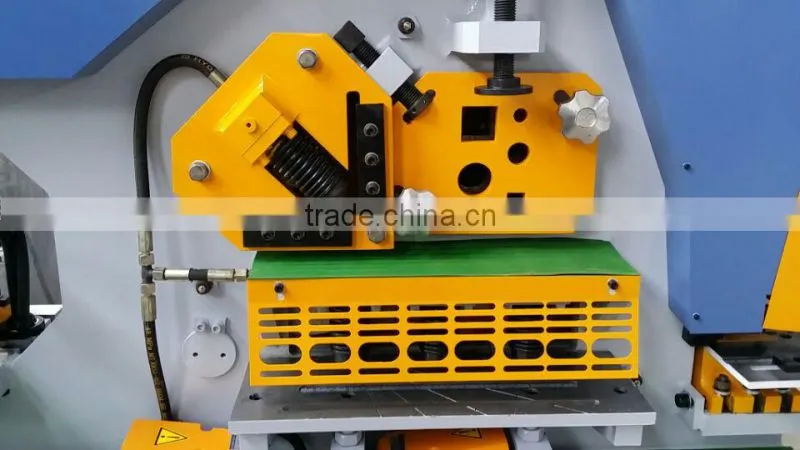

2. Shearing
Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar, channel/beam cutting. Large
strong guarding for max safety.The angle shear has the ability to cut angle at 45° Both top and bottom leg. This gives the operator the ability to make
a picture frame corner for perfect welds. Diamond shaped blade for quality cuts that is minimal material lost and deformity.
3. Notching
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.
4. Bending can also bend the plate below 500mm
3.Main Technical parameters:
| Model | Q35Y-20 |
| Pressure(Ton) | 90 |
| Max cutting thickness | 20 |
| Plate strenghth(N/mm2) | </=450 |
| One stroke cutting size(D*W) (mm) | 20*330 |
| 10*480 | |
| Slide stroke | 80 |
| Stroke times(beats/min) | 12 |
| Throat depth(mm) | 355 |
| punching thickness(mm) | 20 |
| Max punching diameter(mm) | 30 |
| Mainmotor power(kw) | 5.5 |
| Dimension(mm) | 1860*800*1990 |
| Weight(kg) | 2000 |
Profile for cutting
| Q35Y-30 | |
| Profile type | size |
| round steel | 50mm |
| sqaure steel | 50*50mm |
| Equilateral angle | 140*140*12mm |
| 50*50*5mm | |
| T section | 140*140*12mm |
| 70*70*10mm | |
| H steel | 160*86*6mm |
| Channel steel | 160*60*6.5mm |

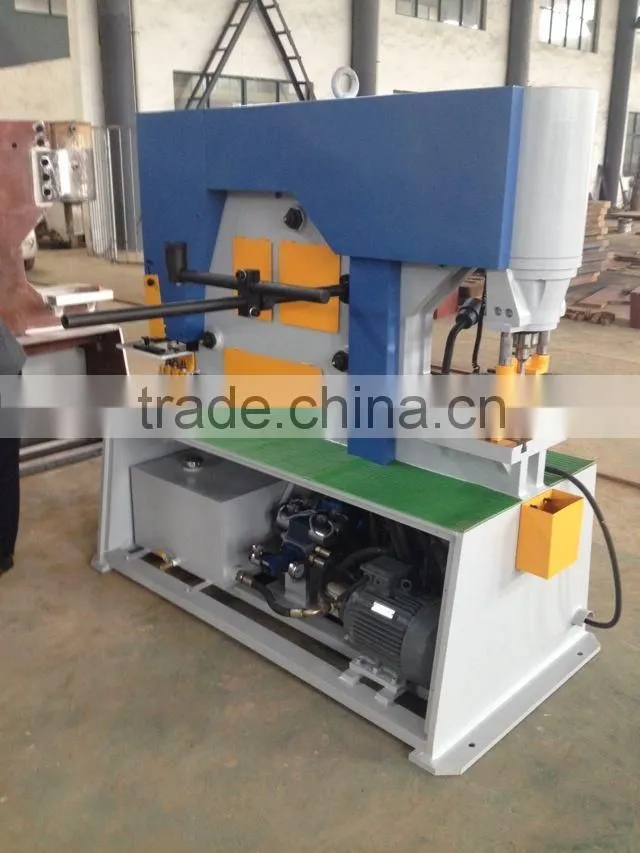

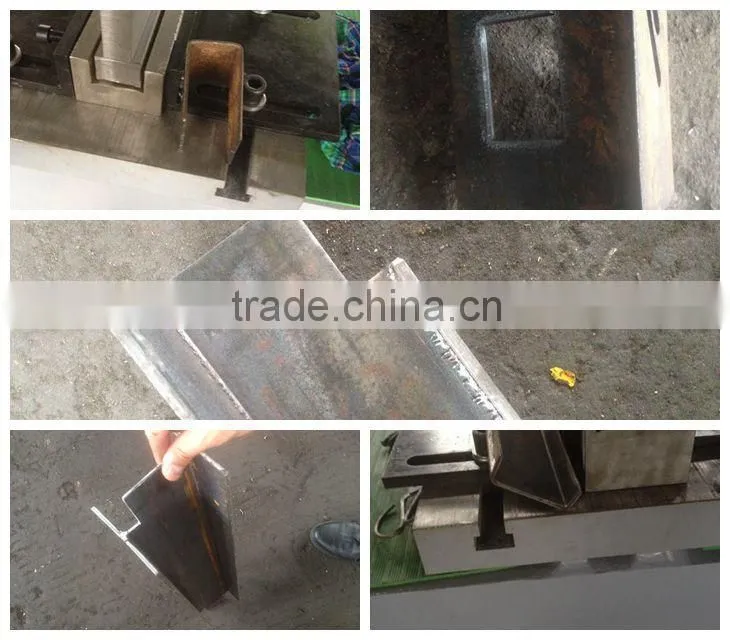

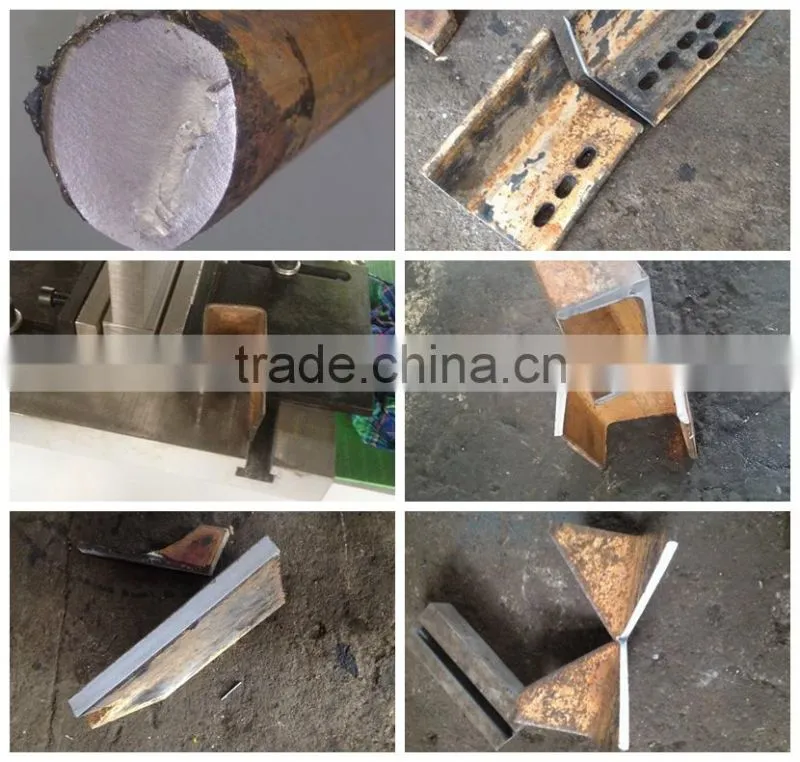

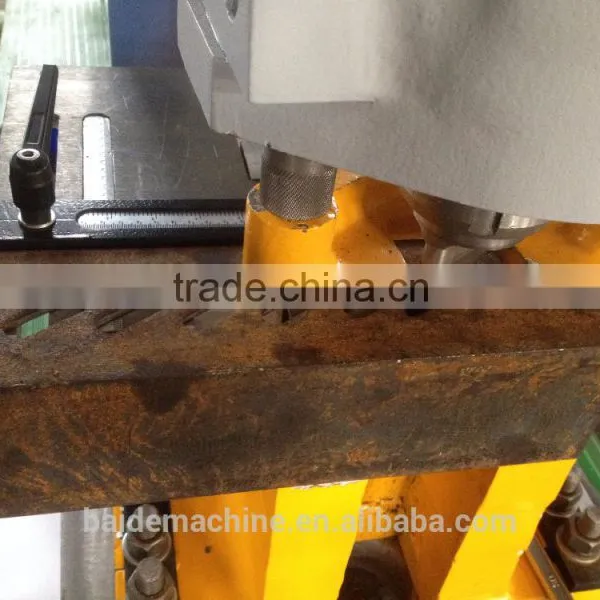

4>The detailed photo of ironworker machine for reference

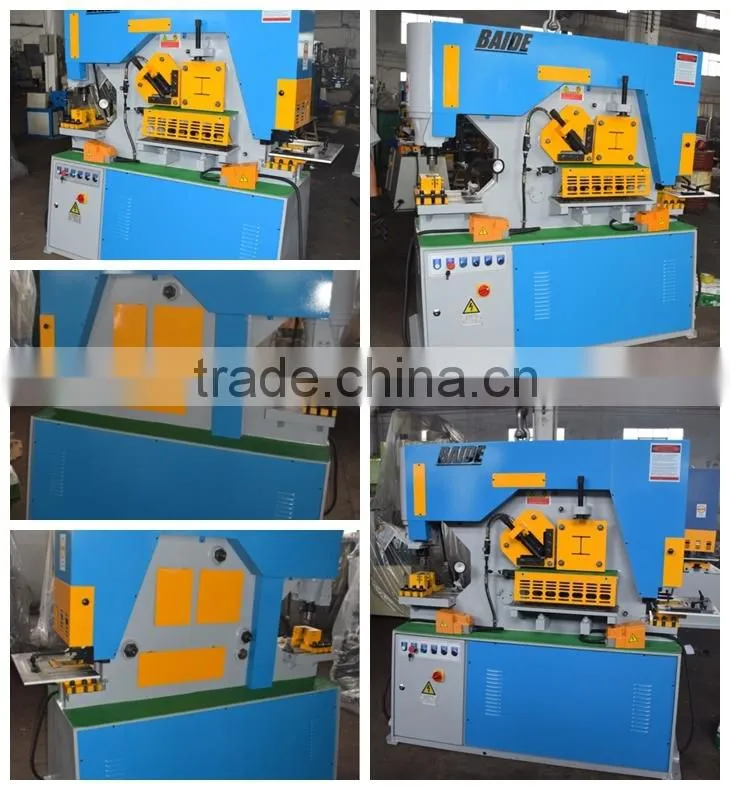

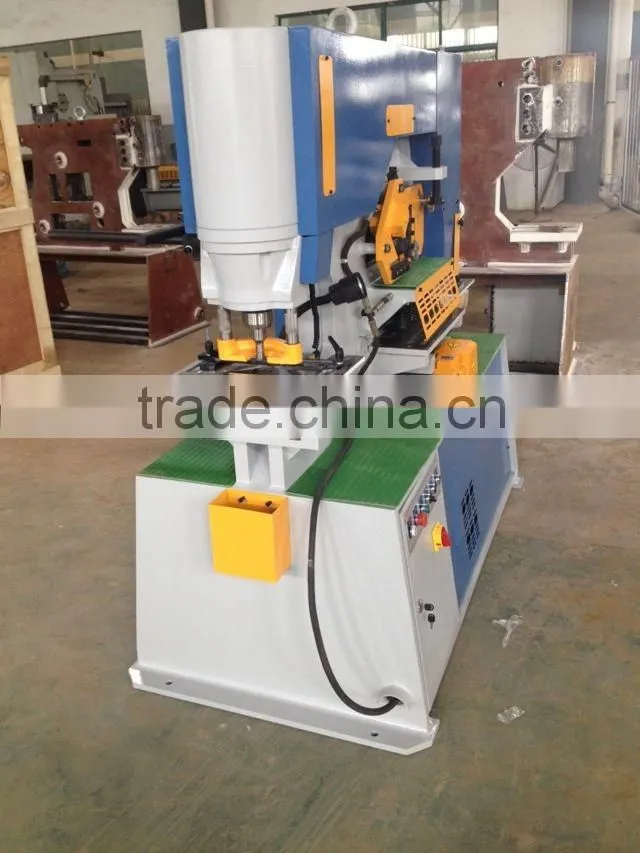

Finished photos

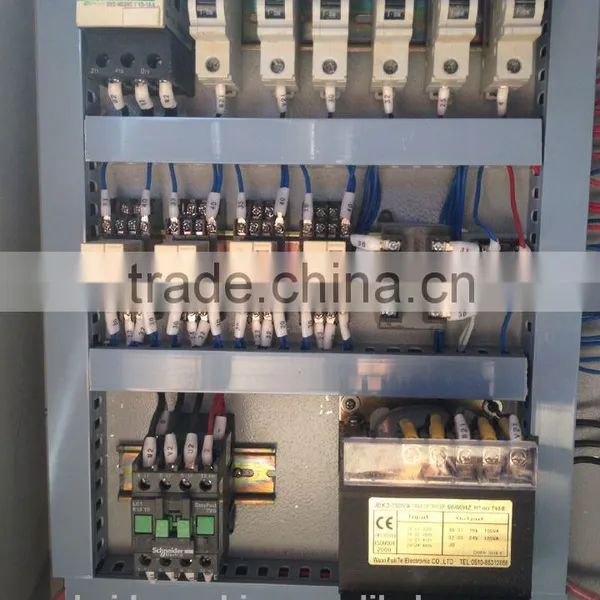

Main electric appliance |
1set |
Schneider |

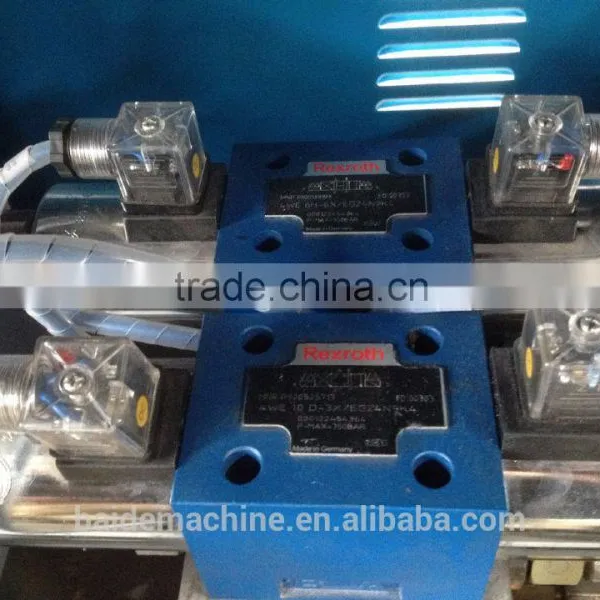

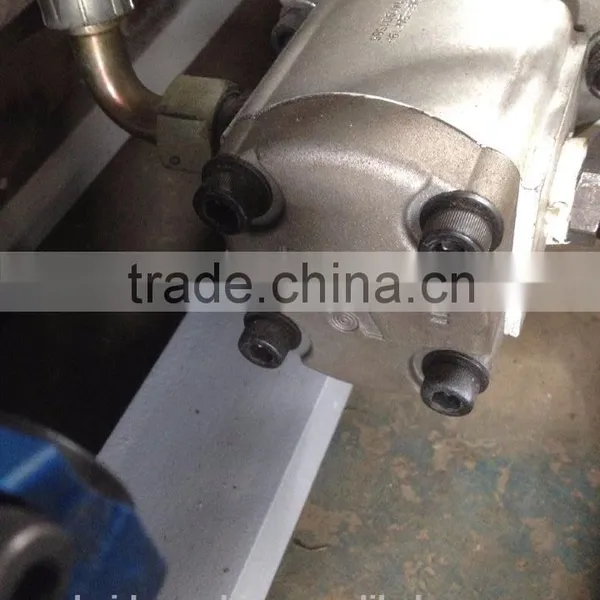

Hydraulic part |
1set |
Taiwan HNC |
Sealing |
1set |
NOK |
Main motor |
1set |
Siemens Beide |
Hydraulic pump |
1set |
Taiwan HYDROMAX |
1.All Baide machines have 12 months warranty.
2.During warranty period, under correct operation according to manual we offered, Except
quick-wear part , Baide borne all fees of possible machine repairing and replacement.
3.After sale, if needed, we will offer 3-5 days with our engineer service local to help with the
machinery lifting/ installation and teaching(Need charge, the charge will paid by buyer)
4.Usually our machine are well tested and adjusted to confirm the best easy using for our clients.
Foreign visitor
Factory
Process
NOTES:Thanks for your checking our machine tool.To give you a detailed quote,please choose your model in the specification chart,or tell me the max thickness,length,control demand
We will reply within 12 hours.
Please contact me via the follow email or skype:baide-sisi
