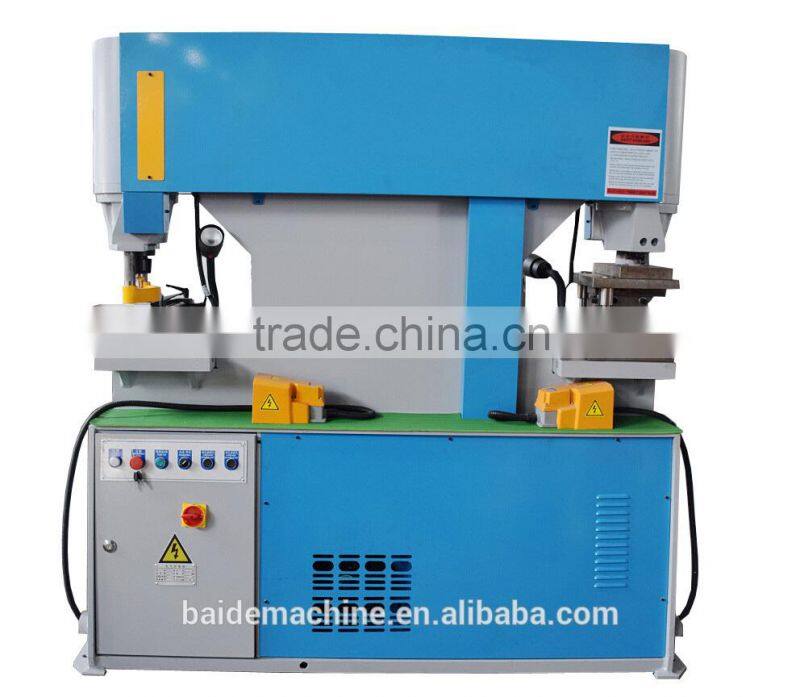

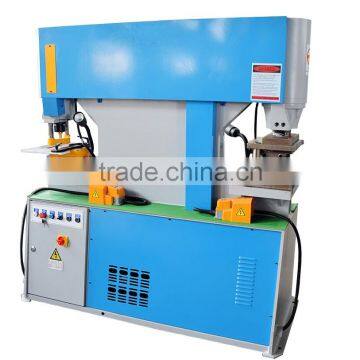

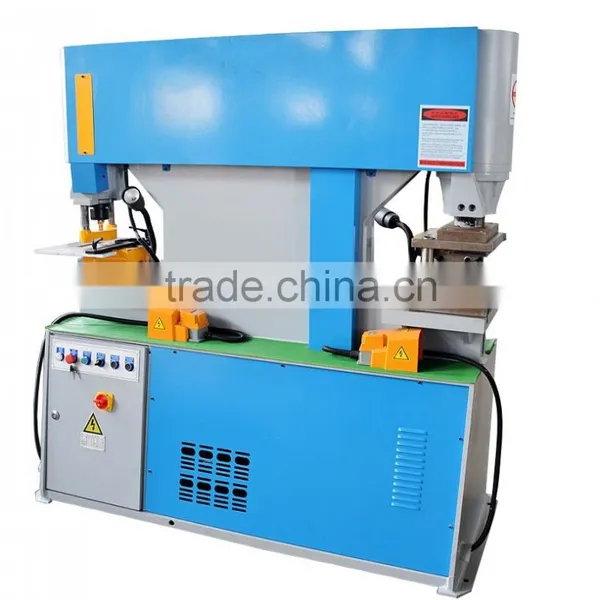

Q35Y Hydraulic double head steel punching machine,hydraulic aluminum sheet hole punching machine
Equipment performance and Uses
The machine can meet all kinds of carbon steel materials profiles plate punching(Angle steel, trapezoidal steel, isteel, channel steel, etc.) Cooperate with composite mould also can do any product stamping, cutting, forming.This machine adopts steel plate welded structure.Hydraulic transmission mechanism work stable and reliable, small size, light weight, good rigidity.Our machine is very easy for operators to replace die parts, machine workbench has front and back rear stopper, and use scale to count.
Main Technical Data
Item |
2-Q35Y-20 |
Pressure(T) |
90(90×2) |
Maximum cutting thickness (mm) |
20 |
Slide stroke(mm) |
80 |
Stroke frequency(times/min) |
10-22 |
Throat depth(mm) |
355 |
Punching thickness(mm) |
20 |
Max punching diameter(mm) |
30 |
Main motor power(KW) |
5.5 |
Dimensions(L*W*H)mm |
1860*800*1 |
superior configuration of our choice

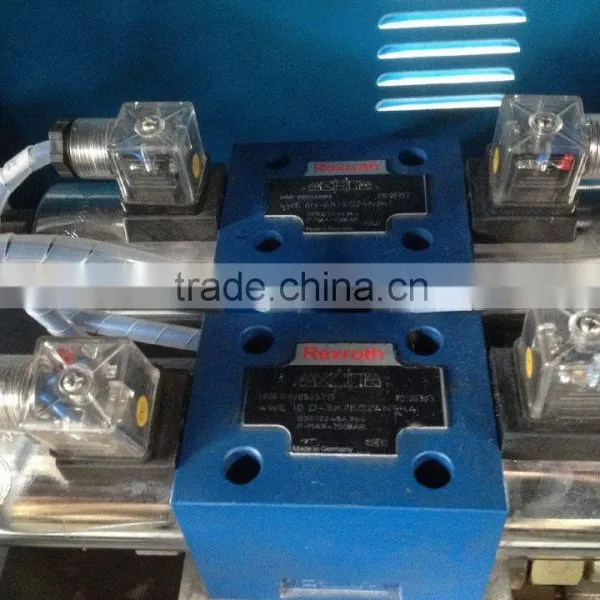

Hydraulic system configuration

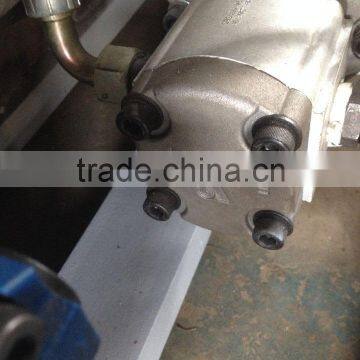

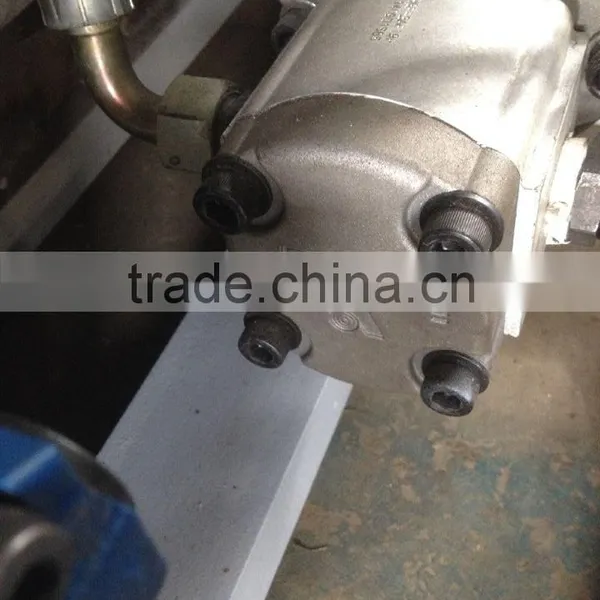

Equipment hydraulic system including twin pump and dual valve integrated system composition.Use low noise pump( Taiwan).Gear pump supply pressure oil to system , the system maximum working pressure is 20 mpa.

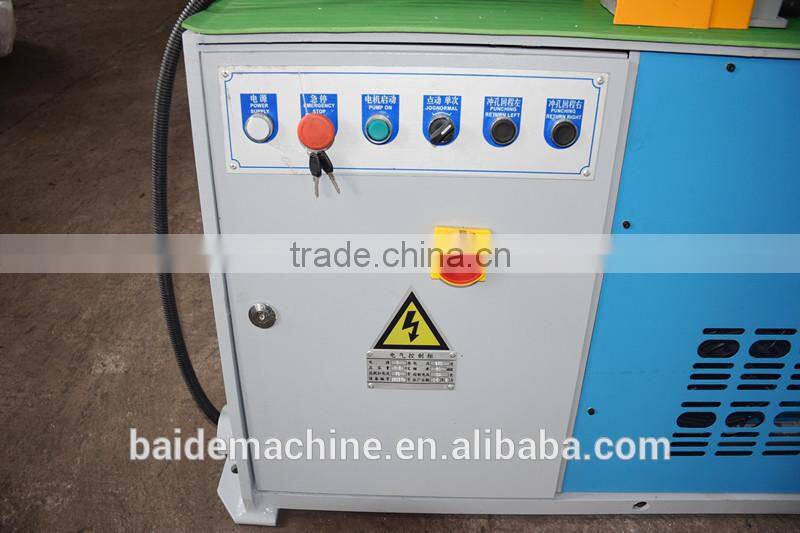

Electrical system
1.The machine electrical system adopts threephase ac 380 v, 50 hz .Control circuit power and lighting power supplied by controlling the transformer and isolation transformer to provide respectively.Hydraulic solenoid valve power provided by the control transformer after decompression 24 v.
The machine can inching and automatic working, Easy to operate, reasonable operation.
2.All electrical components adopts Schneider product.
performance requirement
1.Frame and blade are welded structure .Taking heat treatment of Eliminating stress.
2.Oil cylinder has good performance. famous brand seal.
3.The blade’s stroke can be adjusted with switch.
4.With functions of inching, single operation and easy to test,operate, maintenance

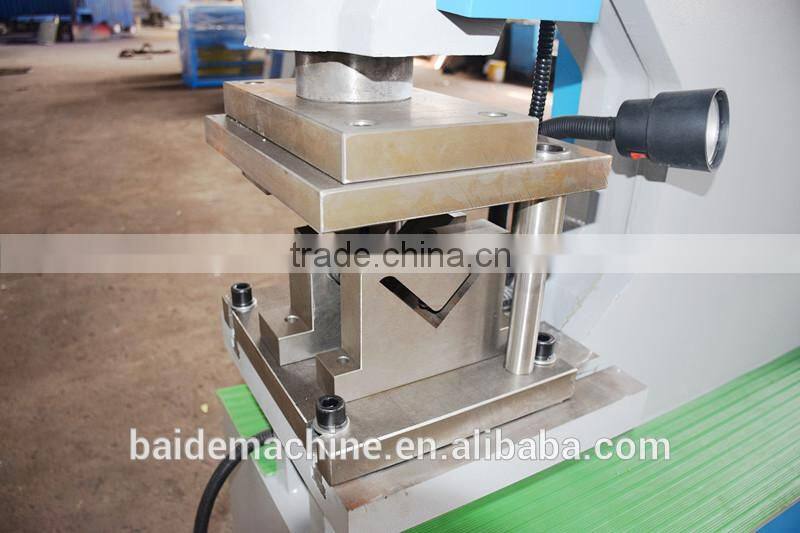

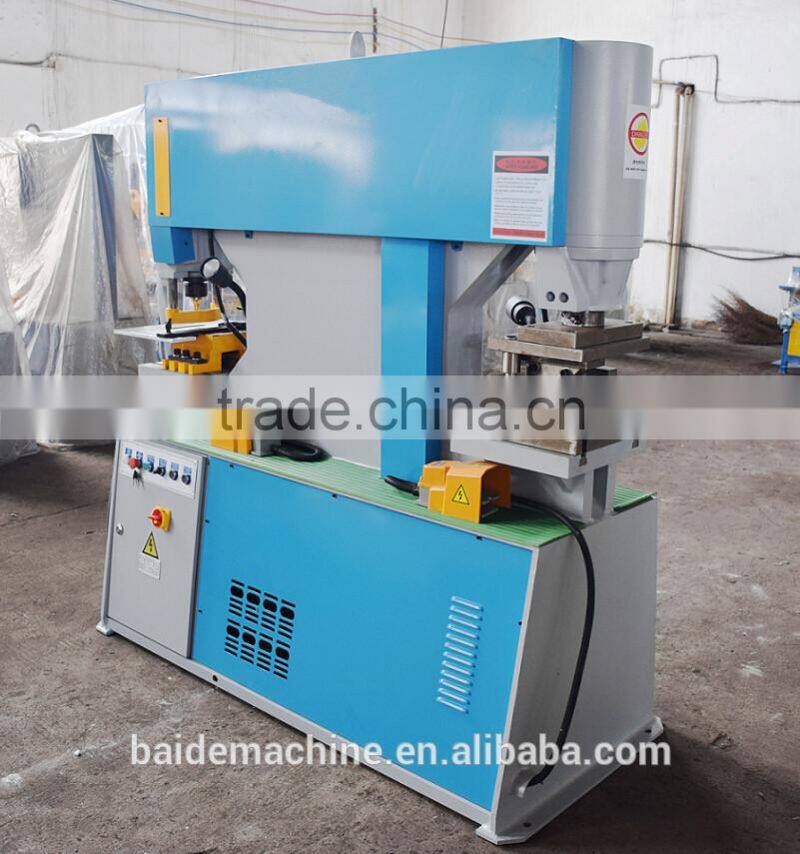

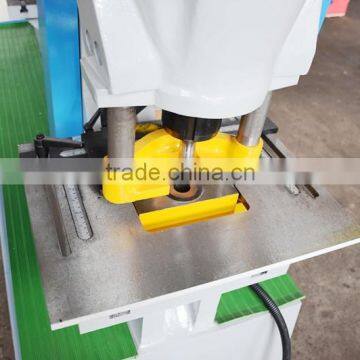

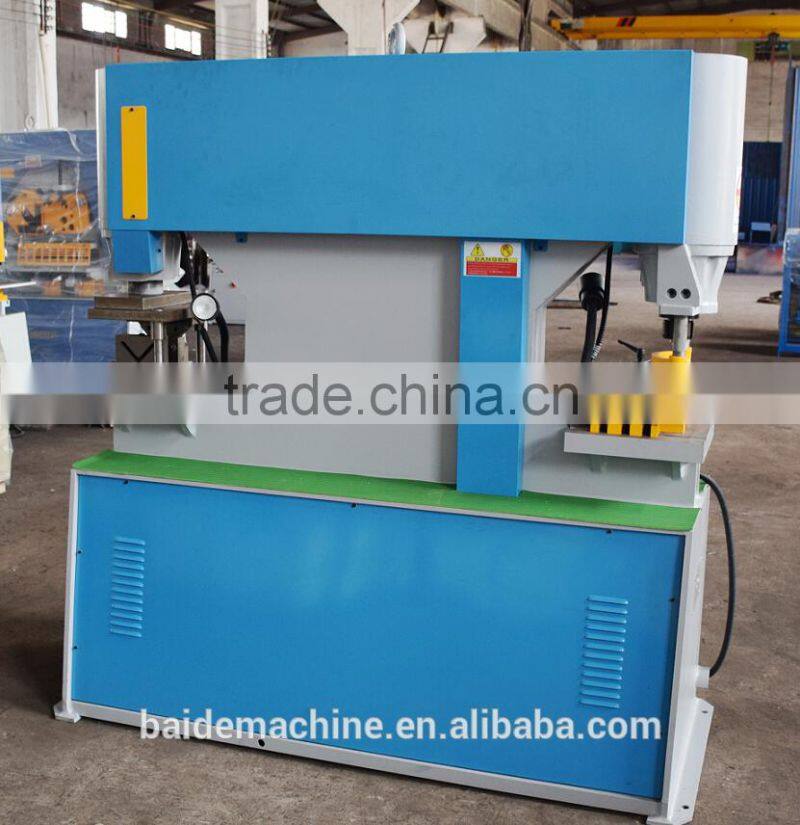

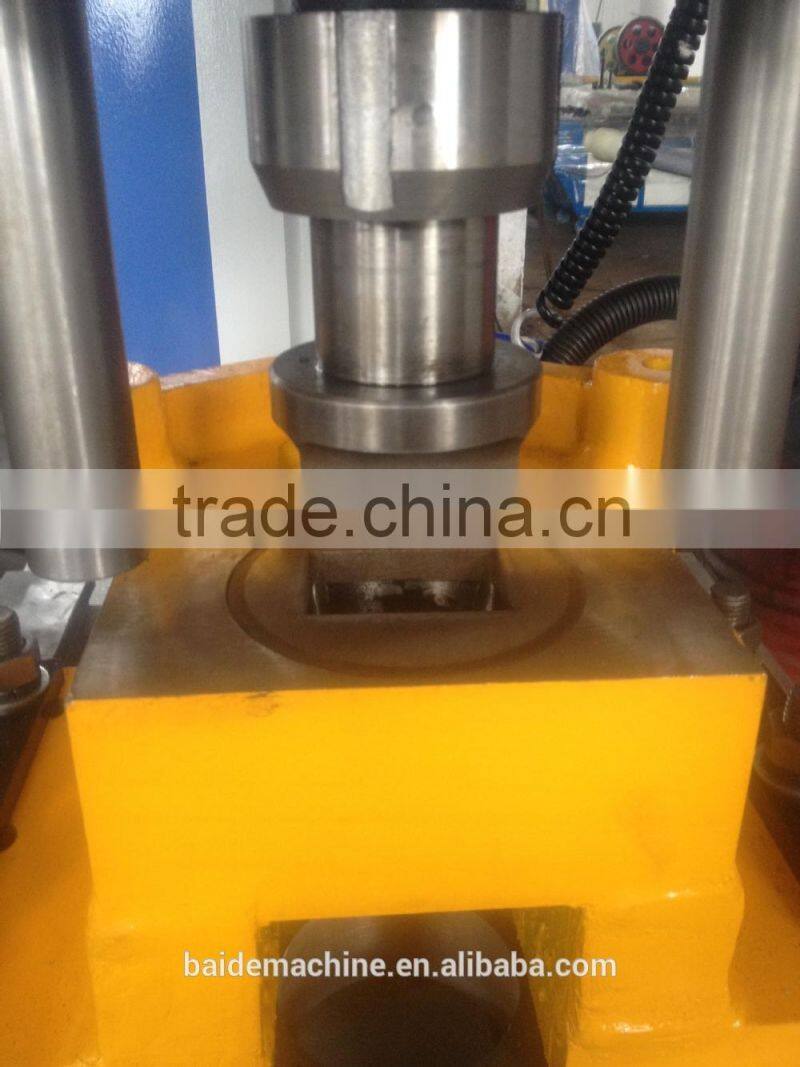

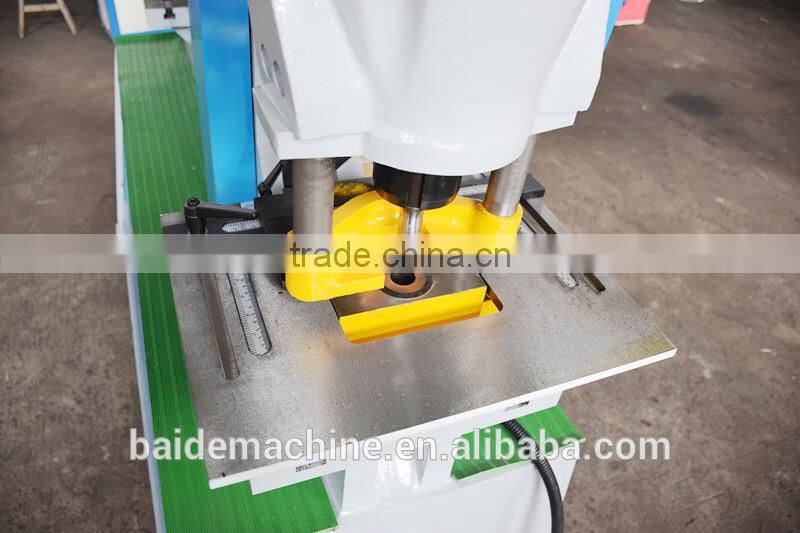

detail photos
1.All Baide machines have 12 months warranty.
2.During warranty period, under correct operation according to manual we offered, Except
quick-wear part , Baide borne all fees of possible machine repairing and replacement.
3.After sale, if needed, we will offer 3-5 days with our engineer service local to help with the
machinery lifting/ installation and teaching(Need charge, the charge will paid by buyer.
4.Usually our machine are well tested and adjusted to confirm the best easy using for our clients.
We supply 1 year Warranty and after 1 year, technical support will also be provided,Local support is also available
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: Bowang industry park,Maanshan City,China
Our factory is near Nanjing Lukou Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 11year, export proportion 50~60%.
Q4:How can i trust your company?
A:With 11-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Nanjing Lukou Airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears,iron work.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on
superior product and service.
contact us
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
