China supplier factory price Round Pipe Polishing Machine

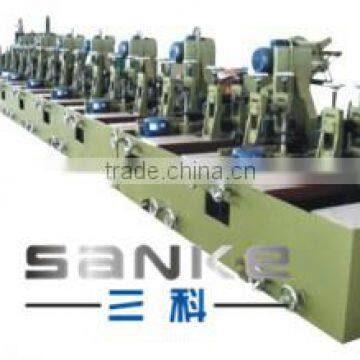

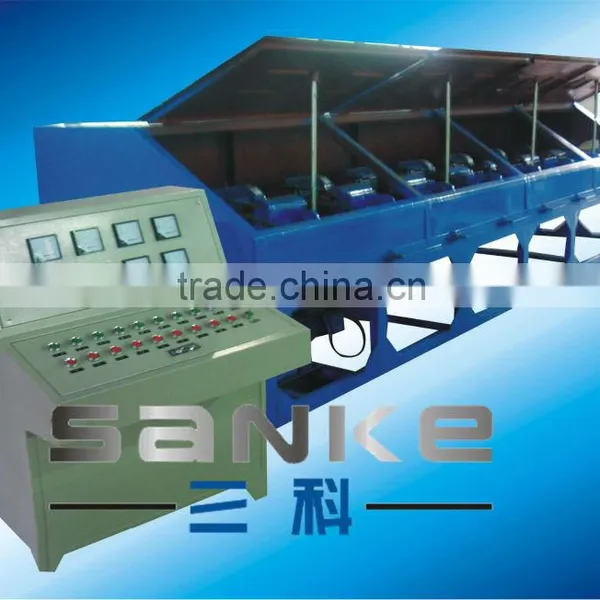

This machine is suitable for the external surface polishing of various metals with round cross sections. The machine consists of four parts, namely a main machine, a feeding device, a discharging device and a control system. The round pipe polishing machines can be divided into polishing machines (PG type) and enlarged polishing machines (DPG type) according to the number of polishing heads. The surface roughness of the material polished by the machine can reach Ra0.8μm
The polishing machine specifications:
1) Quantity of polishing head: 6-10-head
2) Diameter range of polished pipe: 12 ~ 76.2mm
3) Max. length of polished steel: 6m, can also produce according to your requirements
4) Charge speed of stainless steel pipe: 1 ~ 20m/min
5) Diameter of main polishing head's axis: 36mm
6) Motor power of polishing head: 4kW (5.5kW available as requested)
7) Charge motor power: 3kW
8) Rotational speed of polishing head: 2,900r/min
9) Outside diameter of accessory rag wheel:320mm
10) Roughness of polished surface: Ra0.8 - 0.4/min
Round pipe polishing machine:
| Model | PG6 | PG8 | PG10 | DPG6 | DPG8 | DPG10 |
| Pipe diameter(mm) | Φ12- Φ76.2 | Φ50.8- Φ114 | ||||
| Polishing pipe length(m) | Normal 6m(It can be lengthened appropriately according to customers' requirements) | |||||
| Number of polishing heads | 6 | 8 | 10 | 6 | 8 | 10 |
| Polishing head spindle diameter(mm) | Φ36 | |||||
| The feeding speed(m/min) | 1-20 | |||||
| Grinding head motor power(kw) | 4kw-4 | 5.5kw-4 | ||||
| Roughness after polished(μm) | 0.8 | |||||
| The diameter of polishing wheel equipped(mm) | Φ320 | |||||
Standard export package,safe for container transportation.
1.Send engineers to make the foundation and install the machine until it works out qualified pipes.
2.Provide skilled master to guide your workers to operate the machine,even work at your site if needed.
3.Provide the technical documents about machinery installation,maintenance,operation and so on.
4.Any problem during production process contact us directly.We will solve it as soon as possible.

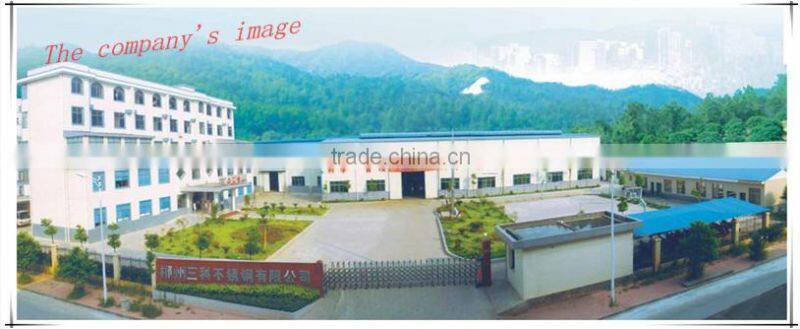

we have special technology on stainless steel making machine with more than 20 years design and reserch experience.We own two branch manufacturers engaged in stainless steel pipe-making machine, polishing machine, mould of the bar and shape for stainless steel, embossing machine and pipe end milling machine. With a complete production line, our welded stainless steel is processed using argon arc welding and bright solution heat treatment on line in oxide free atmosphere technology. We organize production in conformity with national and international standards.
Q:What is your company product range?
A:We are special in design and manufacture of pipe making machine,polishing machine,embossing machine and other corollary equipments.
Q:How to trust your company?
A:Because we are professional and enjoyed a good reputation both at home and abroad.
Q:How to guarantee your quality?
A:we have a strict quality management systerm to check every order carefully
Q:How can I get more details about products?A:We will offer you best price referring to your detail request,so please kindly inform us of the material,thickness,size(length,width)color and other requirements you prefer, special offer will be given. If you need any information, we can give you our suggestions.
Contact us to discuss more details :we are at ur serive all the time
