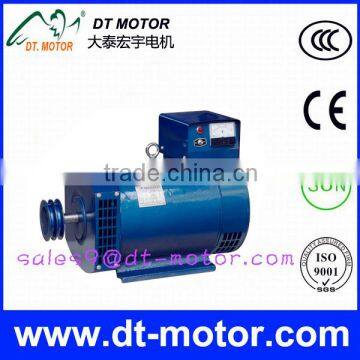

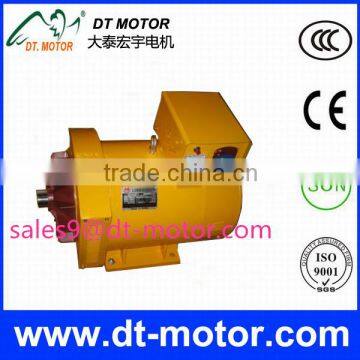

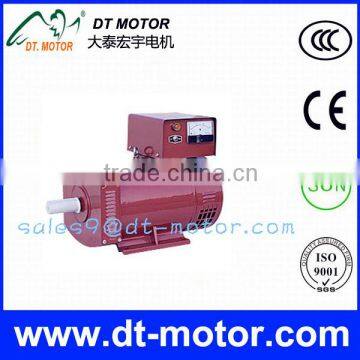

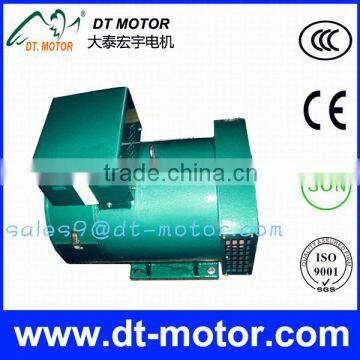

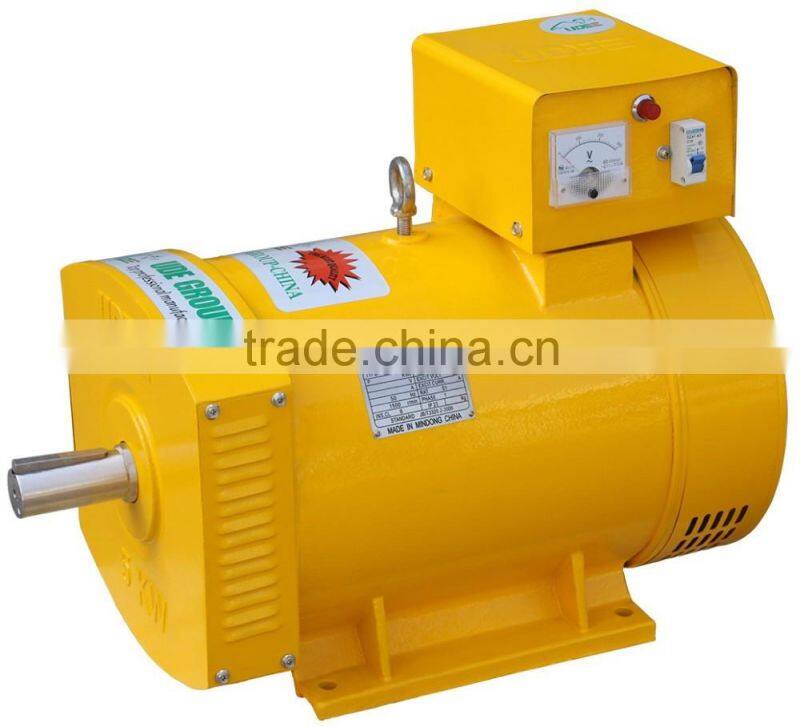

ST/STC 3kw~75kw high output generator
INTRODUCTION
ST series generators are mainly designed to serve as power generating unit of small capacity which supply electricity for lighting purpose in ships as well as for household electric devices used in towns or villages.
The construction of the generators is of drip-proof, salient pole rotating field self excitation and constant voltage type. The alternator inside is used with high quality electric magnetics and electrical materials. Stator insulation is class B. These generators are excellent in appearance, they are consolidate in construction and easy to maintain. Dimensions adopt IEC standard. They are suitable for Australia, Europe, America and other countries if the end covers model B.
The generator of this series completed with a matching internal combution engine is available as stationary or movable power station to supply a lighting or power resource for villages, towns, working sites and plasture lands. It is of three-phase with neutral point star connection. Characterized by a cable voltage of 400V, phase voltage of 230V, frequency of 50Hz, and power factor of 0.8(lagging). We can provide with 60Hz and other value generators upon the users' request.
Our Advance:
1.100% output
2.IEC standard
3.Factory price
4.Fast delivery
Products Features
1.Drif-proof, salient pole rotating field self-excitaltion and constant voltage type
2.Adopted IEC standard. The generators are of harmonic wave self-ex-citation constant voltage system and automatic voltage control excitation constant voltage system
3.Supplying electricity for lighting purpose in ships as well as for household electric devises used in town or village.
4.Excellent dynamic characteristic performance, convenient and reliable in operation
Operating Conditions:
1. Altitude: not exceed 1000m
2. Ambient temperature: -15°C~40 °C
3. Relative Air Humidity
Use:
The ST series generators are mainly designed to serve as power generating unit of small capacity which supply electricity for lighting purpose in ships as well as for household electric devices used in towns or villages.
Alternator Generator Technical Data:
| ST Series Single Phase A.C. Synchronous Generator / Alternator | ||||||||||||
| Model | Output (KW) | Current (A) | Voltage (V) | Power factor | Pole number | Speed r.p.m | N,W (kg) | G.W (kg) | Packing size | 20ft qty | ||
| Series connection | Parallel connection | Series connection | Parallel connection | |||||||||
| ST-2 | 2 | 8.7 | 17.4 | 230V | 115V | 1 | 4 | 1500/1800 | 43.5 | 46 | 52*29.5*46 | 425 |
| ST-3 | 3 | 13 | 26 | 48.5 | 51 | 52*29.5*46 | 425 | |||||
| ST-5 | 5 | 21.7 | 43.5 | 78 | 85 | 62*35*53 | 236 | |||||
| ST-7.5/8 | 7.5/8 | 32.6 | 65.2 | 88 | 107 | 62*35*53 | 236 | |||||
| ST-10 | 10 | 43.5 | 87 | 104.6 | 117 | 68*42*58 | 168 | |||||
| ST-12 | 12 | 52.2 | 104.4 | 117 | 128 | 68*42*58 | 168 | |||||
| ST-15 | 15 | 65.2 | 130.4 | 145 | 160 | 73*45*64 | 120 | |||||
| ST-20 | 20 | 87 | 174 | 167 | 180 | 73*45*64 | 120 | |||||
| ST-24 | 24 | 104 | 208 | 187 | 200 | 73*45*64 | 120 | |||||
| STC Series Three Phase A.C. Synchronous Generator / Alternator | ||||||||||||
| Mode; | Output (kw) | Output (kva) | Voltage (v) | Current (A) | Pole number | Power factor | Speed r.p.m | N.W (kg) | G.M (kg) | Packing size | 20ft qty | Frequency(Hz) |
| STC-3 | 3 | 3.8 | 400 | 5.4 | 4 | 0.8 | 1500/1800 | 50 | 55 | 51*30*45 | 425 | 50/60 |
| STC-5 | 5 | 6.3 | 9 | 81 | 95.3 | 62*35*53 | 236 | |||||
| STC-8 | 7.5/8 | 9.4 | 13.5 | 84 | 98.5 | 62*35*53 | 236 | |||||
| STC-10 | 10 | 12.5 | 18.1 | 104.6 | 115 | 68*42*58 | 168 | |||||
| STC-12 | 12 | 15 | 21.7 | 117 | 125 | 68*42*58 | 168 | |||||
| STC-15 | 15 | 18.8 | 27.1 | 154 | 160 | 73*45*64 | 120 | |||||
| STC-20 | 20 | 25 | 36.1 | 167 | 180 | 73*45*64 | 120 | |||||
| STC-24 | 24 | 30 | 43.3 | 187 | 200 | 73*45*64 | 120 | |||||
| STC-30 | 30 | 37.5 | 54.1 | 245 | 260 | 92*55*72 | 72 | |||||
| STC-40 | 40 | 50 | 72.2 | 265 | 280 | 92*55*72 | 72 | |||||
| STC-50 | 50 | 62.5 | 90.2 | 305 | 320 | 92*55*72 | 72 | |||||
