Home > Products > ST & STC ALTERNATOR GENERATOR > Wholesale Price SD/SDC Series A.C Welding&Generating Alternator
Wholesale Price SD/SDC Series A.C Welding&Generating Alternator
USD $50 - $5,000
/ Piece
50 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- Fuzhou China
- T/T Credit Card
You May Like
Product Details
Place of Origin: | Fujian, China | Brand Name: | DT | Model Number: | SD/SDC |
Output Type: | Other, A.C Single-phase and Three-phase | Speed: | 1500 RPM | Frequency: | 50/60HZ |
Rated Power: | 3-15KW | Rated Voltage: | 400V/230V | Rated Current: | 5-65A |
Product Description
Product Description

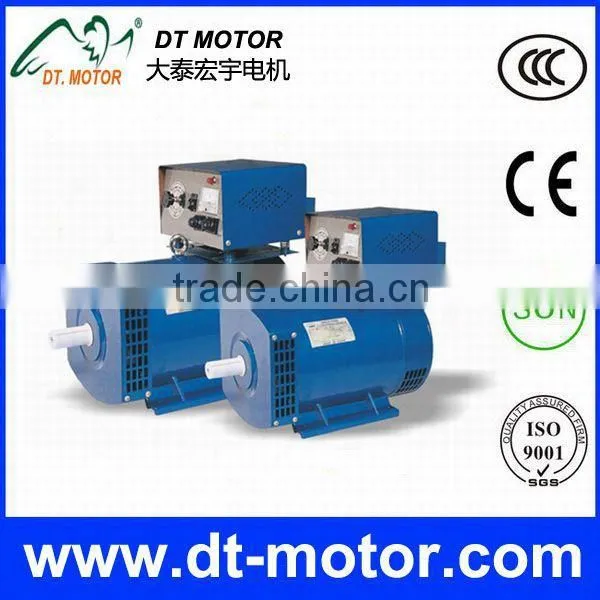

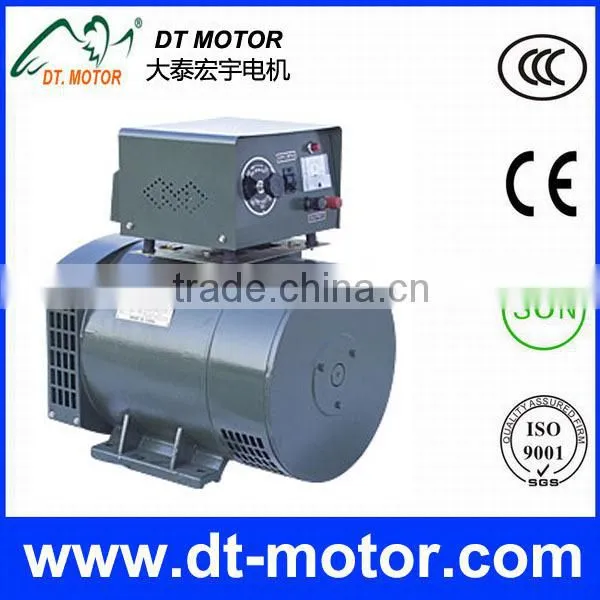

welding generator
1) can serve both as welding and as illumination simultaneously
2) stable power
SD/SDC series generating and welding dual-use generators are suitable to be driven by an internal combustion engine.They can be used as mobile or stable power supply unit,which is suitable for using in town,countryside,boats,workshops for lighting or welding purpose.This series generators can serve as lighting or as welding individually,further more,they can serve both as welding and as illumination simultaneously.IP21,Insulation class B.
Model | Single phase 230V 50Hz/1500r/min cosφ=1.0 | |||||||
Rated output | Rated Voltage (V) | Rated Current (A) | Welding Voltage under Unload (V) | Welding Current (A) | Continuous Rate under Load (%) | Current adjustment Range for welding (A) | ||
KW | KVA | |||||||
SD-5 | 5 | 5 | 230 | 21.7 | 80 | 160 | 40 | 70-200 |
SD-7.5 | 8 | 8 | 230 | 32.6 | 80 | 200 | 40 | 80-240 |
SD-10 | 10 | 10 | 230 | 43.5 | 80 | 230 | 40 | 100-300 |
SD-12 | 12 | 12 | 230 | 52.2 | 80 | 300 | 40 | 140-320 |
Three phase 400V 50Hz/1500r/min cosφ=0.8 | ||||||||
SDC-5 | 5 | 6.3 | 400 | 9 | 80 | 140 | 40 | 60-160 |
SDC-7.5 | 8 | 10 | 400 | 13.5 | 80 | 180 | 40 | 70-200 |
SDC-10 | 10 | 12.5 | 400 | 18.1 | 80 | 225 | 40 | 80-280 |
SDC-12 | 12 | 15 | 400 | 21.7 | 80 | 280 | 40 | 100-300 |

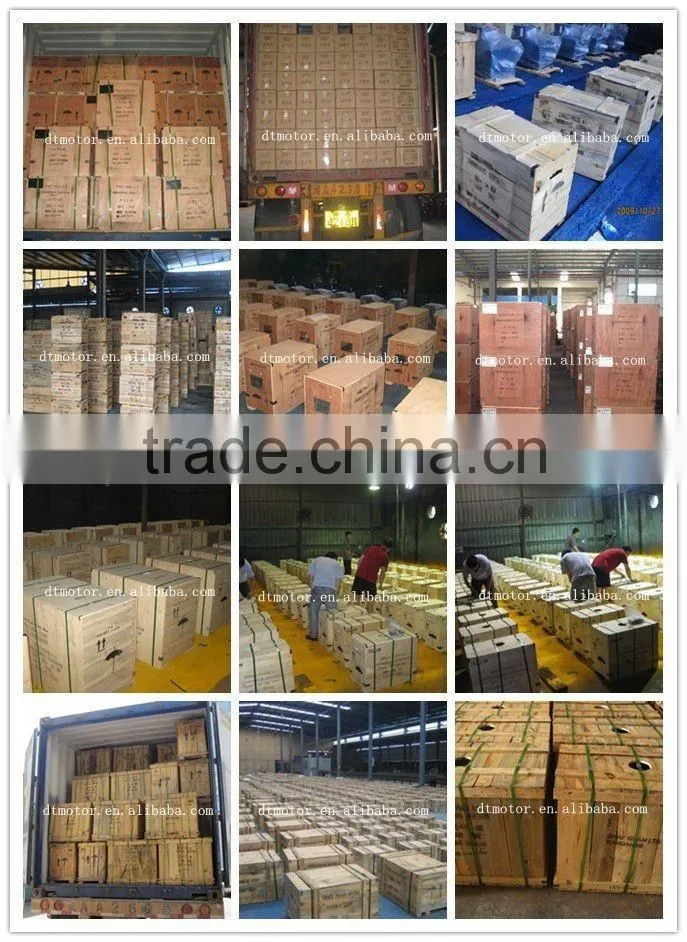

Packaging & Shipping

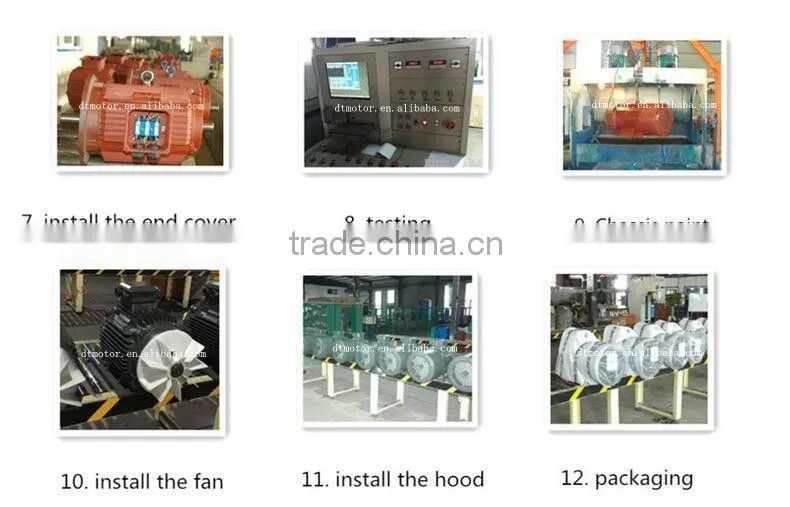

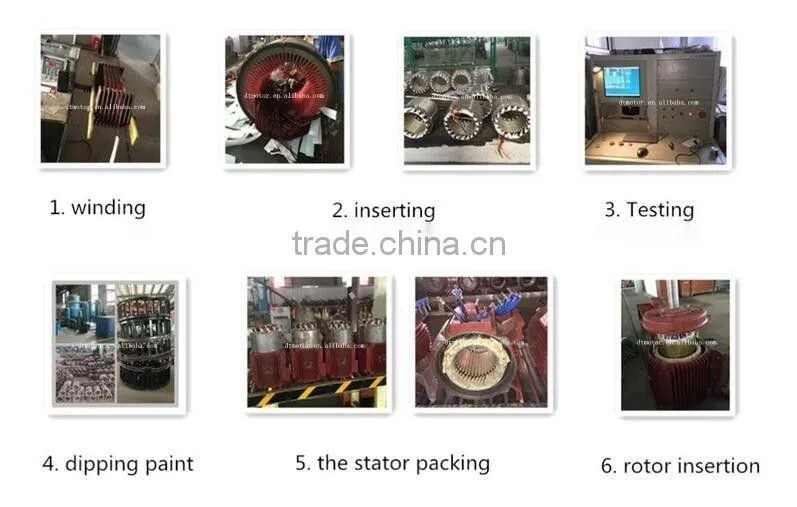

Production Flow

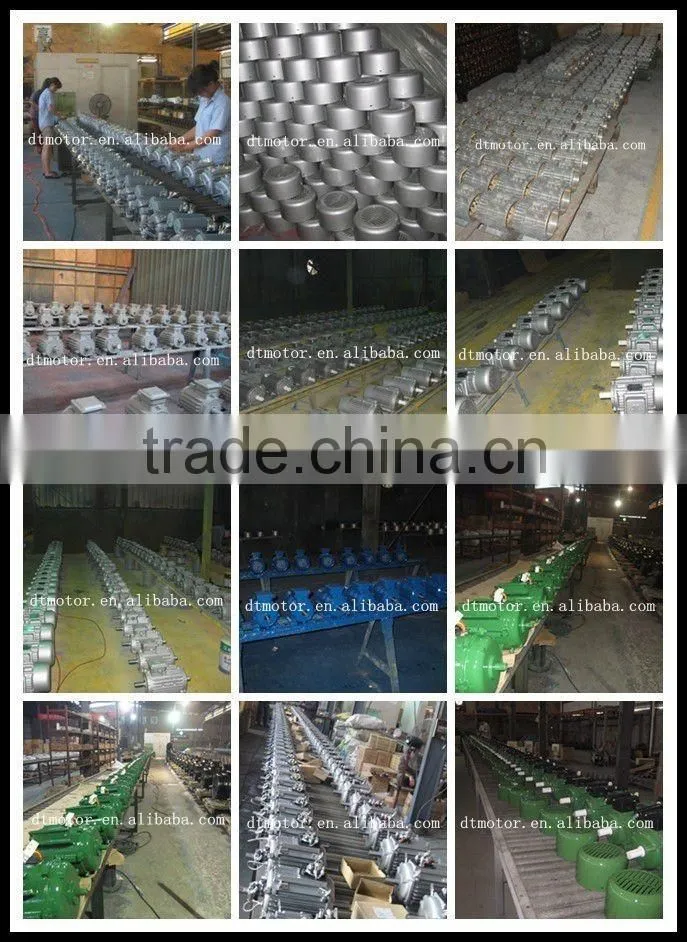

Workshop

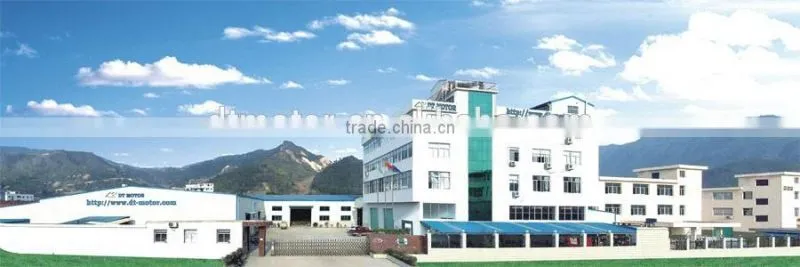

Company Information
Our Services
FAQ

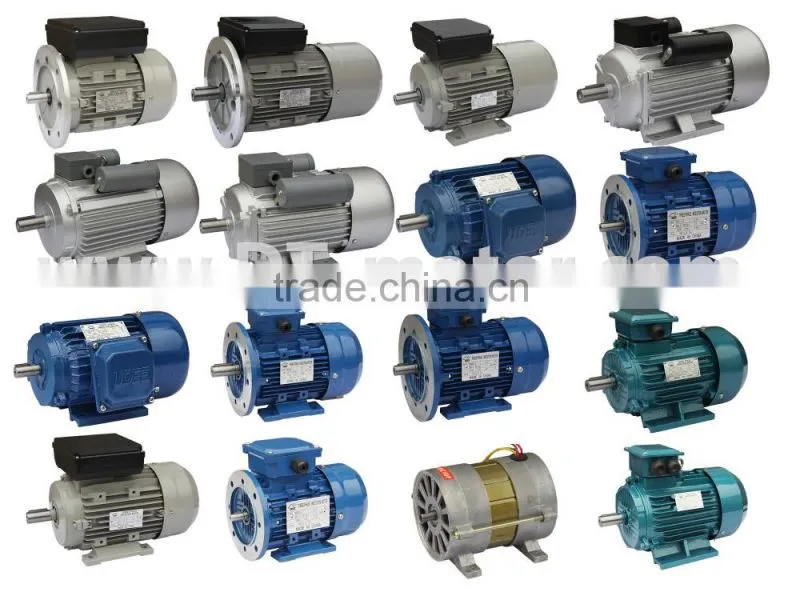

Hot Selling Items
Contact Us
- Fujian DT Electrical Machine Co., Ltd.
- Contact nameLynn Huang
- Phone0086-593-6883838
- AddressNo. 3, Taipingyang Road, Qinxiyang Ind. Zone, Chengyang Township, Fu'an
