Help CenterHigh Qualitywax Content of Asphalt Tester
Related Products
-
High Quality Petroleum Bitumen Component TesterUS$ 2,000 - 8,100MOQ: 1 Set -
High Quality Asphalt Rolling Thin Film OvenUS$ 2,000 - 5,700MOQ: 1 Set
-
Ash Content Test Equipment ;ash Content Testing ;ash Content TesterUS$ 1,000 - 2,700MOQ: 1 Set
-
Automatic Bitumen Needle Penetration TesterUS$ 100 - 9,700MOQ: 1 Set
-
Asphalt Brittle Point TesterUS$ 100 - 1,100MOQ: 1 Set
Specifications
1.automatically test2.easy to operate
3.we are manufacturer
4.high precision
Technical Specifications

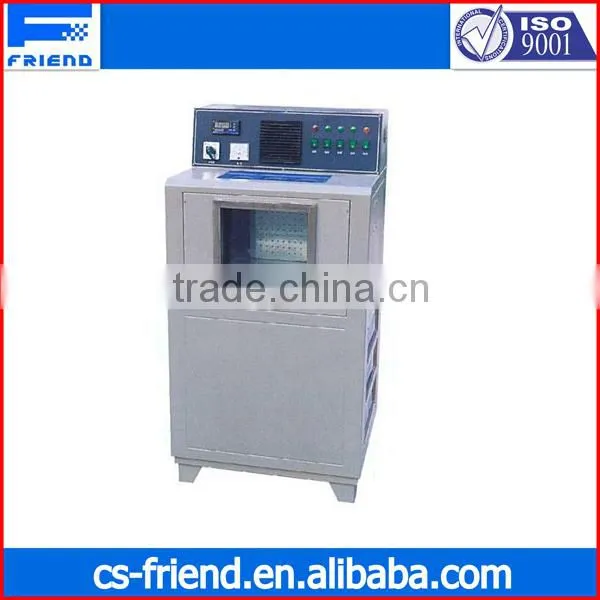

Bitumen wax content analyzer is based on the national industry standard SH/T0425 “Determination of
wax content of asphalt” and the national industry standard JTJ052 “Highway asphalt andasphalt testin
g procedures” andT0615 “Asphalt wax content test,” The requirements of The development The.Appli
cable to The determination of The wax content of petroleum asphalt, crude oil vacuum residue oil pro
duced bitumen wax content andwax content of asphalt road
Function Features
1, bitumen wax content analyzer measuredis designed and made as per distillation Cooling method wax content of The sample, The instrument is divided into two parts: The upper part contains a stirring motor, Temperature sensors, gas distributor, specimen containers hook racks, lower half portion of Cooling method andfiltering
2, bitumen wax content analyzer specially designed gas distributor, specimen containers hook rack, full account of The use of professional equipment, instruments used are more reasonable andmore convenient
3, bitumen wax content analyzer thermostatic bath with large caliber Dewar, good insulation properties, The observation window fogging is not easy to observe
4, bitumen wax content analyzer Temperature controller with High precision temperature display clear, Temperature control point set up to facilitate The digital Temperature controller, precise Temperature control, Cooling method quickly, easy to operate
5, bitumen wax content analyzer for The floor structure, each time for three samples simultaneously analyzing The test, trial andHigh efficiency
| Packaging Detail: | standard export case |
| Delivery Detail: | 20 working days after receipt of the advance payment. |
warranty: 12 month
Friend has always adhere to the alliance strategies with customer unit development, and integrate enterprise resource advantages,with the pursuit of excellence in product quality, innovative and pragmatic attitude to customer needs and to provide professional pre-sales,
after-sales service.
Asphalt series
|
FDL-0131 |
FDL-0171 |
FDL-0231 |
FDL-0271 |
FDL-0301 |
FDL-0331 |
Standards |
GB/T4507,ASTM D36,T0606 |
GB/T4508 T0605 |
GB/T4508 T0605 |
T0604 ,GB/T4509, ASTMD5 |
GB/T4509 ,T0604 |
|
Power supply |
AC220V / 50Hz |
AC220V / 50Hz |
AC220V / 50Hz |
AC220V / 50Hz |
AC220V / 50Hz |
AC220V / 50Hz |
temperature range |
5.0 ℃ ~ 90 |
32 ℃ ~ + 160 ℃,+ 5 ℃ ~ + 80 ℃ |
5 ~ 49 ℃, adjustable |
5 ℃ ~ 50 ℃ |
25±0.1℃ |
25 ± 0.1 ℃ |
Temperature Resolution |
0.01 ℃ |
0.01 ℃ |
|
|
|
0.1 Penetration |
heating power |
800W |
|
3000W |
|
220W |
200W |
beaker effective volume |
1000ml |
|
|
|
|
|
relative humidity |
≤85% |
≤85% |
|
|
|
|
Power consumption |
less than 850W |
less than 750W |
less than 4100W |
|
|
|
Dimensions |
|
360*280*490 |
|
|
|
|
measurement range |
|
|
1.5m (± 10mm) |
2.0m (± 10mm),0 ~ 300N |
500 Penetration |
0 to 600 penetration |
|
Automatic asphalt softening point tester |
Asphalt extend Tester |
Automatic extension of asphalt tester |
Asphalt penetration tester |
||
FDL-0401 |
FDL-0431 |
FDL-0501 |
FDL-0601 |
FDL-0631 |
FDL-0701 |
|
Standards |
GB/T5304 |
SH/T0736 |
SH/T0425, T0615 |
T0613, GB/T4501 |
T0613 ,GB/T4501 |
SH/T0600 |
Power supply |
AC 220V ± 10%, 50Hz |
|||||
temperature range |
163 ℃ ± 0.5 ℃ |
5 ~ 50 ℃ |
-10 ℃ ~ + 30 ℃ |
-30 ~ 100 ℃ |
-27 ℃ ~ 25 ℃ |
room temperature ~ -75 ± 1 ℃ |
Temperature Resolution |
± 0.5 ℃ |
± 0.5 ℃ |
± 0.5 ℃ |
1 ℃ |
± 0.5 ℃ |
|
heating power |
2.5kw |
2.4kW |
700W |
|
|
|
beaker effective volume |
|
|
|
|
|
|
relative humidity |
≤85% |
≤85% |
≤85% |
|
≤85% |
|
Power consumption |
|
less than 2.6kW |
less than 1800W |
|
less than 450W |
|
Dimensions |
|
|
|
|
|
|
|
Asphalt rotating thin film oven (82) |
Asphalt rotating thin film oven (85) |
Bitumen wax content analyzer |
Asphalt brittle point tester |
Automatic asphalt brittle point tester |
Asphalt crack point tester |
Since the establish of Friend,it uphold the Western industrial civilization "artisan spirit" as the ideas, and constantly improve our products, and continuously improveour processes to meet market demand, and strive to create a new management models and new products to meet customer growing needs.
