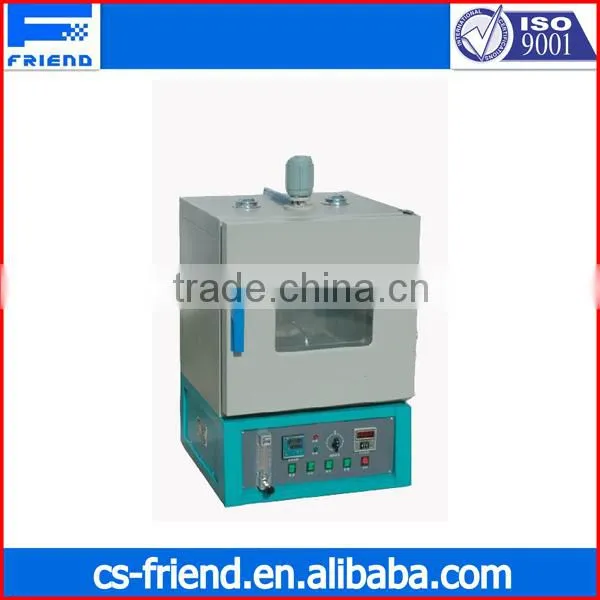

Help CenterHigh Quality Asphalt Rolling Thin Film Oven
Related Products
-
Ash Content Test Equipment ;ash Content Testing ;ash Content TesterUS$ 1,000 - 2,700MOQ: 1 Set -
Automatic Bitumen Needle Penetration TesterUS$ 100 - 9,700MOQ: 1 Set
-
Asphalt Brittle Point TesterUS$ 100 - 1,100MOQ: 1 Set
-
Benzene Products Distillation TesterUS$ 800 - 5,000MOQ: 1 Set
-
Automatic Benzene Distillation ApparatusUS$ 800 - 5,000MOQ: 1 Set
Specifications
1.automatically test2.easy to operate
3.we are manufacturer
4.high precision
Scope
asphalt rotating thin film oven is in accordance with the national standard GB / T5304, the industry standard JTJ052-2000 "highway asphalt and asphalt test procedures" in T0609-1993 "asphalt film heating test" requirements designed and manufactured for the determination of the road asphalt mass loss after heating the film and, if necessary, after the determination of bitumen film heating, changes in penetration bitumen residue, softening point, brittle point and ductility properties such as to assess anti-aging properties of asphalt.
Features
1.asphalt rotating thin film oven with integrated design, easy operation and maintenance
2, asphalt rotating thin film oven temperature control system with PID temperature control, high precision, stable
3, asphalt rotating thin film oven using precision conventional systems, precise speed control
4, asphalt rotating thin film oven can also do four samples, easy to operate parallel experiments
Technical parameters
1 Power supply: AC 220V ± 10%, 50Hz;
2, Rated power: 2.5kw;
3, the studio temperature: 163 ℃ ± 0.5 ℃;
4, temperature control accuracy: ± 0.5 ℃;
5, the rotary speed: 5.5r / min ± 1r / min;
6, number of samples: 4;
7, Studio Size: 450 × 450 × 510mm3;
8, ambient temperature: 5-50 ℃;
9, relative humidity: ≤85%
| Packaging Detail: | standard wooden case |
| Delivery Detail: | 10 working days after receipt of the advance payment. |
warranty: 12 month
Friend has always adhere to the alliance strategies with customer unit development, and integrate enterprise resource advantages,with the pursuit of excellence in product quality, innovative and pragmatic attitude to customer needs and to provide professional pre-sales,
after-sales service.
welcome to our factory !
Since the establish of Friend,it uphold the Western industrial civilization "artisan spirit" as the ideas, and constantly improve our products, and continuously improveour processes to meet market demand, and strive to create a new management models and new products to meet customer growing needs.
Asphalt series
|
FDL-0131 |
FDL-0171 |
FDL-0231 |
FDL-0271 |
FDL-0301 |
FDL-0331 |
Standards |
GB/T4507,ASTM D36,T0606 |
GB/T4508 T0605 |
GB/T4508 T0605 |
T0604 ,GB/T4509, ASTMD5 |
GB/T4509 ,T0604 |
|
Power supply |
AC220V / 50Hz |
AC220V / 50Hz |
AC220V / 50Hz |
AC220V / 50Hz |
AC220V / 50Hz |
AC220V / 50Hz |
temperature range |
5.0 ℃ ~ 90 |
32 ℃ ~ + 160 ℃,+ 5 ℃ ~ + 80 ℃ |
5 ~ 49 ℃, adjustable |
5 ℃ ~ 50 ℃ |
25±0.1℃ |
25 ± 0.1 ℃ |
Temperature Resolution |
0.01 ℃ |
0.01 ℃ |
|
|
|
0.1 Penetration |
heating power |
800W |
|
3000W |
|
220W |
200W |
beaker effective volume |
1000ml |
|
|
|
|
|
relative humidity |
≤85% |
≤85% |
|
|
|
|
Power consumption |
less than 850W |
less than 750W |
less than 4100W |
|
|
|
Dimensions |
|
360*280*490 |
|
|
|
|
measurement range |
|
|
1.5m (± 10mm) |
2.0m (± 10mm),0 ~ 300N |
500 Penetration |
0 to 600 penetration |
|
Automatic asphalt softening point tester |
Asphalt extend Tester |
Automatic extension of asphalt tester |
Asphalt penetration tester |
||
FDL-0401 |
FDL-0431 |
FDL-0501 |
FDL-0601 |
FDL-0631 |
FDL-0701 |
|
Standards |
GB/T5304 |
SH/T0736 |
SH/T0425, T0615 |
T0613, GB/T4501 |
T0613 ,GB/T4501 |
SH/T0600 |
Power supply |
AC 220V ± 10%, 50Hz |
|||||
temperature range |
163 ℃ ± 0.5 ℃ |
5 ~ 50 ℃ |
-10 ℃ ~ + 30 ℃ |
-30 ~ 100 ℃ |
-27 ℃ ~ 25 ℃ |
room temperature ~ -75 ± 1 ℃ |
Temperature Resolution |
± 0.5 ℃ |
± 0.5 ℃ |
± 0.5 ℃ |
1 ℃ |
± 0.5 ℃ |
|
heating power |
2.5kw |
2.4kW |
700W |
|
|
|
beaker effective volume |
|
|
|
|
|
|
relative humidity |
≤85% |
≤85% |
≤85% |
|
≤85% |
|
Power consumption |
|
less than 2.6kW |
less than 1800W |
|
less than 450W |
|
Dimensions |
|
|
|
|
|
|
|
Asphalt rotating thin film oven (82) |
Asphalt rotating thin film oven (85) |
Bitumen wax content analyzer |
Asphalt brittle point tester |
Automatic asphalt brittle point tester |
Asphalt crack point tester |
1. What's the warranty?
Normally 12 months
2.Does the power supply can customized?
YES ,if you need customized power supply,pls tell us when you put the order.
3.What's the production time?
Usually 20 days for production, some equipments need extra time to debug.
4.What's the Dlivery method ?
Light-weight cargo is usually by express , Air transport and sea shipping is acceptable (provide with safty packing)
5.What's the delivery time?
According to different method and country , express will be 6~15 days
6. How to install and operate?
According to each instruction manual which sent with equipment. ( We also provide after-sale technical support)
7.What's the payment term?
Usually we do 30%TT deposit ,70%TT balance before shipping.LC,Western Union,MoneyGram are acceptable.
