Specifications
1 large diameter stainless steel pipe2 OD 114.3 - 508mm
3 WT: 5~50mm
4 Large diameter

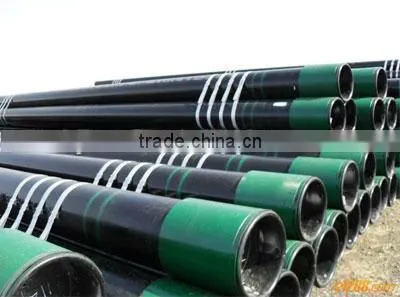

Large diameter pipes
1. On sale seamless API-5CT Casing pipe, Tubing pipe, Coupling, OCTG, Oil pipe.
2. Our factory manufacture Casing pipe, Tubing pipe, OCTG, Oil pipe for oilfield: According to API SPEC 5CT.
3. Steel grade: J55, K55, L80, N80, C95, P110
4 Grade:J55/K55/N80/L80/C90/P110
5 OD 114.3- 508mm
6 WT: 5.0~50.0mm
7 Length range: R1, R2, R3
8.Thread type .BC LC SC HSM-1 HSM-2
20" 106,5LB/FT J-55 BTC CASING Collapse Pressure:770psi
Joint Strenght:1596x1000 lbs
as well as the below specifications
Outer Diameter |
weight |
Grade |
Thread |
Length |
|
||
in |
mm |
kg/m |
lb/ft |
|
|||
4 1/2" |
114.3 |
14.14-22.47 |
9.50-15.10 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
| |||||||
5" |
127 |
17.11-35.86 |
11.50-24.10 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
| |||||||
5 1/2" |
139.7 |
20.83-34.23 |
14.00-23.00 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
| |||||||
6 5/8" |
168.28 |
29.76-35.72 |
20.00-24.00 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
| |||||||
7" |
177.8 |
25.30-56.55 |
17.00-38.00 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
| |||||||
7 5/8" |
193.68 |
35.72-63.69 |
24.00-42.80 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
| |||||||
8 5/8" |
219.08 |
35.72-72.92 |
24.00-49.00 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
| |||||||
9 5/8" |
244.48 |
48.07-86.91 |
32.30-58.40 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
| |||||||
10 3/4" |
273.05 |
48.73-97.77 |
32.75-65.70 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
| |||||||
11 3/4" |
298.45 |
62.50-89.29 |
42.00-60.00 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
| |||||||
13 3/8" |
339.72 |
71.43-107.15 |
48.00-72.00 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
certificate
