Specifications
1.OD: 13 - 127 mm2.Grade:10#,20#,45#,
3.Produvct naem:P22 BOILER TUBE
astm a333 gr6 seamless steel pipe (high pressure boiler tube)
carbon steel pipes seamless boiler tubes OD:13 - 127mm WT:2-20mm
1) Cold drawn seamless steel tube/pipe
2) Standard: ASTM A179,A192,A210,A213,DIN17175 ASMEA333
3) Grade: A179,A192,A210, ST52, ST35.8 GR6 are available
3) Max length:12m
4) Package:bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes
(Surface treatment:Oiled, black painted, shot blasted, hot dipped galvanized or phosphate coating)
5) Third party inspection: BV, SGS, Lloyds
6) Manufacturing method: cold-drawn
7) Marking,oil-coating,bevelled ends, end plastic caps to be confirmed,
Mechanical properties :
Item no | Grade
| Mechanical properties | ||||
TensileStrength Rm Mpa | Yield strength Rel Mpa | Elongation a% | % | Aku2J impact | ||
Not lower than | ||||||
1 | 10 | 335~490 | 205 | 24 | - | -- |
2 | 20 | 410~550 | 245 | 24 | -- | 39 |
3 | 16Mn | 490~670 | 320 | 21 | -- | 47 |
4 | 15MnV | 510~690 | 350 | 19 | ---- | 47 |
5 | 12CrMo | 410~560 | 205 | 21 | -- | 55 |
6 | 15CrMo | 440~640 | 235 | 21 | -- | 47 |
7 | 12Cr2Mo | 450~640 | 280 | 20 | -- | 38 |
8 | 1Cr5Mo | 390~590 | 195 | 22 | -- | 94 |

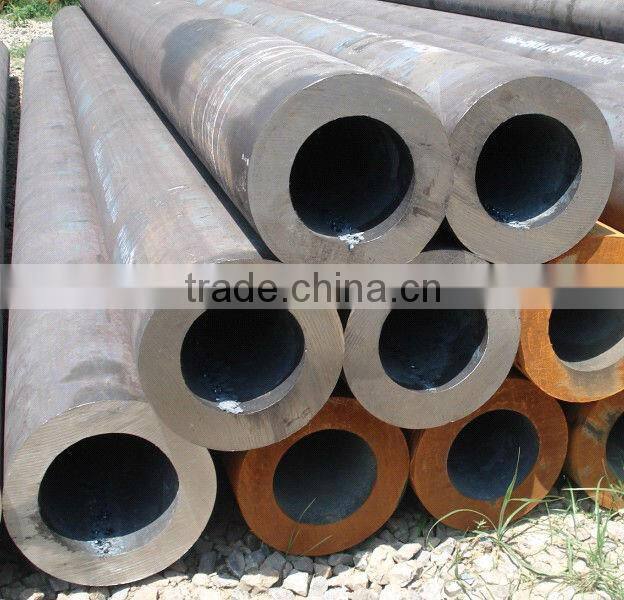

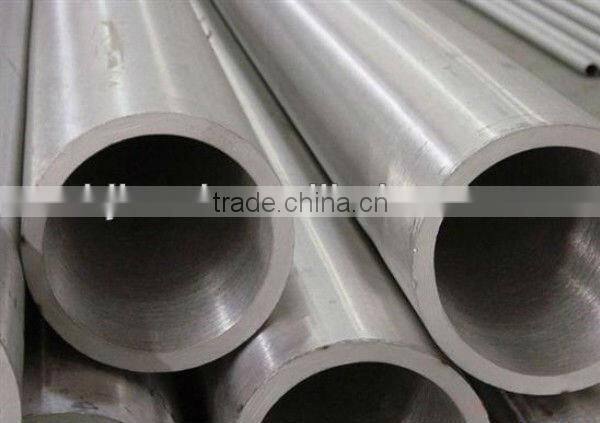

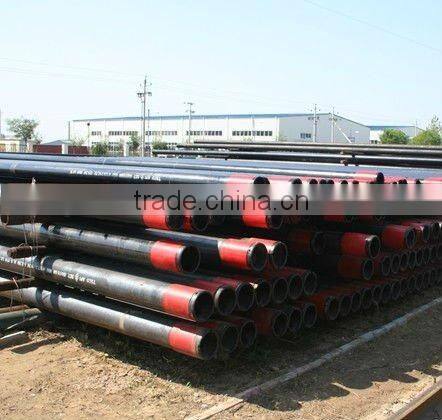

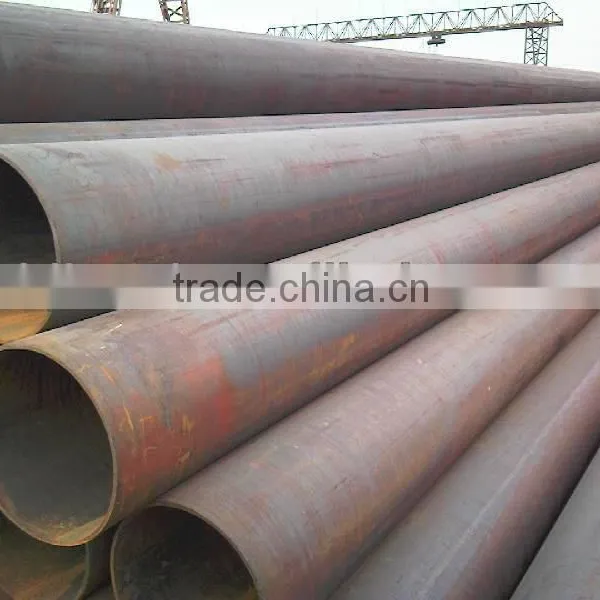

products pics↓

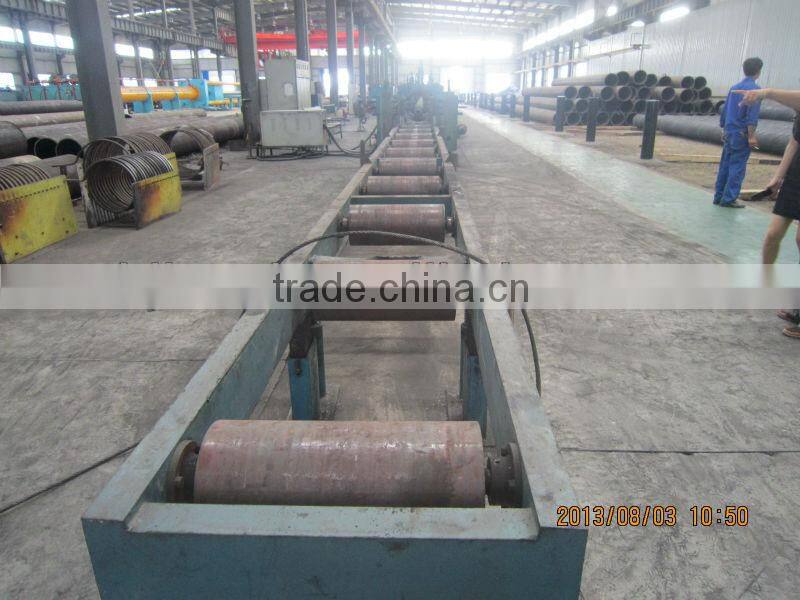

Factory and process pics:↓
loading:↓
Packing pics:↓
Contact ID:↓
We are endevouring to be service you at any time, your trial order will be cherished and we will offer the base price for the first time to show our sincere. Pls contact us via the above contact way.
Regards
Ms Magi
